7.2. Adding an AVB/TSN Switch
An AVB/TSN switch is only required if more than one IP Audio device is being used.

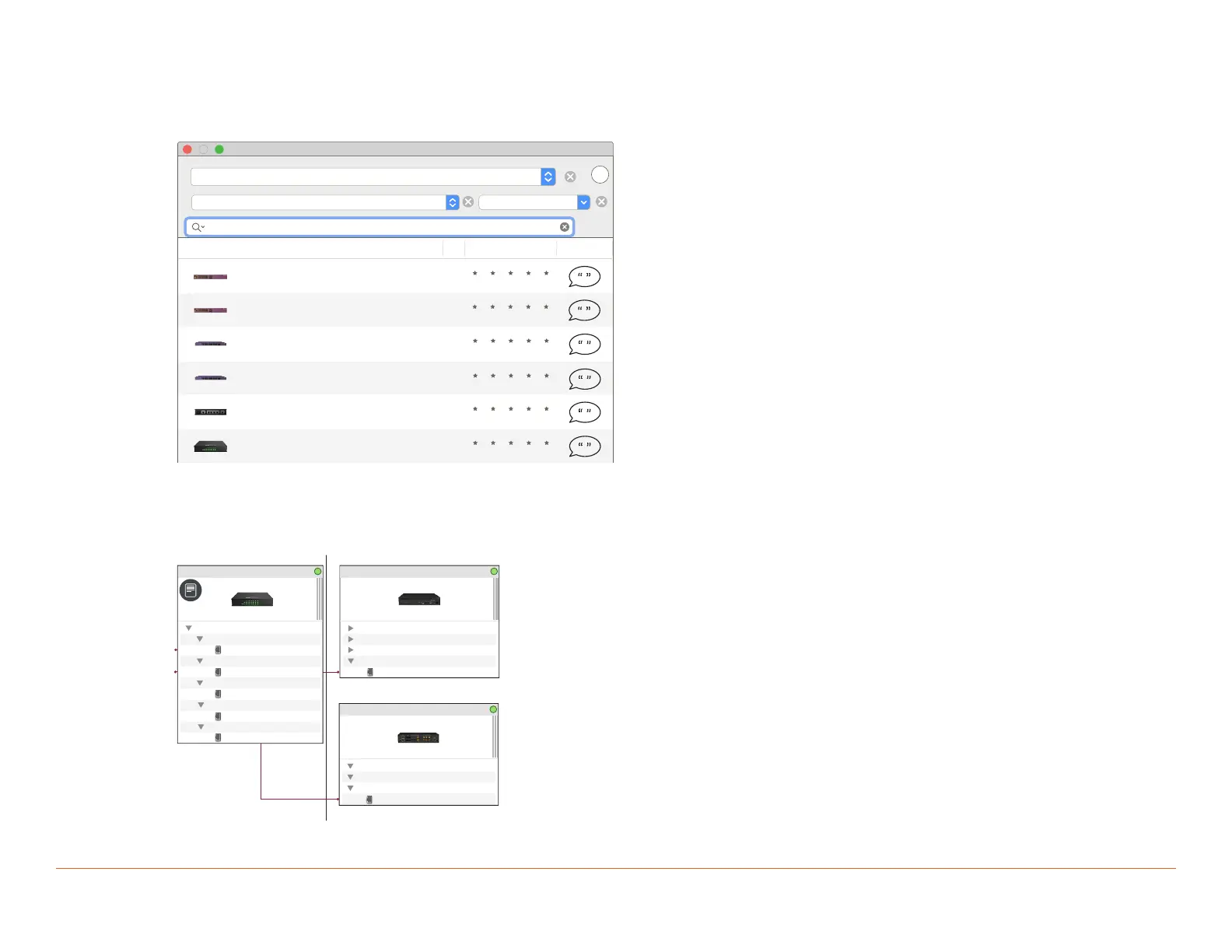

1. Within RacePoint Blueprint, select Show Library.
2. Search for AVB, and select the model of the Savant supported switch matching the model used on site.
?
Components
All Control Types
All Components
All Manufacturers
AVB
4
Components TL Rating Comment
Extreme Networks
X440-G2-12P (ESN-AVB12POE4SFP, Extr...
Extreme Networks
X440-G2-24P (ESN-AVB24POE4SFP, Extr...
Extreme Networks
X440-G2-12T (ESN-AVB12E4SFP, Extrem...
Extreme Networks
X440-G2-24T (ESN-AVB24E4SFP, Extrem...
Generic
AVB NetworkSwitch
MOTU
AVB Switch
3. Drag the switch into a Shared Equipment zone.
4. Name the Device.
5. Place the AVB switch in the layout window
6. Make AVB connections to all IP Audio components.
AVB Switch
Assigned Data
Port 1
AVB_B Ethernet Port (AVB(B))
Port 2
AVB_B Ethernet Port (AVB (B))
Port 3
AVB_B Ethernet Port (AVB (B))
Port 4
AVB_B Ethernet Port (AVB (B))
Port 5
AVB_B Ethernet Port (AVB (B))
SIPA125SM_01
Control Ports
Data
AVB_A Ethernet Port (AVB (A))
Assigned Inputs
Assigned Outputs
AIM7C_01
Control Ports
Data
AVB_A Ethernet Port (AVB (A))
Assigned Inputs
Savant IP Audio device Ethernet ports should be connected to ports on the AVB switch as shown in the example image.
