1. Components
1.1. Viper 4 terminal

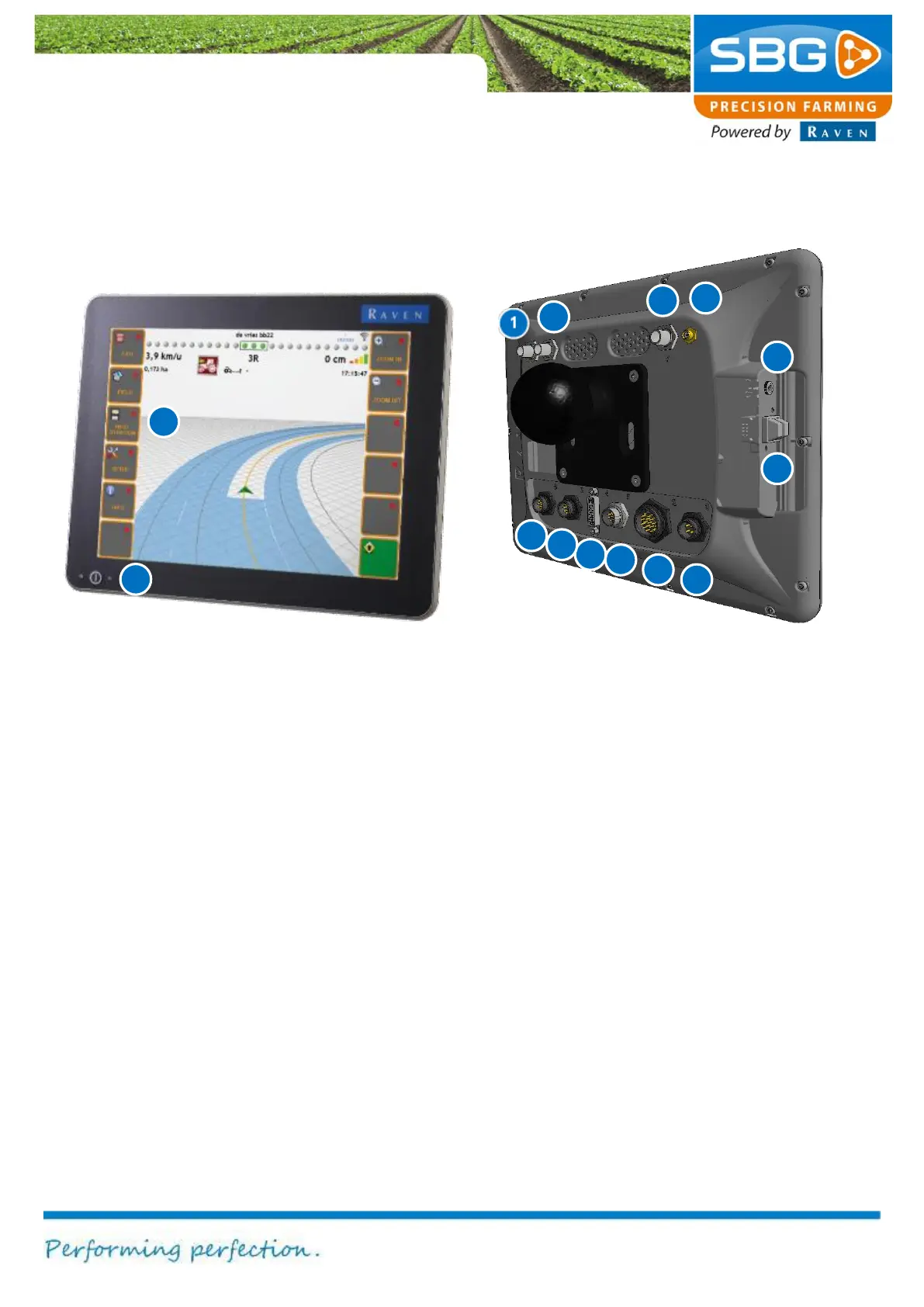

Figure 1 Viper 4 terminal
In Figure 1 all Viper 4 terminal connections are
numbered.
1. Radio (optional): coax small (TNC)
2. GPS-antenna 2: coax small (TNC).
Connection for the second GPS-antenna
(GPS2).
3. GPS-antenna 1: coax small (TNC).
Connection for the main GPS-antenna
(GPS1).
4. WiFi-antenna: FNC
5. External audio: 3,5 mm jackplug
6. USB: 2x
7. Power: 4-pin connector for 12V power.
8. Main interface: 20-pins connector for
serial and CAN-bus communication.
9. Ethernet: 8-pin network connector.
10. External display: DVI.
11. CAN-bus: additional CAN-bus connection.
12. Camera input: camera connection (not
supported in combination with
SBGuidance).
13. Touch-screen: operations are performed
exclusively via a colour touch-screen.
14. Main power switch
2
3
4
5
6
7
8
9
10
11
12
13
14
