2003-10:1 © Scania Industrial & Marine Engines 11

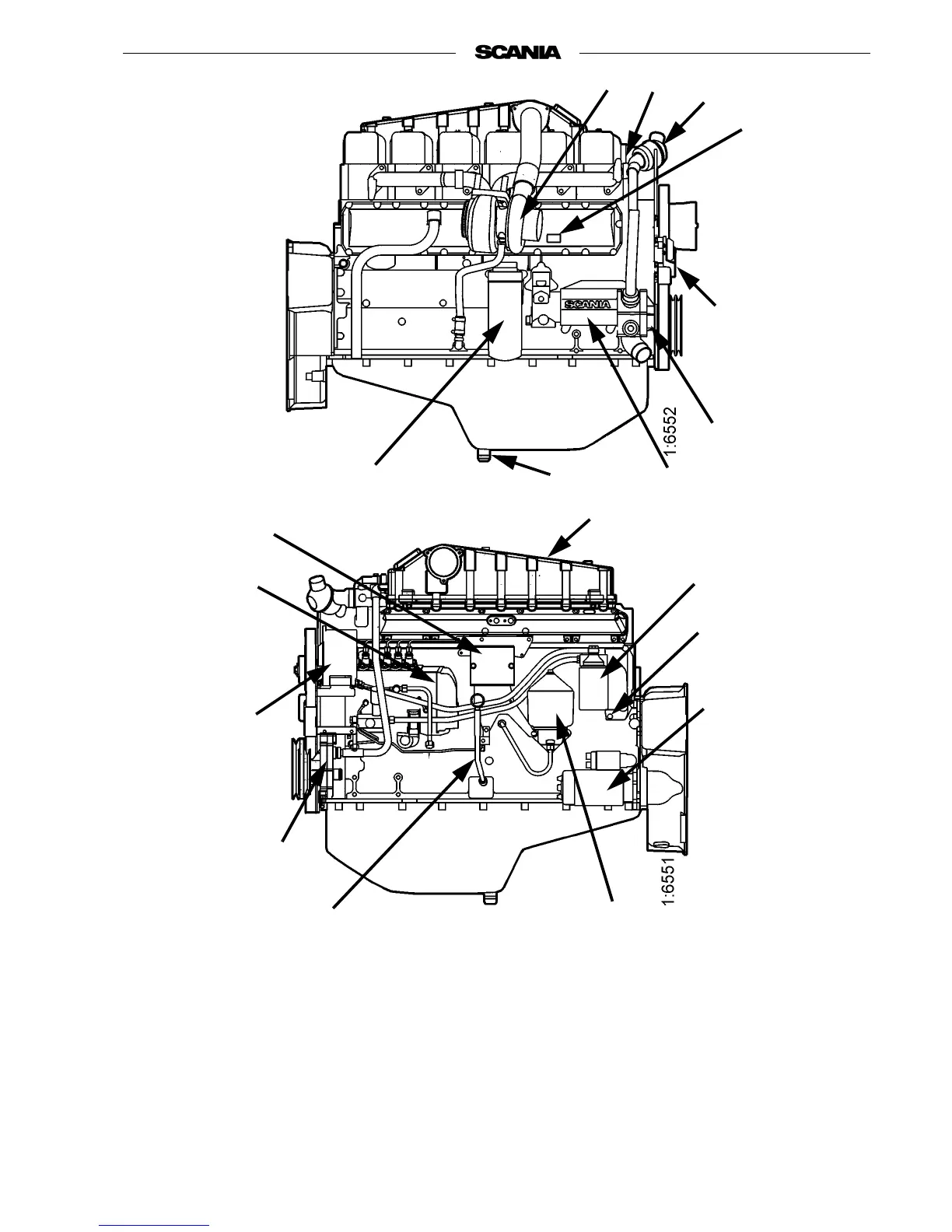

The illustrations show a normal version of a DI9 56 engine.
Your engine may have different equipment from that illustrated.
1. Turbocharger
2. Engine number,
stamped into the engine
block
3. Thermostat housing with
outlet
4. Type plate
5. Automatic belt tensioner
6. Coolant pump
7. Oil cooler
8. Draining, engine oil
9. Oil filter
10. Charge air cooler
11. Fuel filter
12. Draining, coolant
13. Starter motor
14. Oil cleaner
15. Oil dipstick
16. Extra coolant pump
17. Alternator
18. Injection pump with EDC
19. Connector panel DEC2
4
18
6
3
8
9
10
13
7
17
11
2
1
16
12
14
15
5
19

Scania DC9 Specifications

General

Displacement	9.3 liters
Fuel Type	Diesel
Bore	130 mm
Stroke	140 mm
Fuel System	Common Rail
Engine Type	Diesel
Cooling System	Liquid-cooled
