Scania DI13 - Air cleaner; Reading the vacuum indicator

OPM 250 en-GB 40
© Scania CV AB 2022, Sweden
Air cleaner
Air cleaner
WARNING!
Never start the engine without the air filter in po-
sition. Without the air filter, there is a risk of dirt
being sucked into the engine.
The engine turbocharger will continue to rotate
and take in air for a time, even after the engine
has stopped. Therefore, wait for a few minutes
before opening the air cleaner.
IMPORTANT!
Renew the filter element earlier than the mainte-
nance interval if the vacuum indicator shows red.
The filter element must not be cleaned in water
or be blown clean with compressed air. There is
always a risk that the filter element will be dam-
aged when it is cleaned.
Reading the vacuum indicator
If the vacuum indicator's red plunger is fully vis-
ible, renew the air cleaner filter element in ac-
cordance with the following section.
1
4
5
2
3
385 833

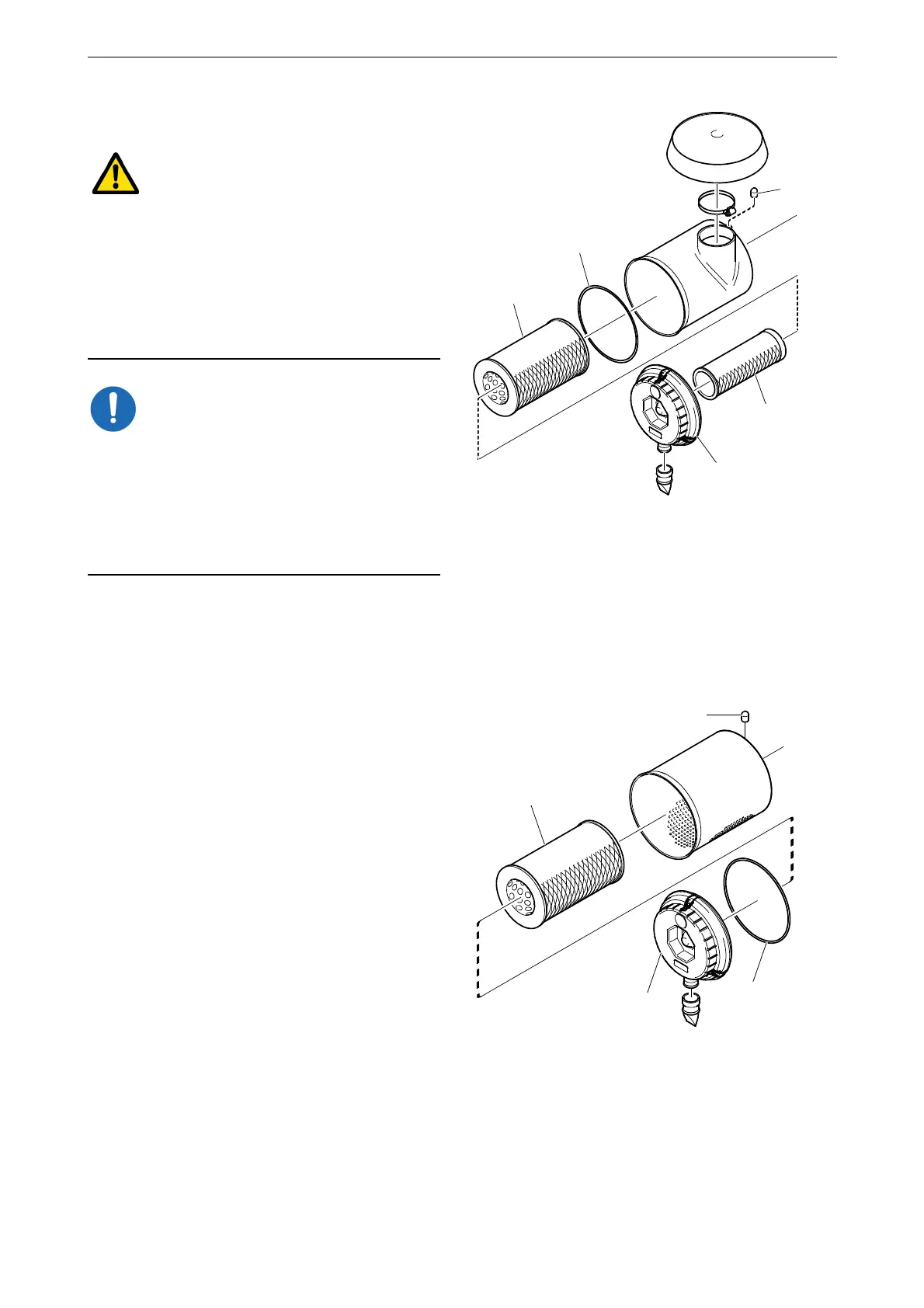

Air cleaner with safety cartridge.
1. Filter element.
2. O-ring.
3. Vacuum indicator.
4. Safety cartridge.
5. Cover.
1
2
3
4
385 832
Air cleaner without safety cartridge.
1. Filter element.
2. Vacuum indicator.
3. O-ring.
4. Cover.
