Scania DI16 XPI series User Manual

Cooling system
OPM 360 en-GB 45
© Scania CV AB 2017, Sweden
6.

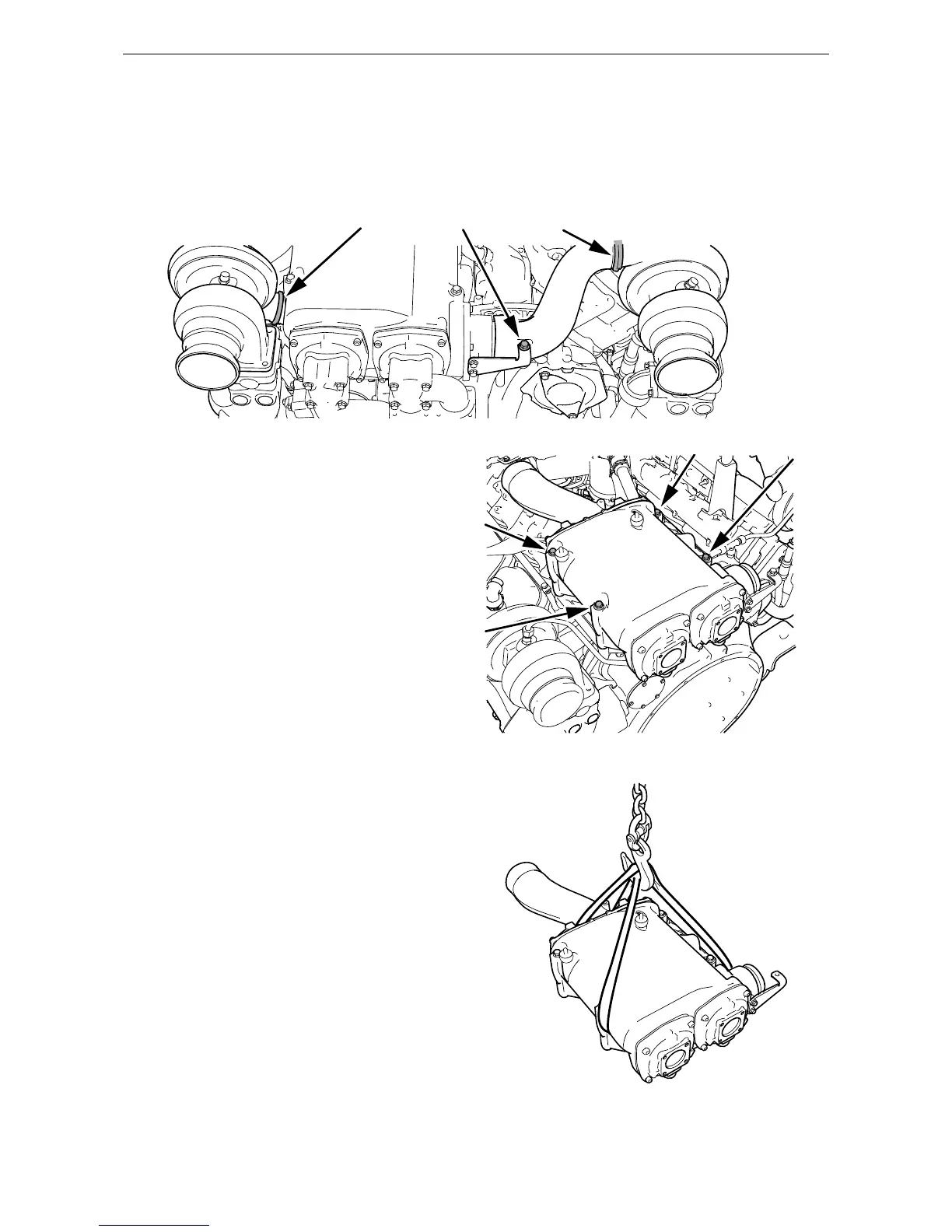

Right-hand turbocharger: Remove the V-
clamp and the screw for the bracket. Remove
the charge air pipe.
7. Left-hand turbocharger: Remove the V-
clamp and carefully turn the charge air pipe
during removal.
8. Remove the screws securing the charge air
cooler.
9. Lift out the charge air cooler.
329 318
329 341
329 340
