SCANMASKIN 650 - Overview

1.8 Overview
2
1
3
4
5
6
14
13
12
11
10
9
8
7
15

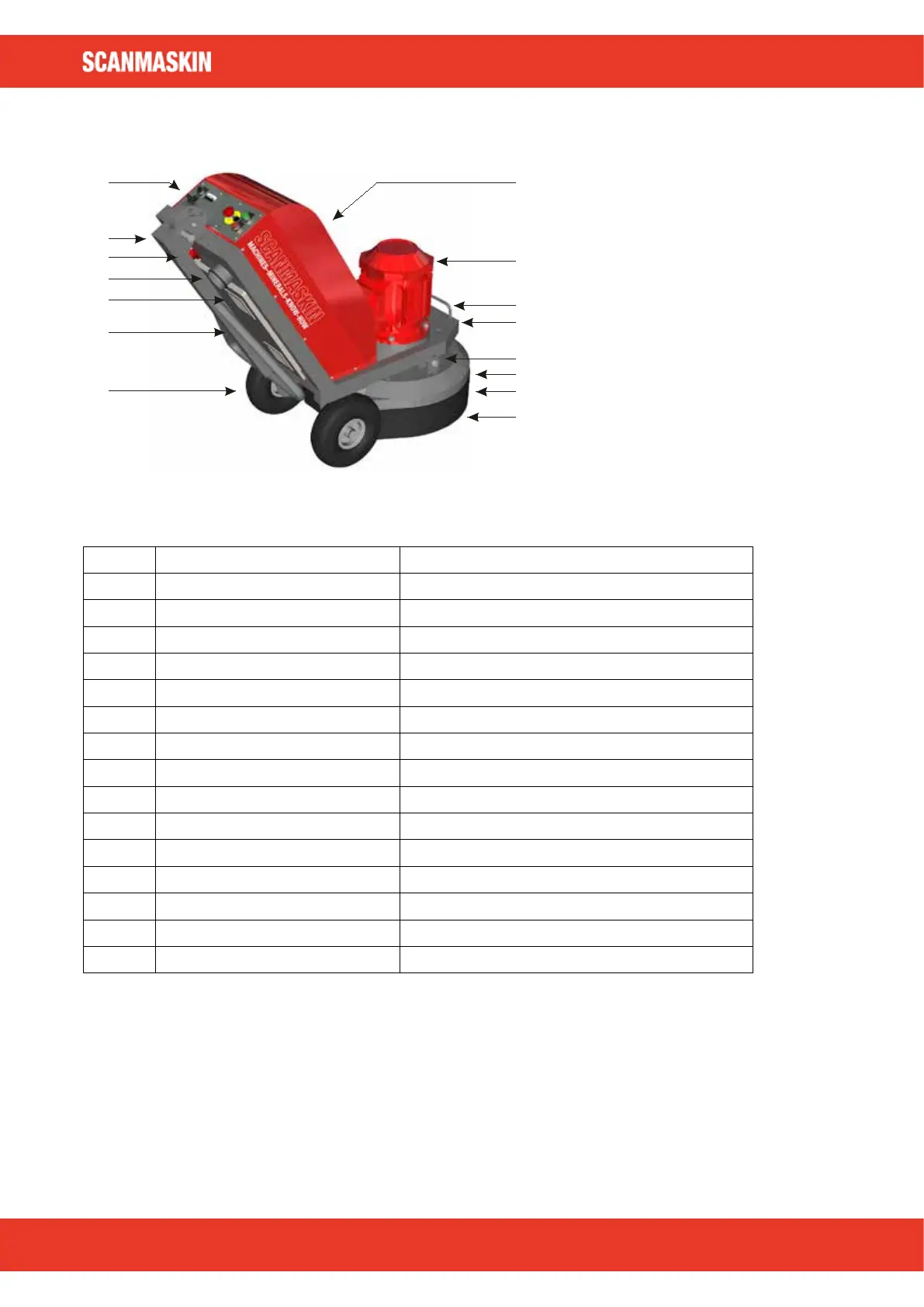

Figure 1.3 Overview of Scanmaskin 650
Item Description Reference
1 Control panel 4.3Control panel
2 Handle 560006
3 Power inlet 1.1Electrical specifications
4 Dust collector connection 6.0 Spare Parts
5 System fan 570151
6 Wheel 560121
7 Grinding head 4.11Changing tools
8 Dust cover 560008
9 Cover 560007
10 Bolt 560109
11 Frame 560005
12 Lift handle 3.3Lifting
13 Motor 1.1Electrical specifications
14 Cover 560105
15 Electrical cabinet 1.1Electrical specifications
Table 1.3 Machine parts overview
