Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX
Part number 183001  Version 3.0
121
MAINTENANCE AND REPAIR

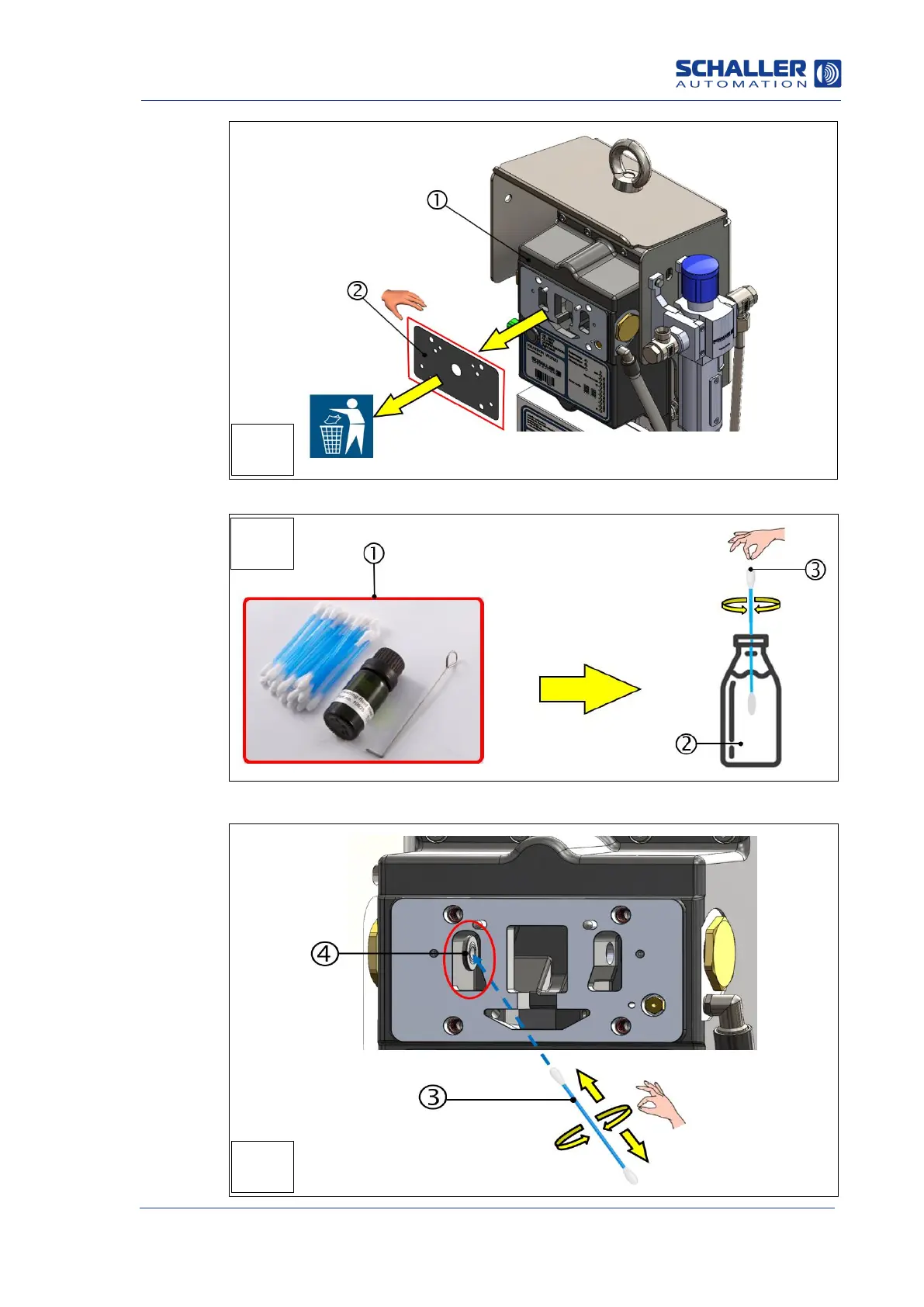

1: Measuring head
2: Seal (old -> dispose of!)
1: Schaller Cleaning Kit (151482)
3: Cleaning buds from the cleaning kit
2: Cleaning fluid
4: Diode glass, left
2
3
4
