Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

143

MAINTENANCE AND REPAIR

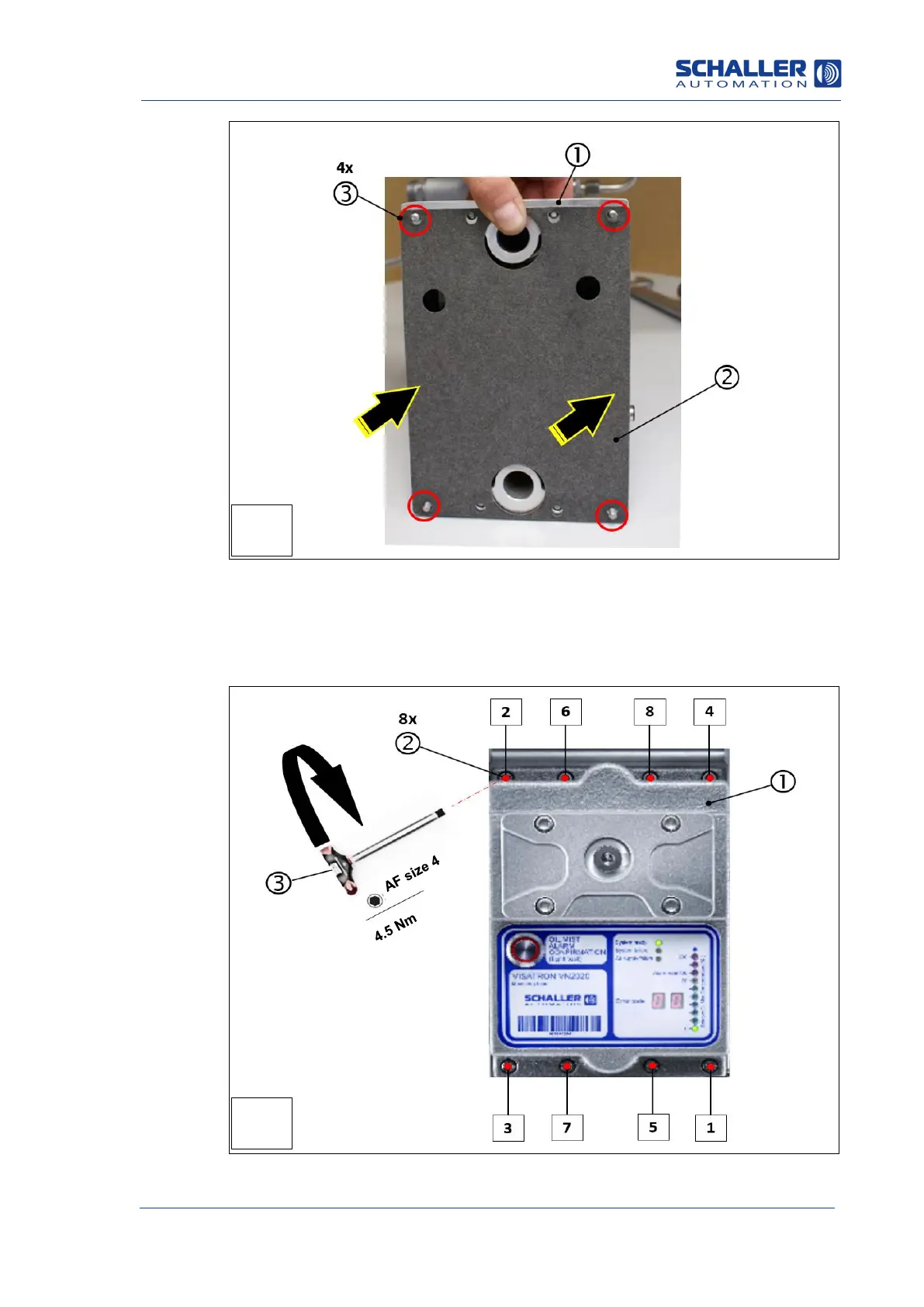

1: (New) VN2020 measuring head

3: Neck collar bolts

2: (New) measuring head seal, VN2020

 Place the new seal (supplied) on the back of the new measuring head. Secure

the seal by inserting two of the eight pre-assembled screws through the four

outer holes.

1: VN2020 measuring head

3: Allen key, size 4

2: 8x neck collar bolts
