3 – PRODUCT PRESENTATION COD.60M12/24.A.2018

3.8 Composition of the machine

The machine is composed by the following parts:

1. PUMP GROUP

2. WATERMAKER GROUP

3.8.1 Pump group

This pump has the duty of picking the sea water up and send it to the watermaker group, through the pre filter.

The pump group is composed by the following components:

• 5 micron cartridge filter

• Diaphragm pump

• High pressure switch

• Pump box

• Pulsation dampener

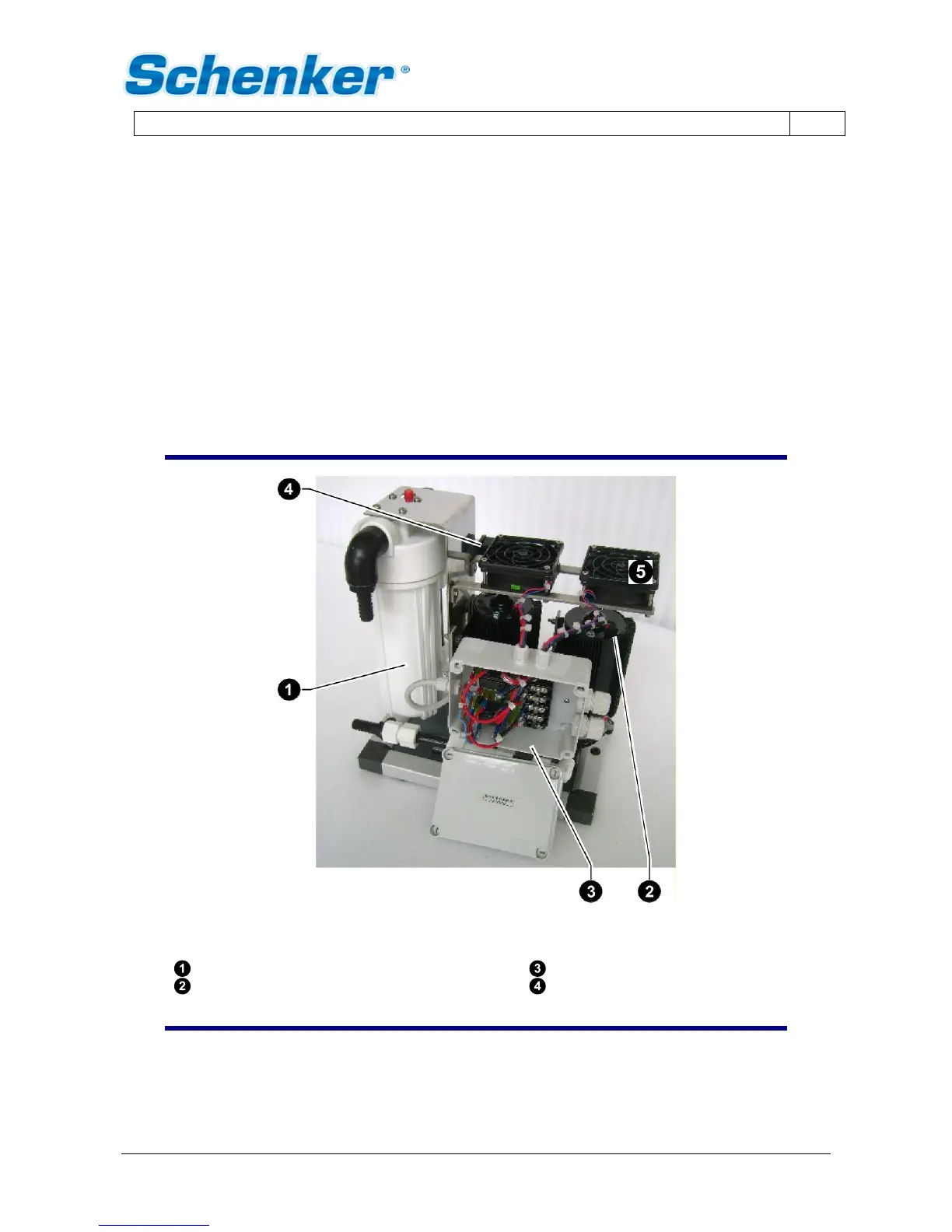

PUMP GROUP AND FILTER 12-24 V DC

FIG. 3-5

5 micron cartridge filter

Pump box with relays

Diaphragm pump

High pressure switch
