4.4 Hydraulic connections

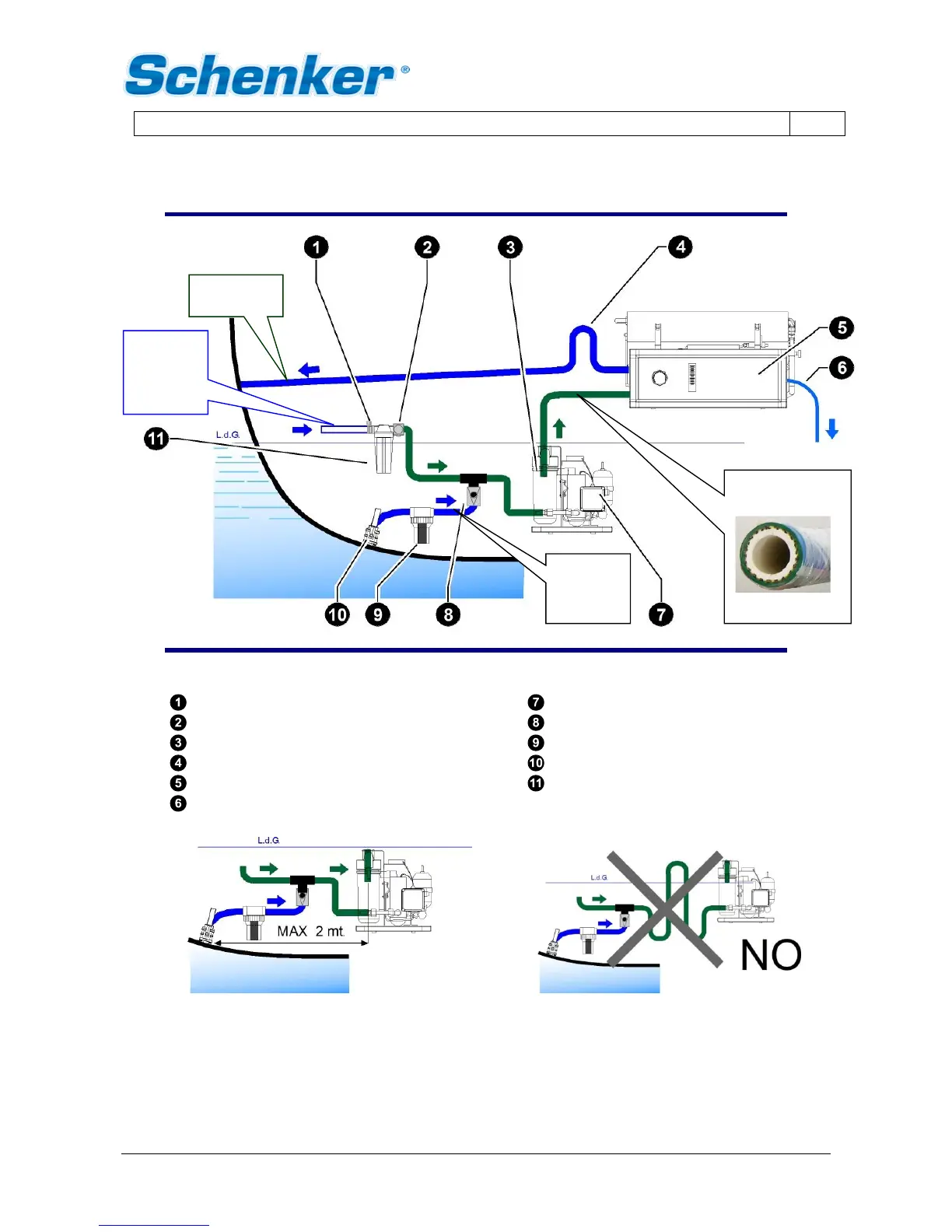

HYDRAULIC CONNECTION AND PIPES
FIG. 4-1
Pressurized fresh water valve
Pump
Elecrovalve
Non return valve
5 micron filter
Net filter
Swan neck upward - Disharge
Water inlet
Watermaker
Active carbon filter
Fresh water outlet
All the hydraulic connections (to exception of the fresh water production) have to be realized with a 16 mm.
int. diam. hose and a ½” holder. The hydraulic section that is continuously under consistent pressure is the
pump outlet – 5 m. filter – watermaker inlet connections . For this section is necessary to use a good quality
PN 16 min. reinforced hose. An inadequate hose could burst, jeopardizing seriously the safety of the boat.
Plumb to
pressure
side of boat
fresh water
system
Exhausted
discharge
“Armovin”
type hose
int. dia. 16
mm.
Reinforced hose
PN15 min int. dia.
16 mm.
