Diverting valve*. It is an electrovalve that diverts the fresh water flow according to the value measured by
a salinity probe, avoiding the salty water to be sent to the production tank.
The 2 cables of the probe must be connected on the PCB of the electric box, clamps Cond and (-).
The 2 cables of the valve must be connected on the PCB of the electric box, clamps Chem and (-).

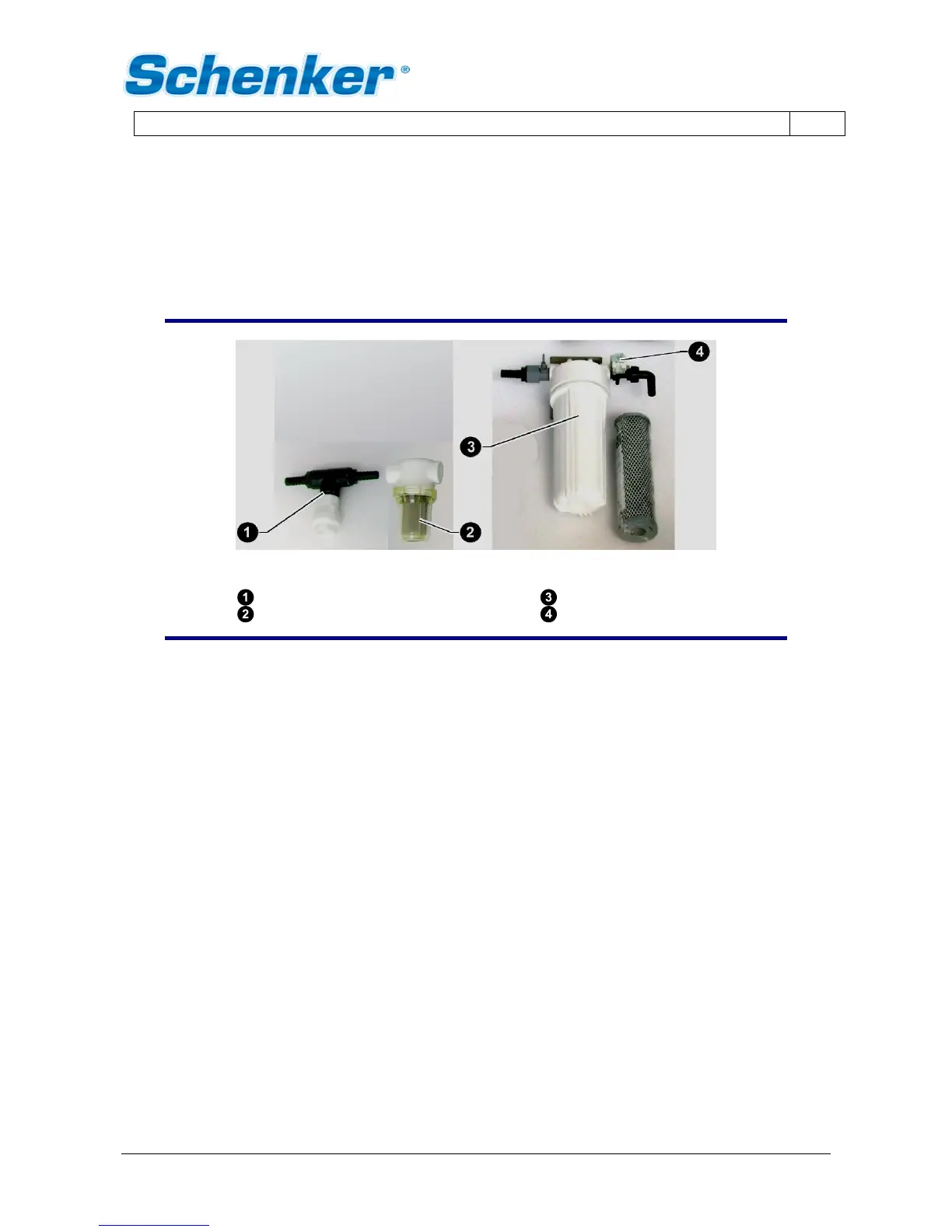

DIVERTING VALVE
FIG. 3-11
IN – from membrane outlet
OUT – tank connection
OUT – discharge connection
Probe
TEE DISCHARGE CONNECTION
FIG. 3-12
Connection from diverting valve
Outboard discharge
Discharge from the watermaker
*Optional
