Service Manual L
9

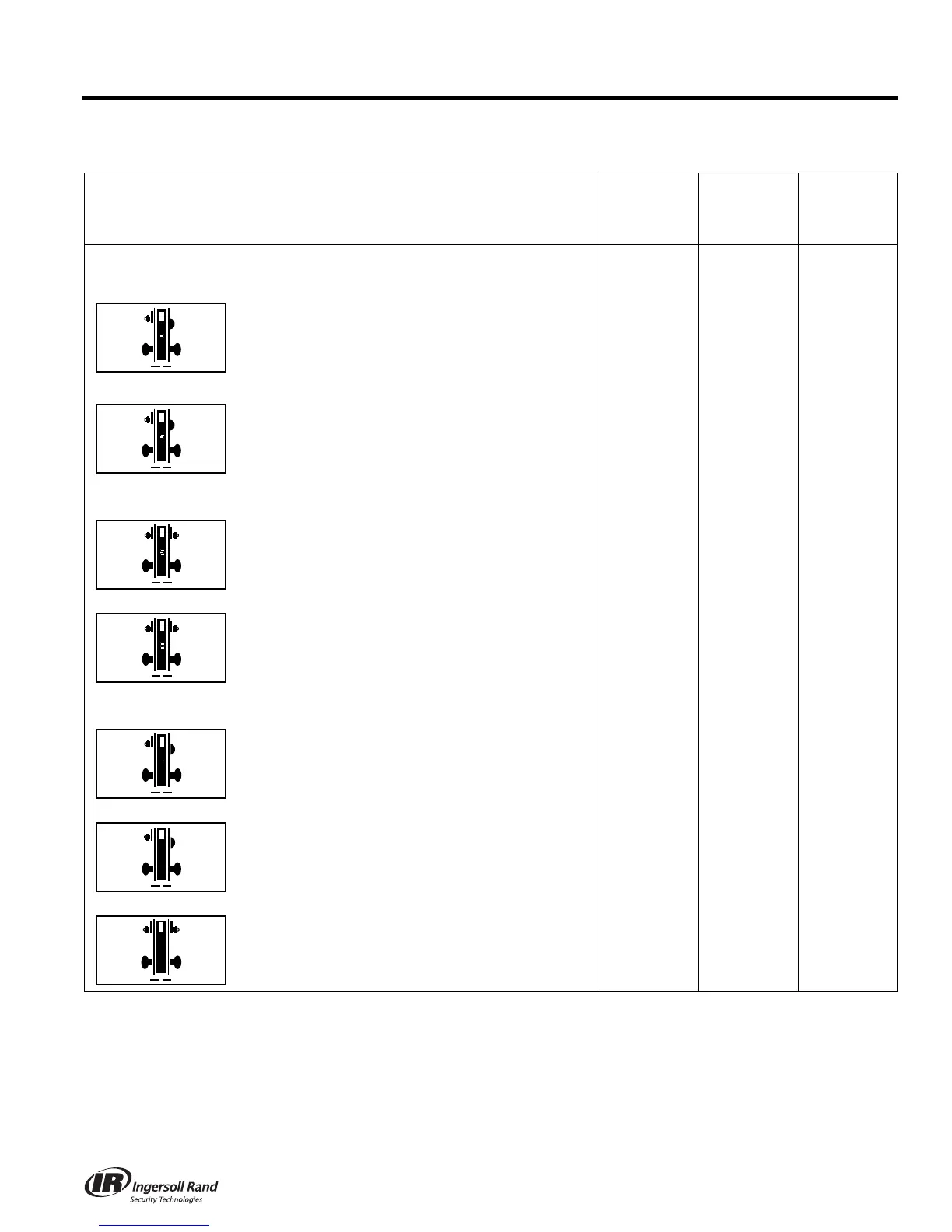

Lock Assembly Drawing Index
Functions
ANSI A156.13, 1994 Series 1000
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Part Number
Keyed Locks
SCHLAGE ANSI
L9456 F13 Corridor Lock

Latchbolt is retracted by knob/lever from either side. Deadbolt is
operated by key outside or inside turn piece. Engaging deadbolt
locks outside knob/lever. Turning inside knob/lever
simultaneously retracts deadbolt and latchbolt and unlocks
outside knob/lever. Inside knob/lever is always free for
immediate exit.
22 74 L283-138
LV9456
Corridor Lock wtih Vandlgard
®

Latchbolt is retracted by knob/lever from either side. Deadbolt is
operated by key outside or inside turn piece. Engaging deadbolt
locks outside knob/lever. Turning inside knob/lever
simultaneously retracts deadbolt and latchbolt and unlocks
outside knob/lever. Inside knob/lever is always free for
immediate exit. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked.
22 75 L283-177†
L9457 Classroom Security Lock 
Latchbolt is retracted by knob/lever from either side. Deadbolt is
operated by key from either side. Engaging deadbolt locks
outside knob/lever. Turning inside knob/lever simultaneously
retracts deadbolt and latchbolt and unlocks outside knob/lever.
Inside knob/lever is always free for immediate exit.
23 74 L283-138
LV9457
Classroom Security Lock with Vandlgard
®

Latchbolt is retracted by knob/lever from either side. Deadbolt is
operated by key from either side. Engaging deadbolt locks
outside knob/lever. Turning inside knob/lever simultaneously
retracts deadbolt and latchbolt and unlocks outside knob/lever.
Inside knob/lever is always free for immediate exit. Vandlgard
function allows exterior lever to rotate freely down while
remaining securely locked.
23 75 L283-177†
L9460 x XL11-635 L9460 with Fixed Dummy Trim
Knob/lever is always fixed on both sides. Deadbolt is operated
by key outside or turn piece inside. Specify per XL11-635.
30 77 XL11-661†
L9460 x XL11-886 Deadbolt with Retraction by Inside Knob/Lever
Deadbolt is operated by key outside or turn piece inside.
Rotating inside knob/lever retracts deadbolt. Outside knob/lever
is always fixed. Specify per XL11-886.
31 78 —
L9462 x XL11-886 Double Cylinder Deadbolt with Retraction by Inside
Knob/Lever
Deadbolt is operated by key either side. Rotating inside
knob/lever retracts deadbolt. Outside knob/lever is always fixed.
Specify per XL11-886.
23 78 —
† Not sold separately as a part.
 Available with Request to Exit feature. See page 114 for Request to Exit information.
