Schmalz SCH-S - Attaching the Load Hook; Single Chain

INSTALLATION
24 | EN www.schmalz.com 30.30.01.01117/06
5.4 Attaching the Load Hook
The limit switch must be adjusted before the load hook is attached (see chapter 5.3).
5.4.1 Single Chain

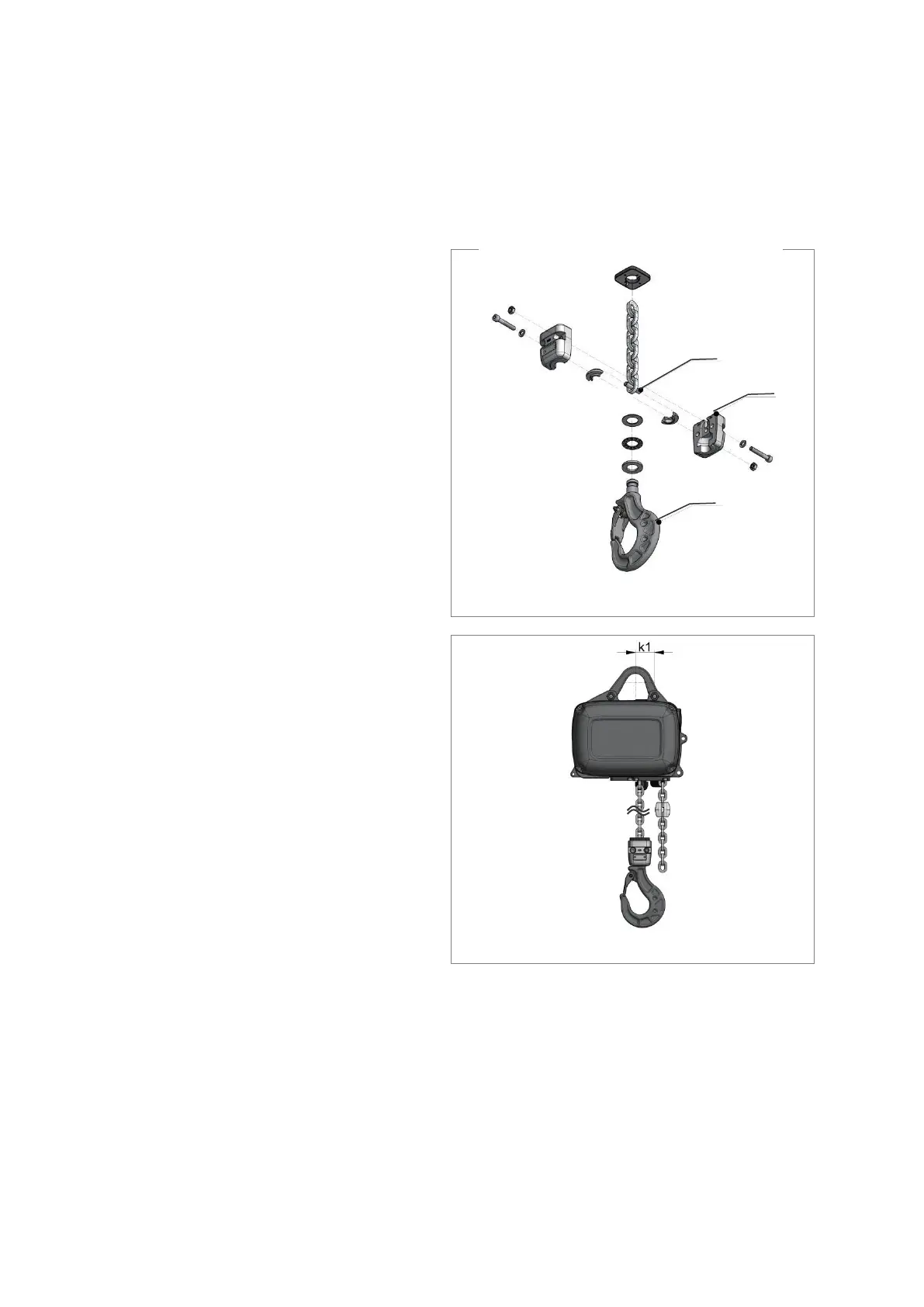

1. Attach the load hook (1) using the clamping
piece (2). Correct mounting of the bolt (3) is
important for the power transmission (Fig.
14).
Fig. 14
2. Ensure that the suspension unit is arranged
according to Fig. 15
(dimension k1 = 41 mm).
3. Grease bearing positions well.
Fig. 15
3
2
1
