5.4.2 Dual Chain

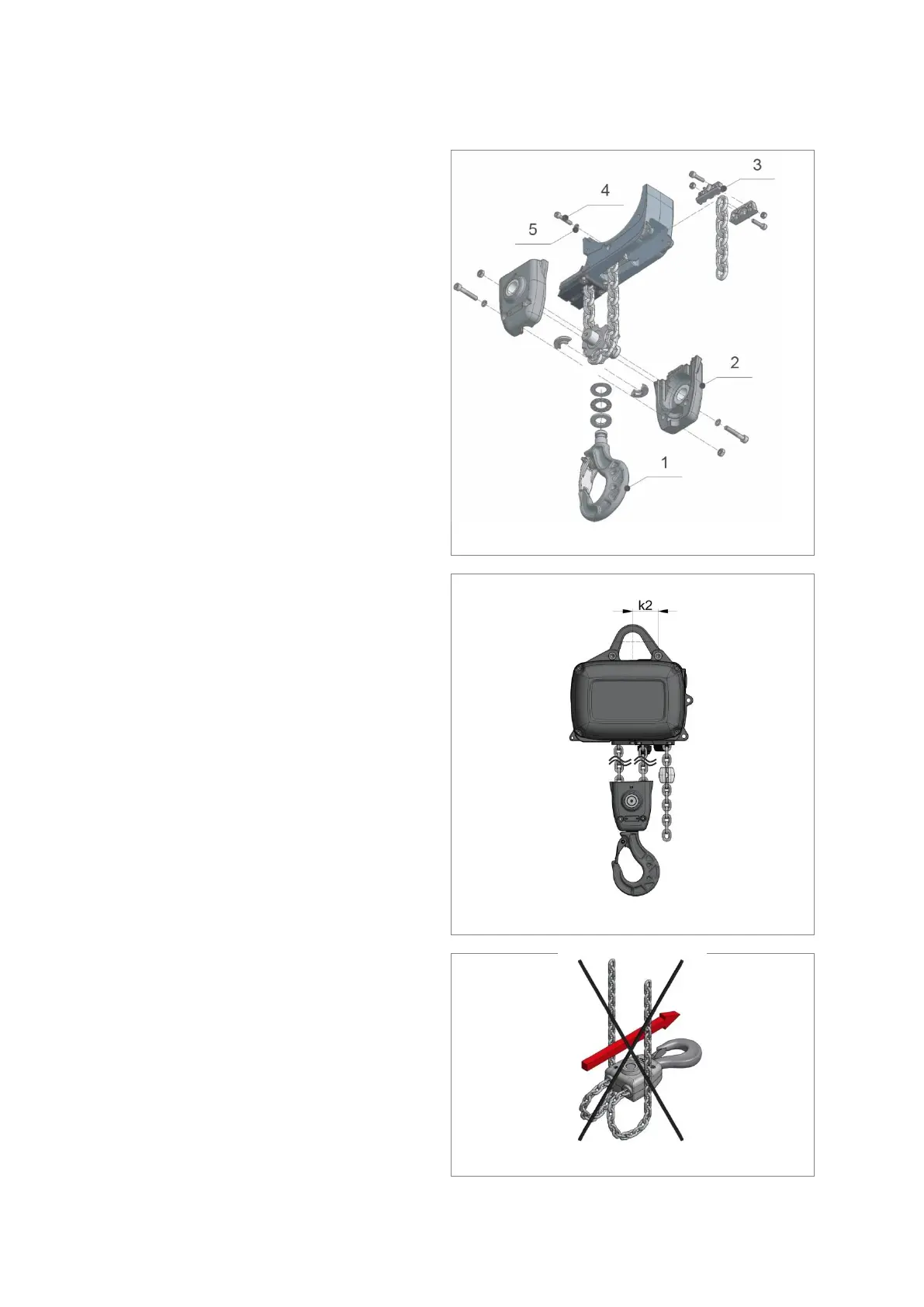

1. Attach the load hook (1) using the lower
block (2) in accordance with Fig. 16.
2. Connect the end of the chain that takes the
load to the chain fastener (3) and fix in the
guide rails in the housing.
3. Secure the chain fastener with screw (4) and
spring washer (5).
Fig. 16
4. Ensure that the suspension unit is arranged
according to Fig. 17
(dimension k2 = 52 mm).
5. Grease bearing positions well.
Fig. 17
6. Do not twist the chain axially (Fig. 18).
Fig. 18
