6.2.2 SCH-L Model
To attach the SCH-L chain hoist to a Schmalz transport trolley, the intermediate plate (part number
14.01.02.00662) must be used.

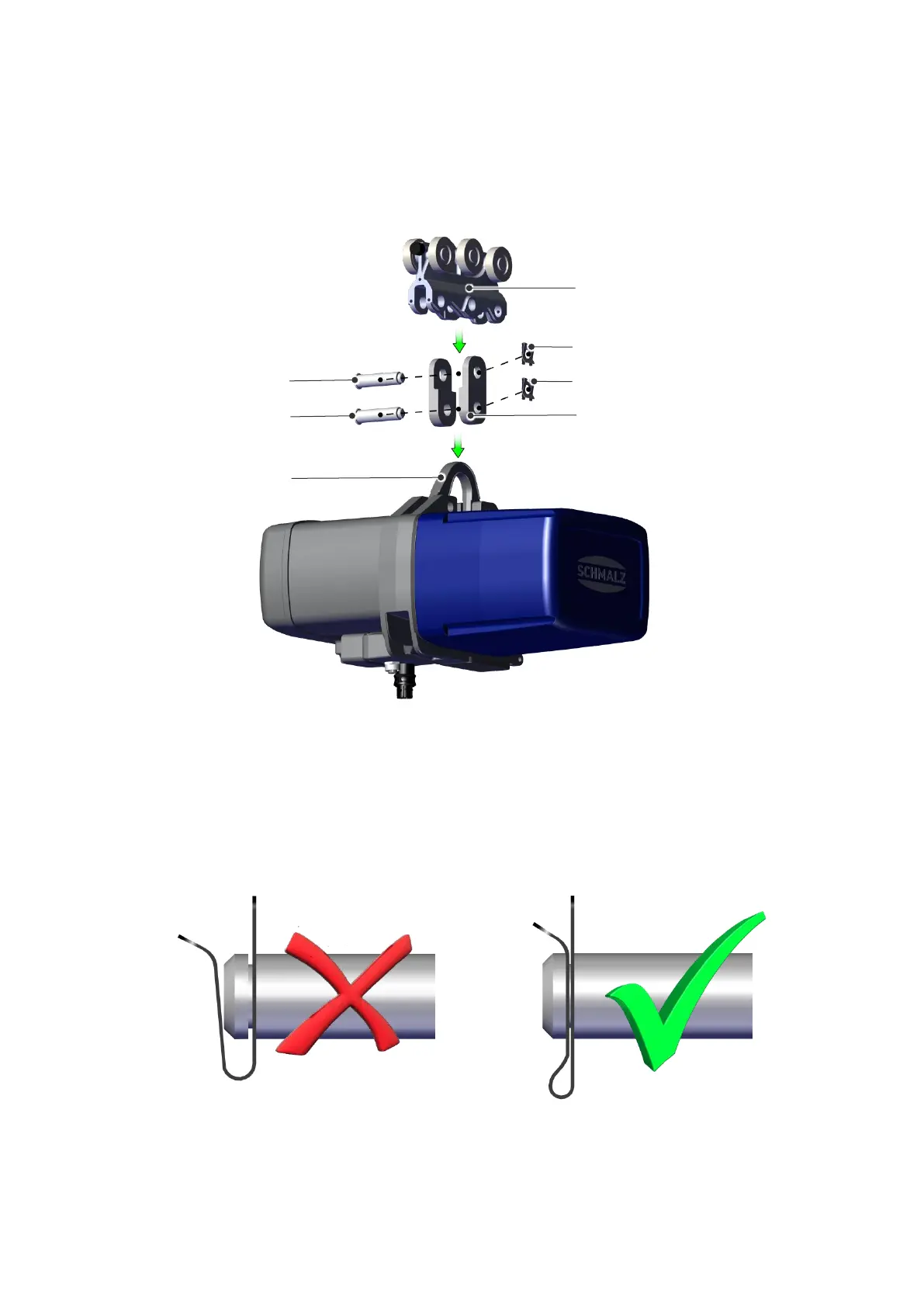

1. Secure the intermediate plate (1) to the transport trolley (2) with the suspension bolt (1.1).
2. Secure the suspension bolt (1.1) with the retaining element (1.2).
3. Hook the chain hoist with the suspension eye (3) on the lower suspension bolt (1.3).
4. Secure the suspension bolt (1.3) with the retaining element (1.4).
5. Ensure that both suspension bolts (1.1, 1.3) are correctly secured with the retaining element
(1.2, 1.4) (see fig.).
2
1.1
1.2
1.4
1
1.3
3
