9.4 Removing and replacing parts
The KSG swivel plate system is compatible with all standard KSG vices with the same jaw
width.
The installation can be reversed simply by exchanging jaws (see page 35).

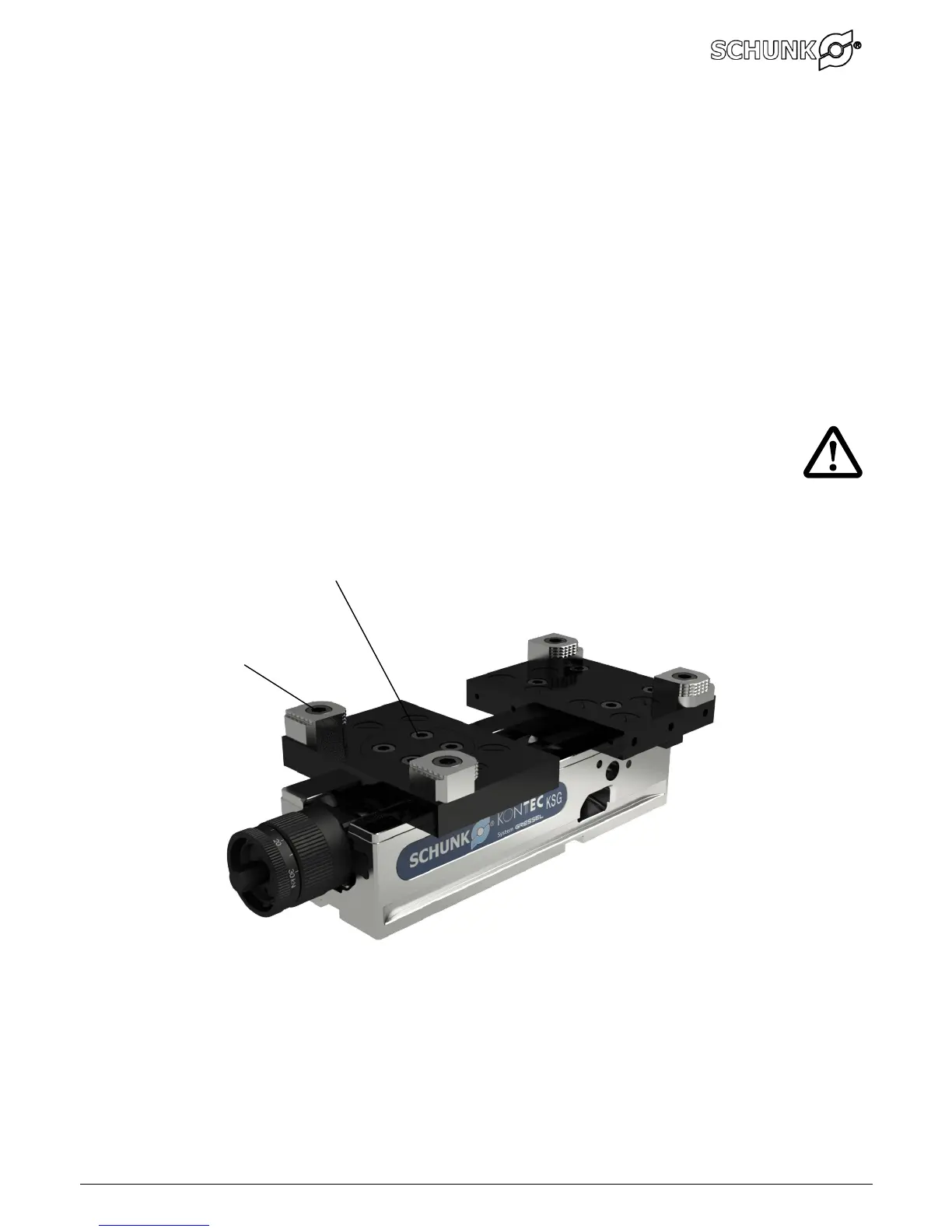

9.5 Fitting the 6-fold reversible jaws
Determine the mounting positions of the 6-fold reversible jaws.
The best clamping results are achieved when clamping parts as far out as possible.
Move the cover screws so that the selected clamping position is available.
Position the 6-fold reversible jaws and loosely insert the M12 cylinder screws.
Turn the 6-fold reversible jaws on to the required clamping faces; slightly pre-clamp the
workpiece so that the clamping faces are parallel to, and touch, the workpiece.
Use a torque of 80 Nm to tighten the M12 cylinder screws of the 6-fold reversible jaws.
Attention:
When the clamping faces of the reversible jaws are not aligned parallel
to the workpiece surface it is possible that the 6-fold reversible jaw becomes
loose through the clamping force.
The torque for tightening the M12 bolts of the 6-fold reversible jaw is 80 Nm
60 Nm at KSG 100 / 125
150 Nm at KSG 160
80 Nm
