SCHUNK KSG series User Manual

_________________________________________________________________________________________
schunk.com XND.00005.022_A – 10/2018 43
11.3 Servicing, cleaning, maintenance
See page 37
11.4 Troubleshooting, eliminating faults
See pages 38 and 39
11.5 Removing and replacing parts
The hydraulic cylinder and spindle assemblies are compatible with all KSG standard 125
and 160.
The installation can be reversed simply by exchanging the parts(see pages 35 and 39).
Exception:

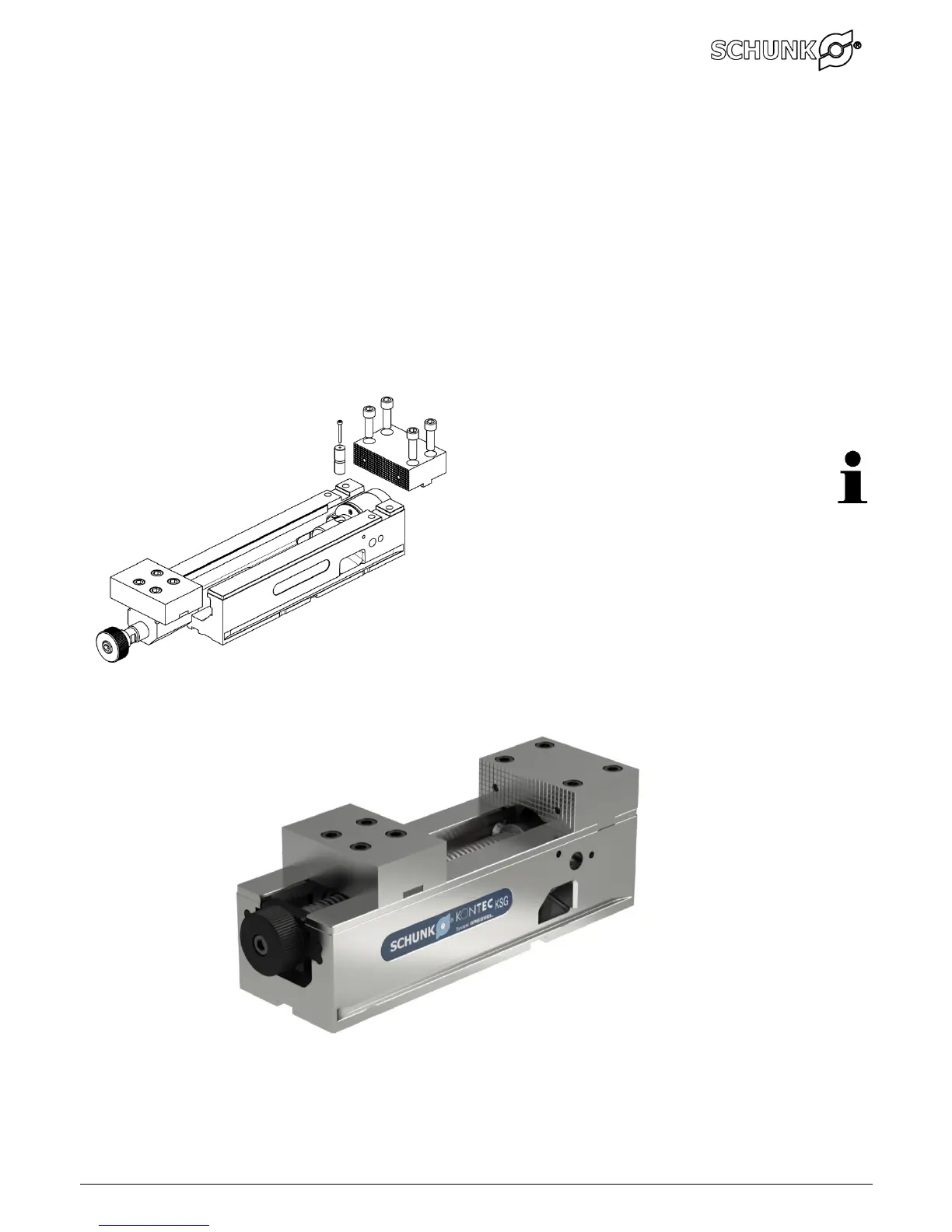

KSG 160-H, Remove or Fitting the Spindle assembly
 Remove the fix jaw.
 Remove the coupling bolt with M5 screw.
 The spindle assembly can be pulled out.
 Install in the reverse order.
 For the screw M16, use 150 Nm to tighten
jaws.
