Sensors
• Apart from the special gripper variants the mounting kits are ne-
cessary for mounting the sensors.
• If you require further information on sensor operation, contact
your SCHUNK contact person or download information from our
homepage.
• Technical data for the sensors can be found in the data sheets
(included in the scope of delivery).

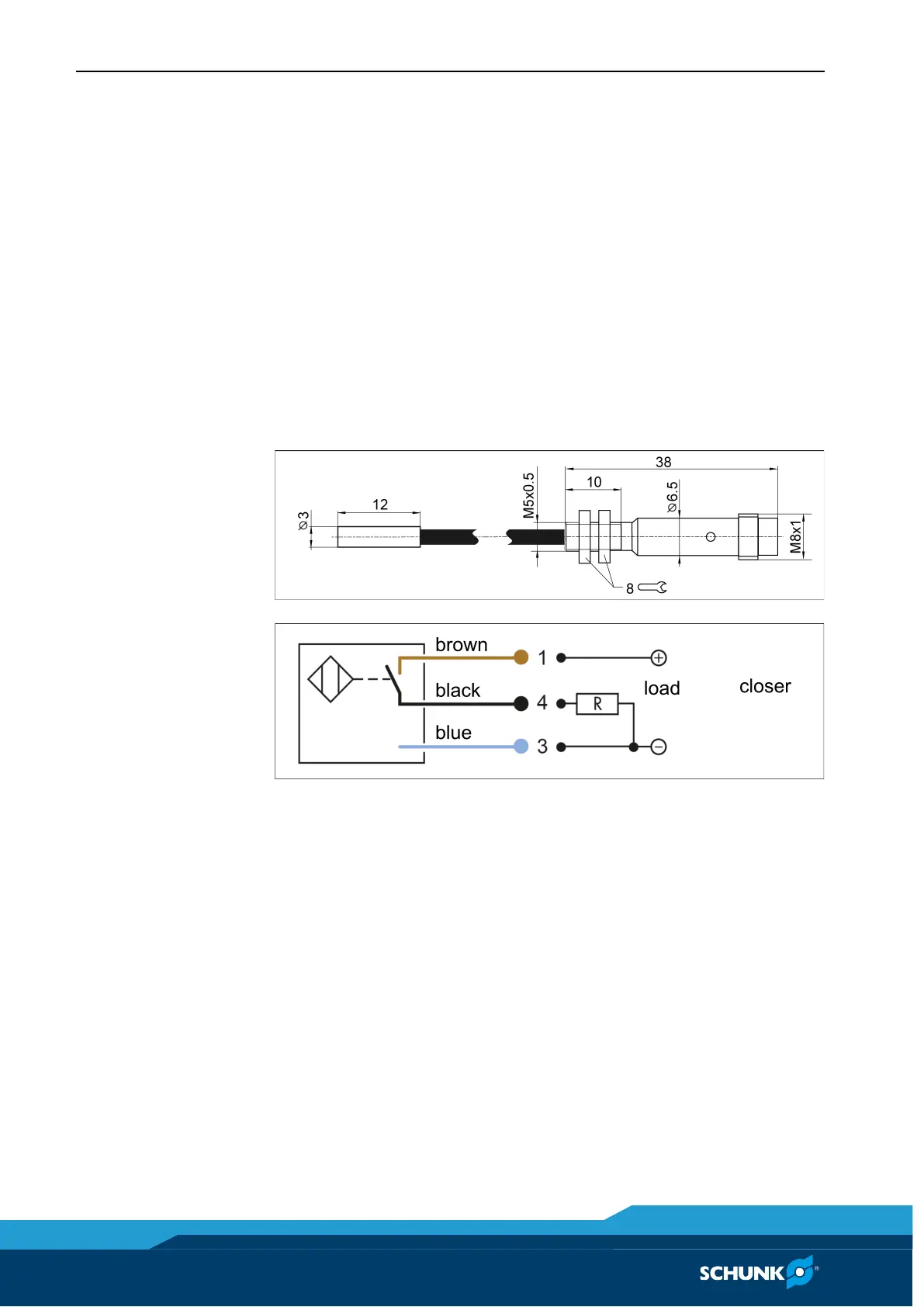

Inductive proximity switch IN 3/S
Fig. 3
Fig. 4
Types available for order (see catalog)
The inductive proximity switches used are equipped with reverse
polarity protection and are short-circuit-proof.
Make sure that you handle the proximity switches properly:
• Do not pull on the cable.
• Do not allow the sensor to dangle from the cable.
• Do not overtighten the mounting screw or mounting clip
• Please adhere to a permitted bend radius of the cable (☞ cataolg).
• Avoid contact of the proximity switches with hard objects and
with chemicals, in particular nitric acid, chromic acid and sul-
phuric acid.
