Assembly
04.01|MPG-plus |en
13
Assembly
Mechanical connection
WARNING
Risk of injury when the machine/system moves unexpectedly!
Switch off power supply.
The values relate to the entire bolting surface.
Requirements for levelness of the bolting surface (Dimensions in mm)
Diameter Permissible unevenness
< 100 < 0.02
> 100 < 0.05
The module can be mounted from the front, from the rear or on
the side.

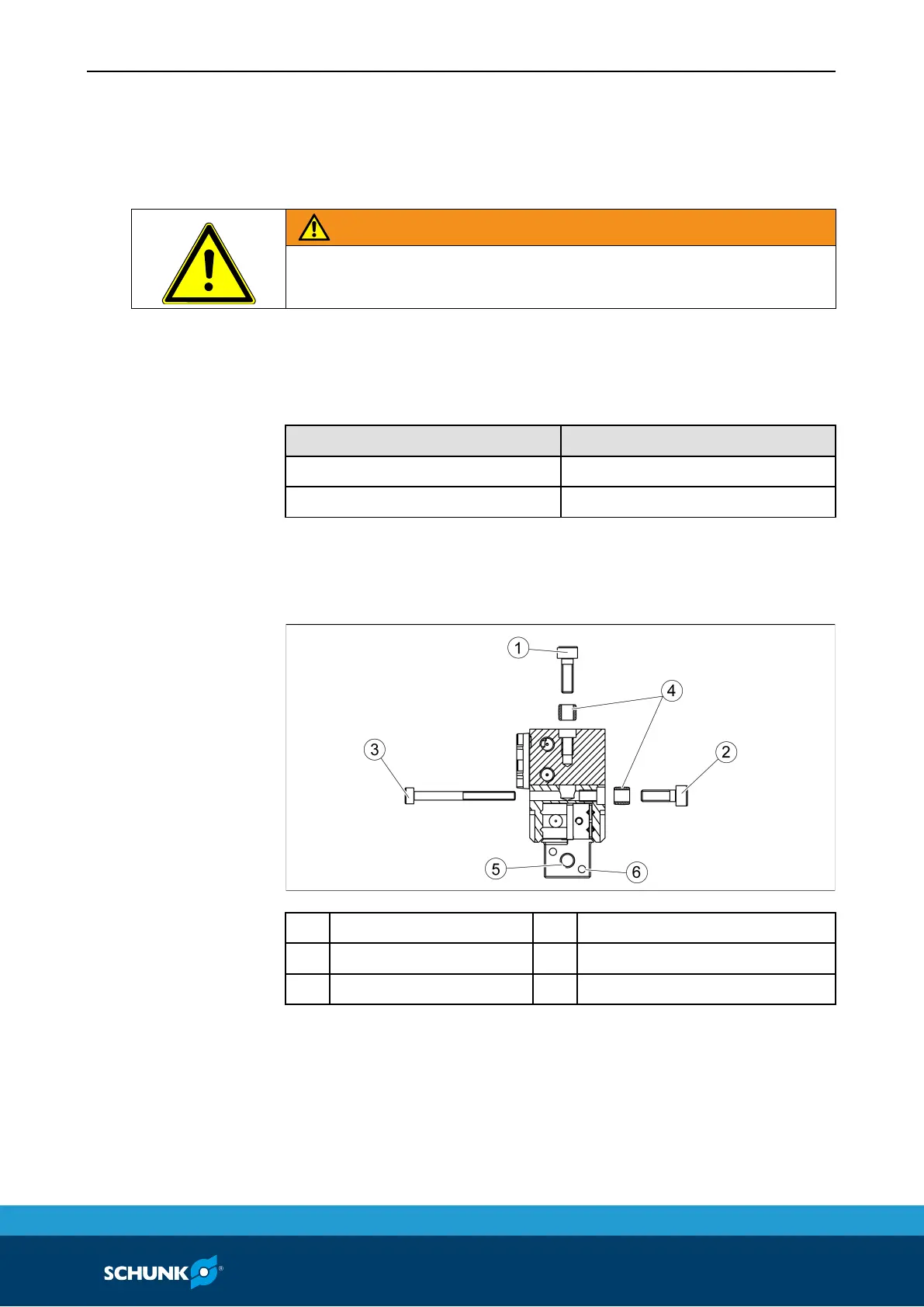

Fig. 1 Assembly options
1 Mounting from the rear 4 Centering sleeves
2 Side mounting 5 Thread in top jaws
3 Side mounting 6 Fixing bores for cylindrical pin
7
7.1
Check the evenness
of the bolting surface
Mounting
