Assembly drawings
36 04.01|MPG-plus |en
Assembly drawings
The following figures are example images.
They serve for illustration and assignment of the spare parts.
Variations are possible depending on size and variant.
Assembly of the variant without gripping force maintenance

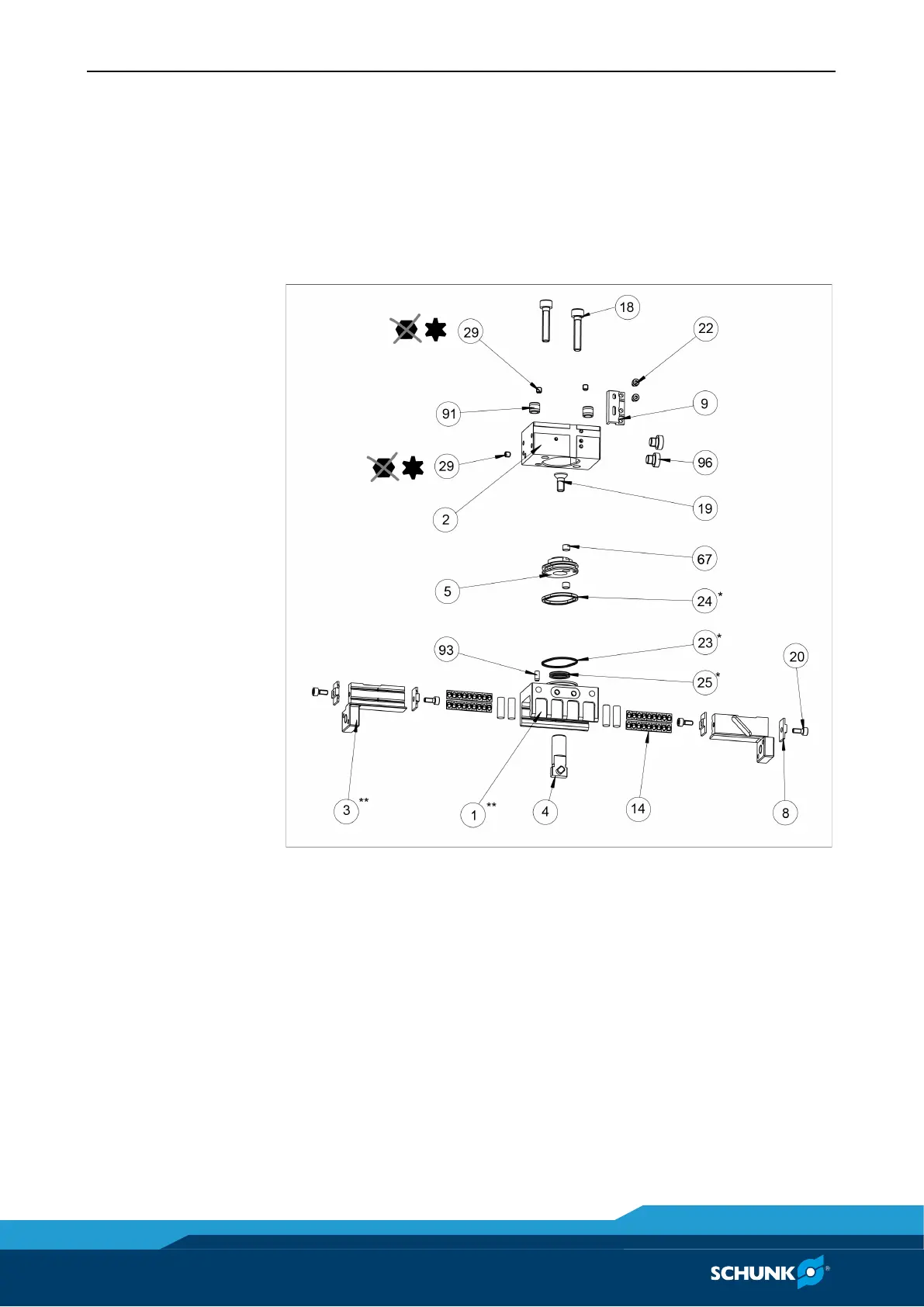

Fig. 25 Assembly of the variant without gripping force maintenance
* Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered com-
pletely.
** Positions are adapted to each other and can not be re-
placed by the customer.
10
10.1
