Assembly
04.01|MPG-plus |en
27
Analog magnet sensor MMS-A
This chapter contains notes on the assembly of the sensor. The
"teaching" of the sensor is described in the operating manual for
the sensor.
The sensor is only destined for the use in the vertical groove of the
gripper.
1 Slightly loosen the mounting screws for the fastener so that the
sensor may be pushed into the fastener.
2 Push the sensor into the fastener until it bears against the in-
ternal stop of the fastener.
3 Firmly tighten the mounting screw of the fastener.
4 Turn the mounting screw on the sensor to the right (clockwise)
using an Allen key to fix the sensor in place.
For the gripper in this size a special fastener (in the scope of deli-
very) has to be used.
The already mounted standard fastener can not be used.

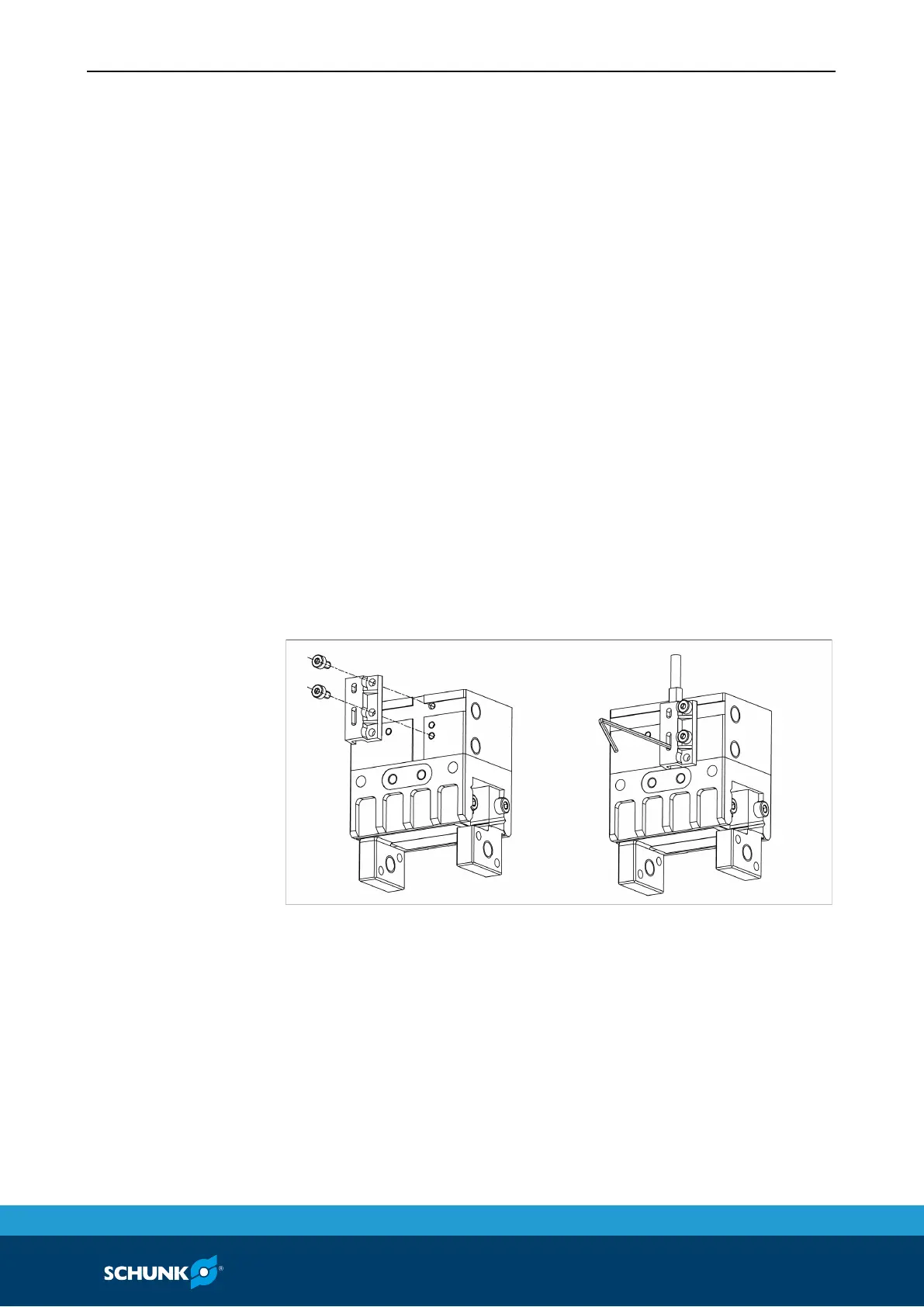

Fig. 20
1 Remove the standard fastener from the sensor.
2 Mount the special fastener instead of the standard fastener.
However do not fix the mounting screws of the fastener com-
pletely.
3 Push the sensor into the fastener until it bears against the in-
ternal stop of the fastener.
4 Firmly tighten the mounting screw of the fastener.
5 Turn the mounting screw on the sensor to the right (clockwise)
using an Allen key to fix the sensor in place.
7.3.5
MPG-plus
32 / 32 AS /
40 / 40 IS / 40 AS /
50 / 50 AS
MPG-plus
25 / 25 IS / 25 AS /
32 IS / 50 IS
