Assembly drawings

04.01|MPG-plus |en

Assembly of the variant with O.D. gripping

WARNING

Risk of injury due to spring forces!

The lid is under spring tension.

Carefully disassemble the module.

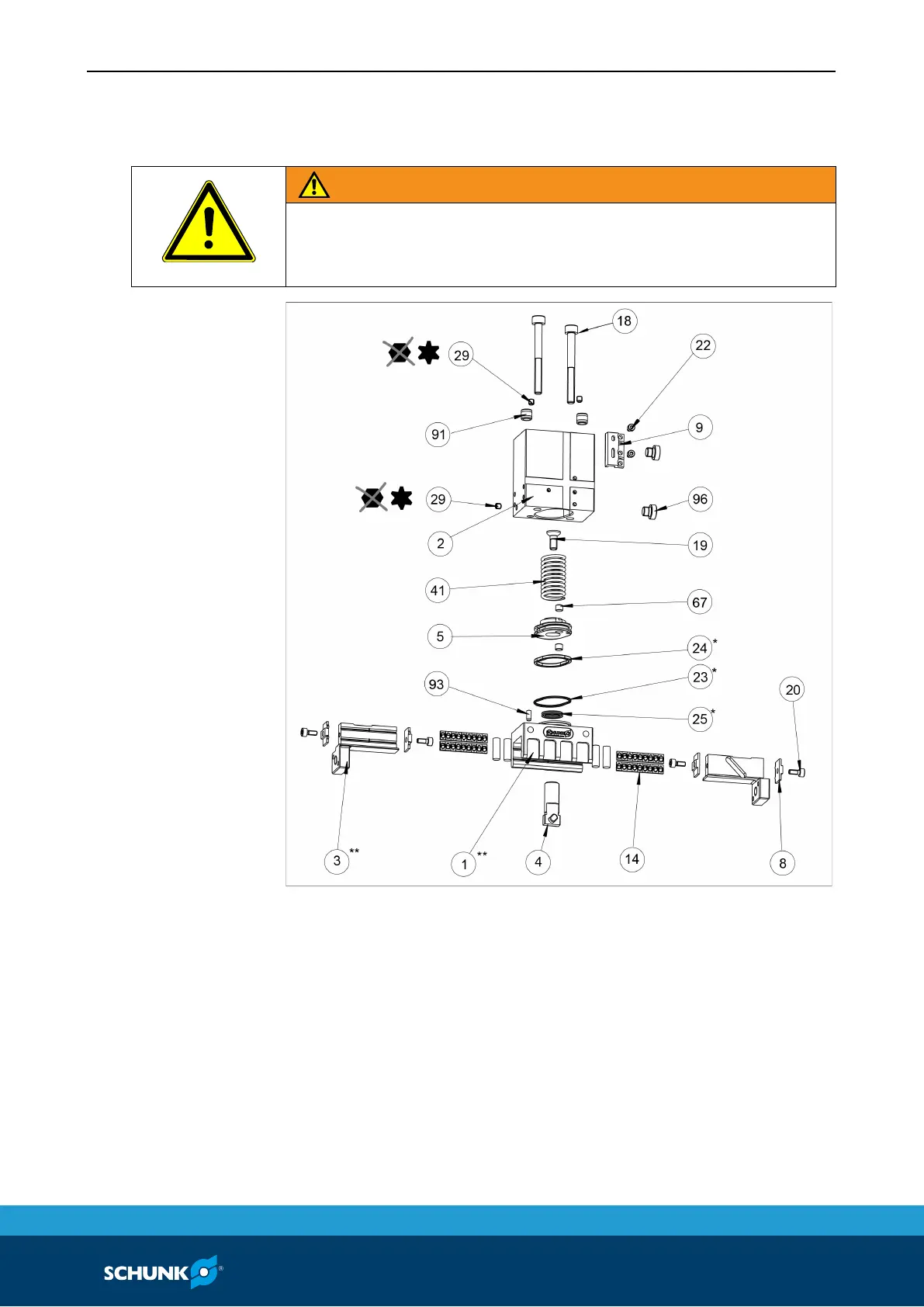

Fig. 26 Assembly of the variant with O.D. gripping

* Wearing part, replace during maintenance.

Included in the seal kit. Seal kit can only be ordered com-

pletely.

** Positions are adapted to each other and can not be re-

placed by the customer.
