Assembly
18 04.01|MPG-plus |en
Types available for order (see catalog):
Observe the notes on proper use of the proximity switch in chapter
“IN 40 inductive proximity switch” ( 7.3.3, Page 20)
.
To use the inductive sensor, the gripper has to be retrofitted with a
special mounting kit. This mounting kit is available from SCHUNK for
the models below.

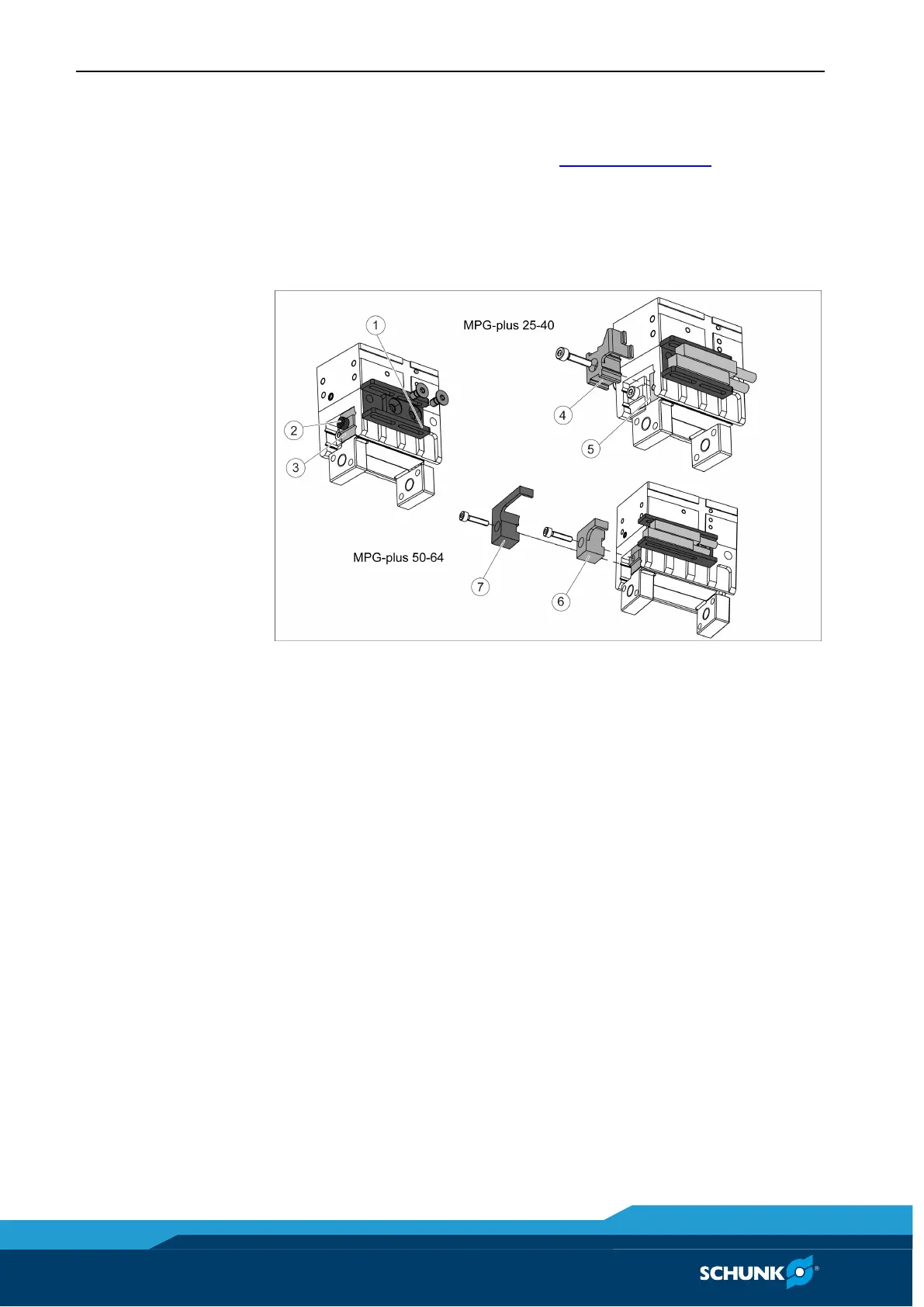

Fig. 7 MPG-plus 25-64
1 Remove the name plate.
2 Fasten the holder (1).
3 Remove the screws (2) and cover (3).
4 MPG-plus 25-40: The switching lug (4) is fastened directly to
the base jaw (5).
MPG-plus 50-64: The switching lugs (6 and 7) with the covers (3)
are fastened directly to the base jaws (5).
5 Insert both proximity switches into the holder (1) with the
switch areas in the direction of the switching lug.
6 Fasten the proximity switch using the screws.
Mounting kit
Assembly
