Types available for order (see catalog):
• MMS-P 22-S-M8-PNP
• MMSK-P 22-S-PNP
• V2-M8-4-2XM8-3
The MMSK-P 22-S-PNP features a cable with open strands so that it
can be connected by means of terminal contacts.
The V2-M8-4-2XM8-3 distributor is used to convert the 4-pin con-
nector plug of the MMS-P 22-S-M8-PNP sensor to two standard M8
plugs with 3 pins each.
Sensor can be damaged during assembly.
• Do not exceed the maximum tightening torque of 10 Ncm for
the set screws.
NOTE
Ferromagnetic material changes the switching positions of the
sensor. For example: Adapter plate made of ordinary steel.
At ferromagnetic adapter plates:
• The module must firstly be mounted on the adapter plate
• Then, the positions of the magnetic switch have to be set

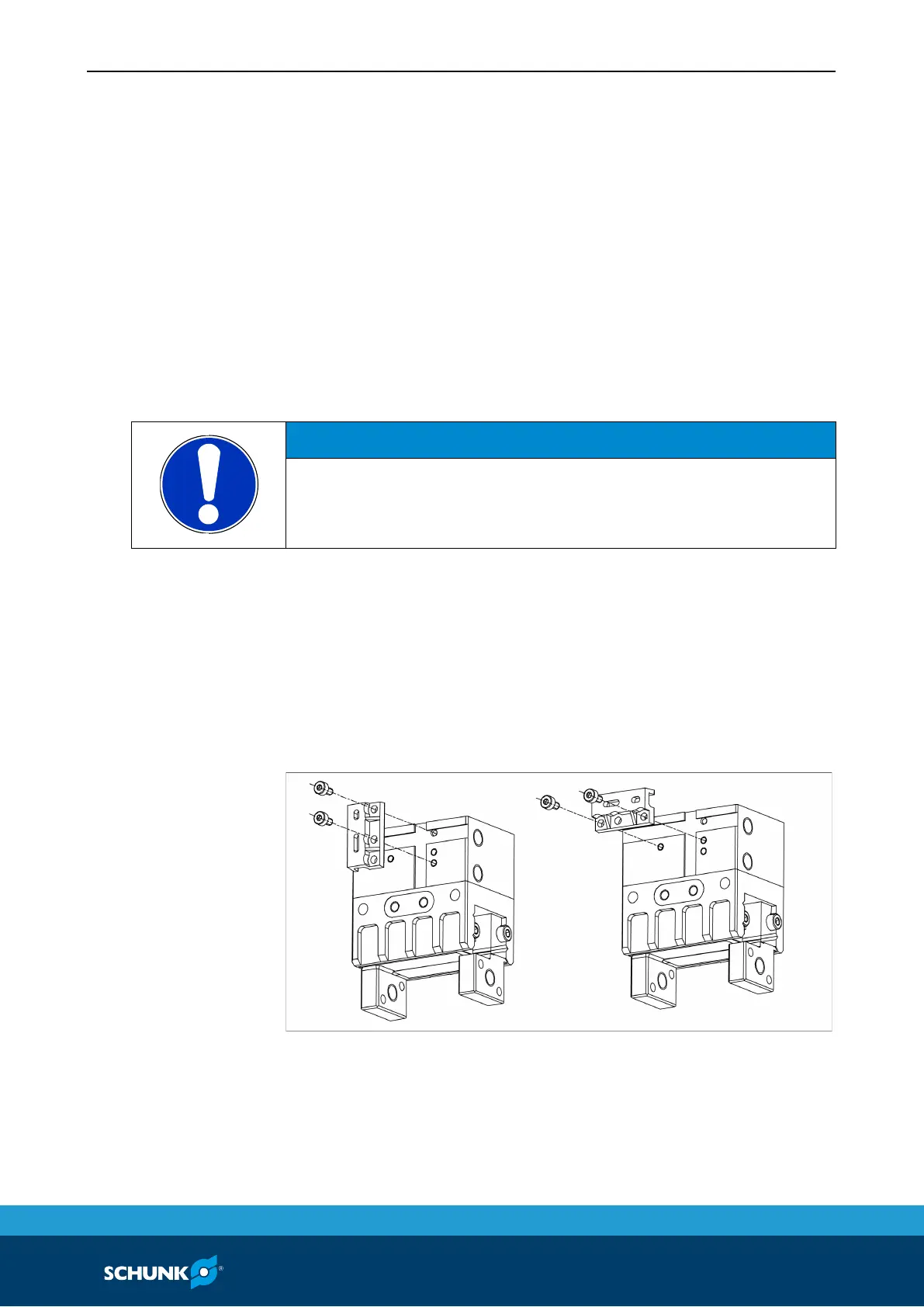

Fig. 14 Vertical / horizontal attachment of the holder
The holder is mounted in the vertical direction when delivered.
The holder can be mounted in the horizontal direction for horizontal
use of the magnetic switch.
Mounting of the sensor
Mounting of the
