Assembly
04.01|MPG-plus |en
25
NOTE
If the magnetic switch is installed horizontally, the query in regard
of undesirable switching points has to be checked. If there are
more switching points than the set positions, then the hysteresis
for the magnetic switch must be taught in again.

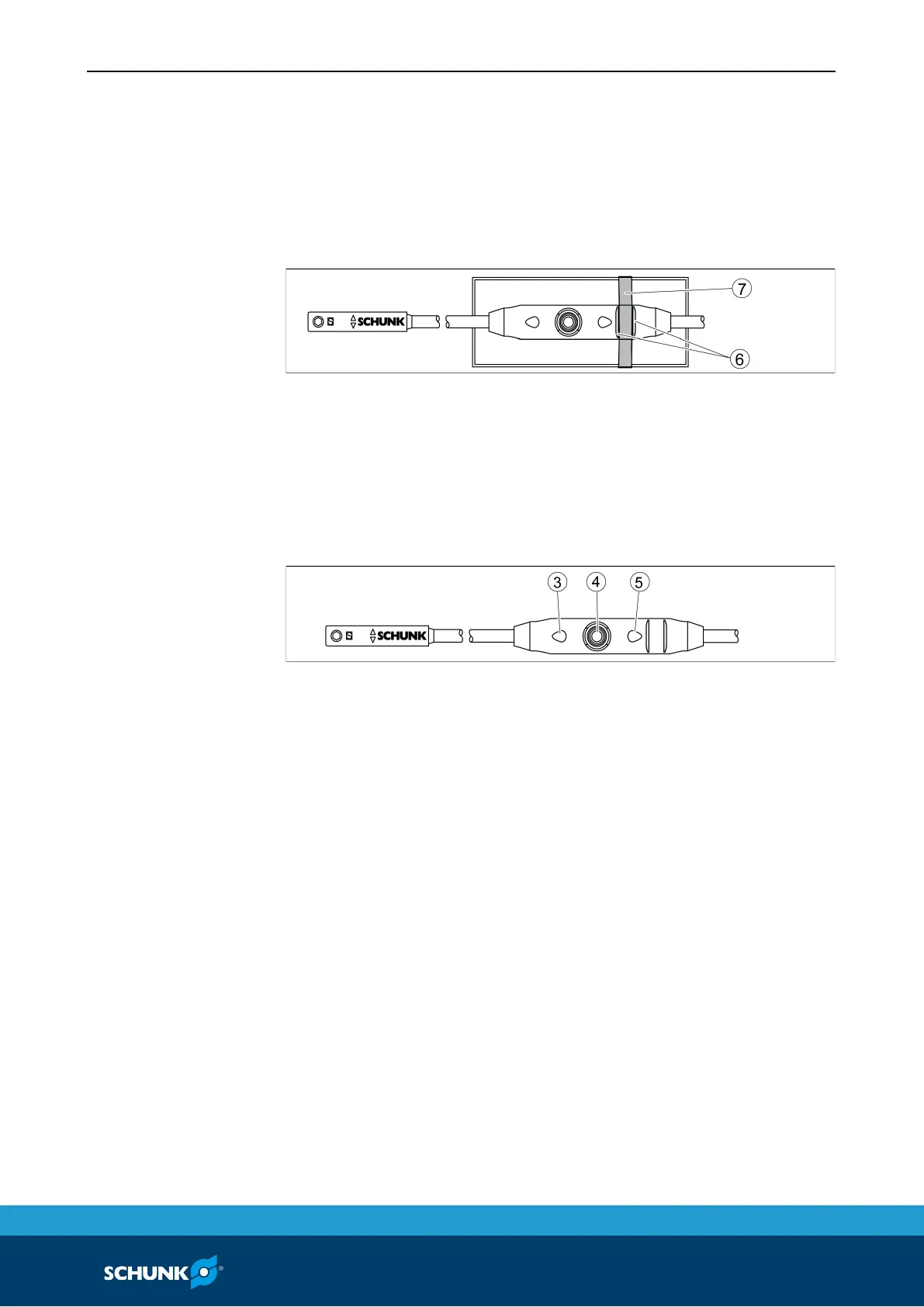

Fig. 17
1 To relieve the cable, the electronics have to be fixed in place us-
ing cable ties (7).
There are ribs (6) in place on the electronics for mounting pur-
poses.
Fig. 18
1 Press the Teach button (4) for 2 seconds.
After 2 seconds, LED 1 (3) flashes.
2 Move the gripper to position 1 (e.g. "Open").
3 Briefly press the Teach button (4).
LED 1 (3) lights up and LED 2 (5) flashes.
4 Move the gripper to position 2. (e.g. „-2mm“).
LED 1 (3) goes out as soon as switching point 1 is exited.
5 Briefly press the Teach button (4).
LED 2 (5) lights up.
The switching points are set.
switching points
