SCHUNK MPG-plus User Manual

Assembly
04.01|MPG-plus |en
31
1
2
3
3

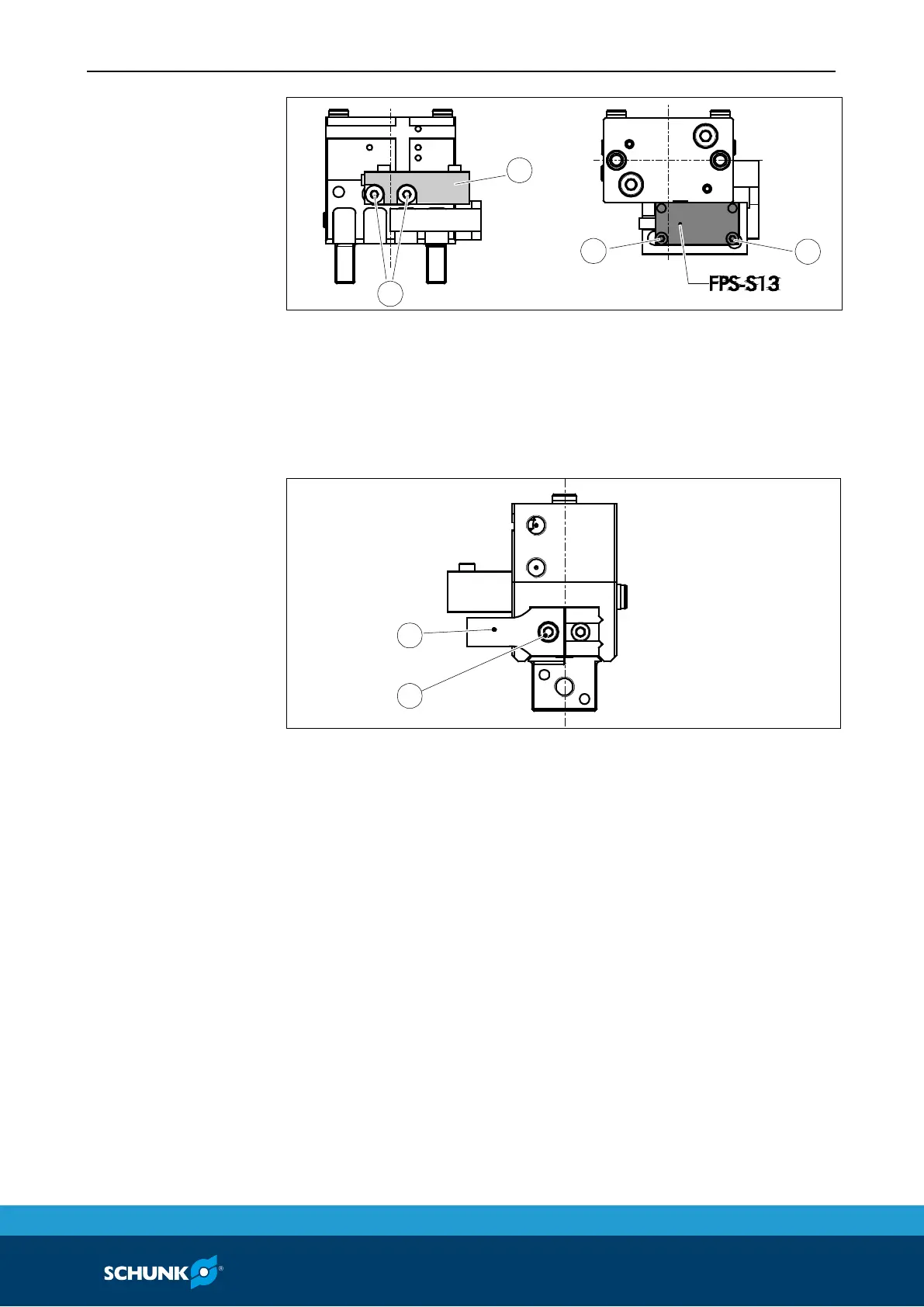

Fig. 23 FPS mounting kit for MPG-plus 40-64
1 Fasten the bracket (1) with the two screws (2).
2 Fasten the FPS-S13 position sensor to the bracket (1) using the
two screws (3) (max. tightening torque 1 Ncm).
4
5
Fig. 24
3 Fasten the control cam (4) to the finger using the screw (5).
Magnets have to point toward the sensor area of the FPS-S13
position sensor.
 The adjustment of the sensor is described in the operating ma-
nual for the sensor.
Mounting of the
mounting kit
