SCHUNK VERO-S - 7 Mounting; Connection; Programming of the AFS3 138 MMS; Installing the AFS3 138 MMS to the NSE3 138 (-V1) (-K)

Mounting / connection / programming of the AFS3 138 MMS
22 01.00|1372106_AFS3 138 PMI_AFS3 138 MMS |en
Mounting / connection / programming of the AFS3
138 MMS
Installing the AFS3 138 MMS to the NSE3 138 (-V1) (-K)
The AFS3 138 MMS is installed on a VERO-S NSE3. The system is
supplied partially assembled. Step-by-step installation instructions
makes assembly of the multi-part monitoring unit easier.
Adjustment of the monitoring sensors is described in chapter 11
( 12, Page 36)
. For the description, refer to the assembly

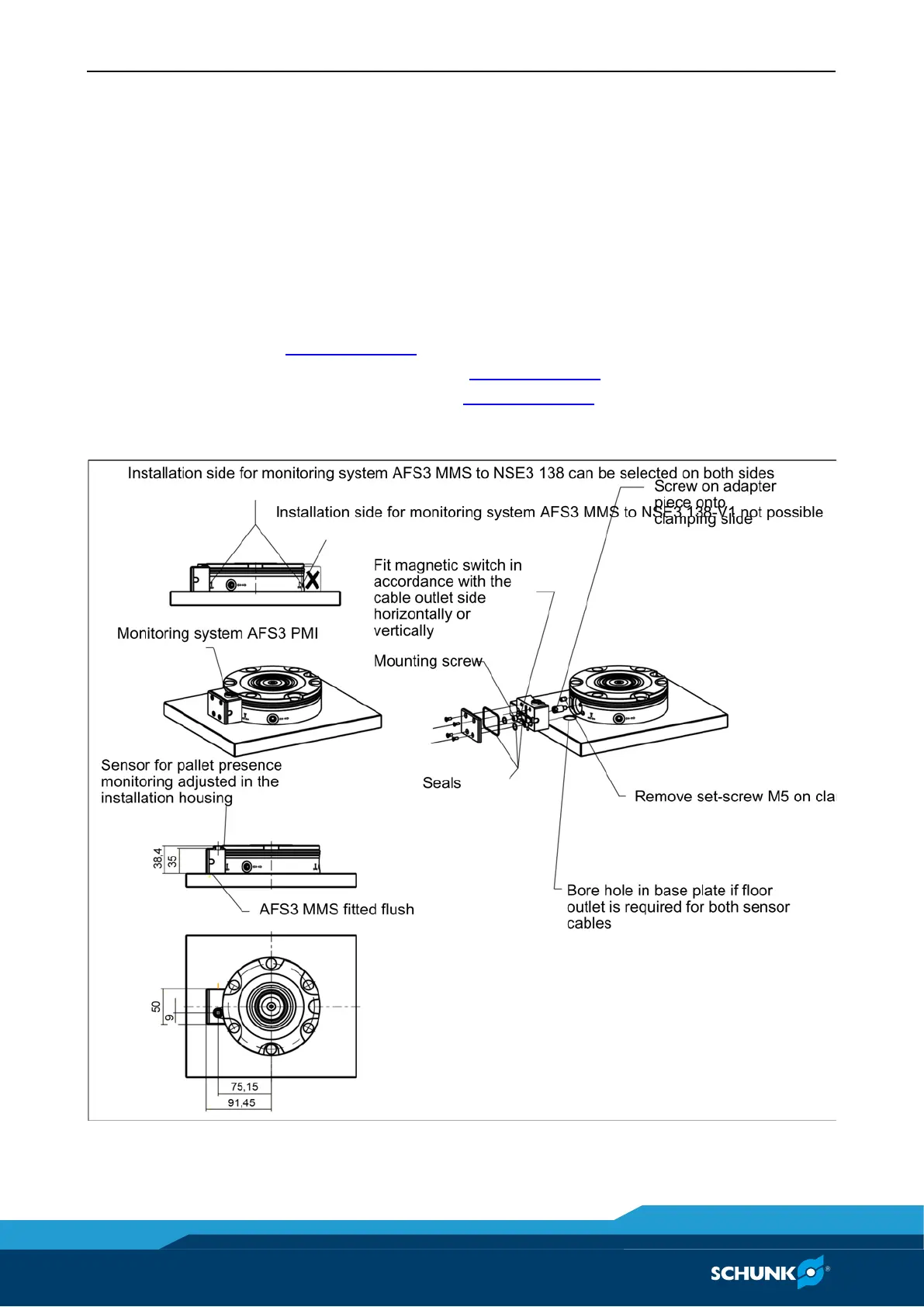

drawing in chapter 10 ( 11, Page 34) AFS3 138 MMS and the
parts list in chapter 9 ( 10, Page 33).
Installing the AFS3 138 MMS to the NSE3 138 (-V1) (-K)
Installing the AFS3 138 MMS
7
7.1
