9.3 Changing Fuses
There are two types of fuses for different power supply voltage:
For 110 V: use T 3.15 AL fuse
For 230 V use T 1.6 AL fuse

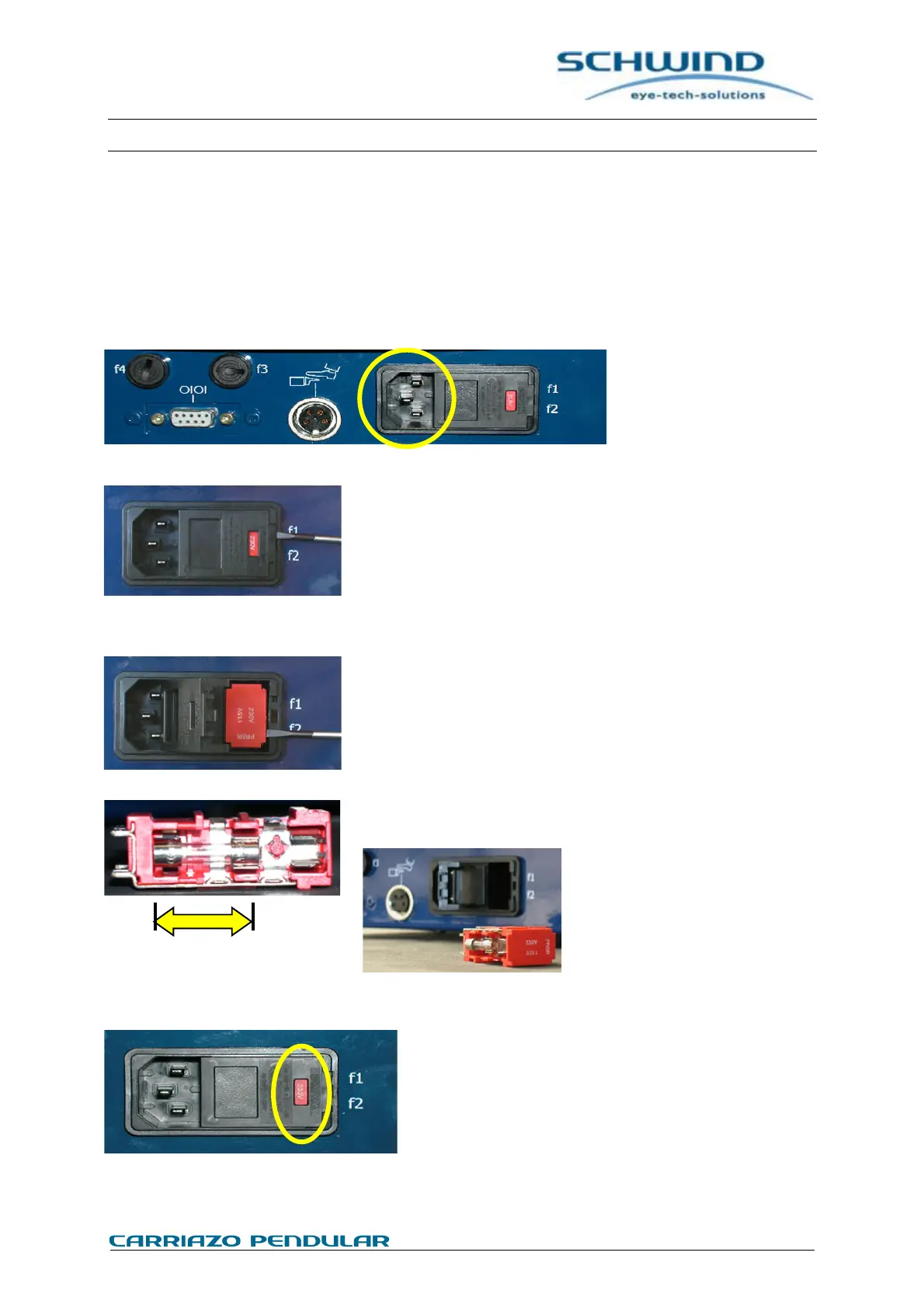

To change the fuses and to select the correct voltage, the following steps have to be carried out:
Disconnect the power
plug on the rear side of the
console
Consider the selected voltage which is shown in the small red
window
Open the black cover next to the fuses by using a screwdriver.
Unplug the red fuse holder by using a screwdriver.
At the left and right side of the red fuse holder are the fuses
which can be now replaced.
Pay attention to the position of the fuses!
After insertion of the red fuse holder and closing the cover, pay attention that the value, (voltage
indication), which is readable in the red window
corresponds with the provided mains power value.
