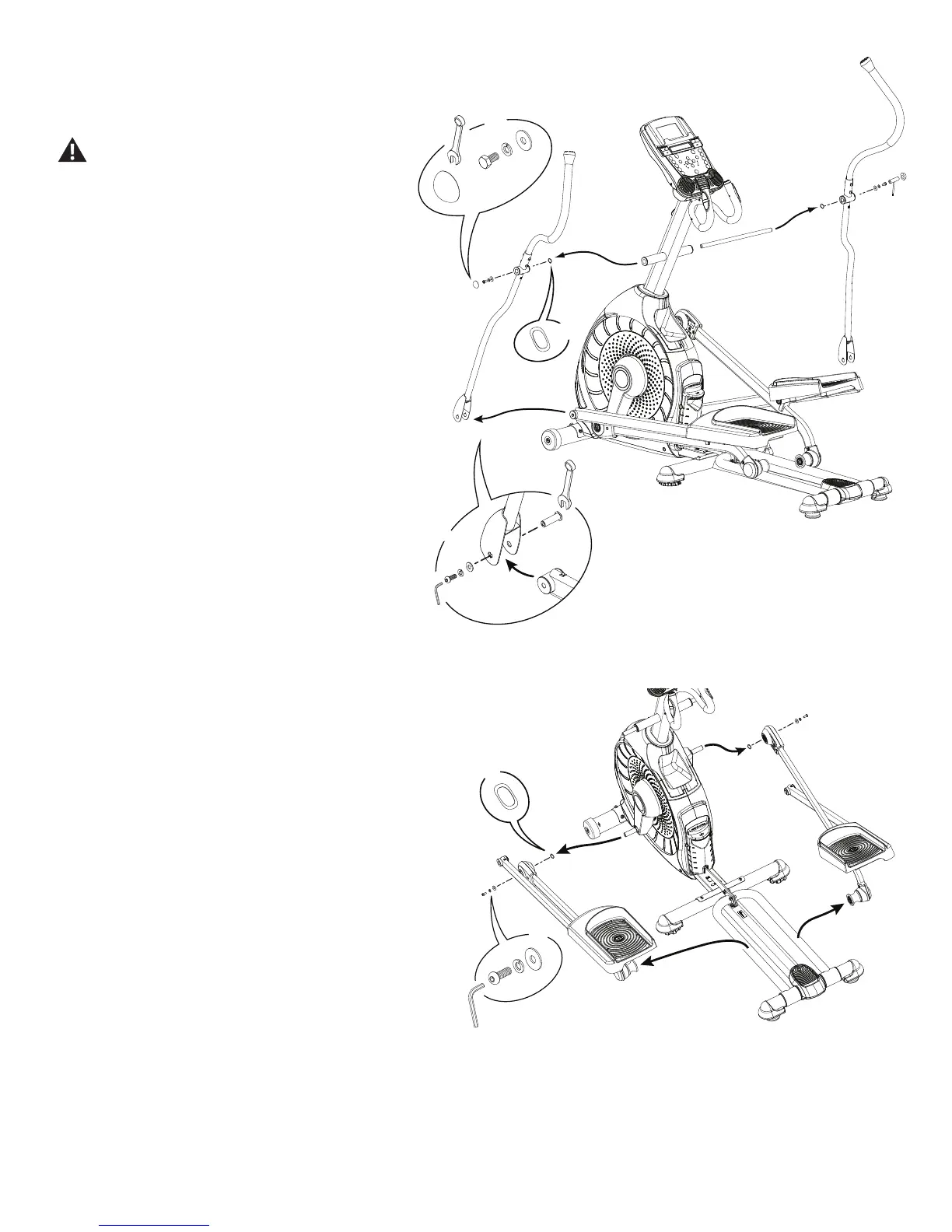

2. Using a 6mm hex key and a 13mm wrench, remove the
two indicated bolts from the Lower Handlebar Arms and
Pedals. Set the hardware safely aside for reassembly.
Be aware that the Handlebar Arms will be loose
and may pivot when the hardware is removed.
This step may require two people.
3. Using a small flathead screwdriver, pry the Caps from
the Lower Handlebar Arms.
4. Using a 13mm wrench and a pair of pliers, remove the
hardware from the Lower Handlebar Arms and the Arm Pivot
Rod. Remove the hardware, Upper and Lower Handlebar
Arms, and Arm Pivot Rod. Set them safely aside for reassem-
bly.
Note: The hardware on both ends of the Arm Pivot Rod will
need to be held to remove it.
5. Using a 6mm hex wrench, loosen and remove the indicated hardware
from the Legs, and set it safely aside for reassembly. On each side of the
machine, remove the Leg and Pedal together from the Rail Assembly and
set them safely aside for reassembly.
NOTICE: This step may require two people.
X2
X2
6mm
6mm
X2
X2
X2
13mm
To Next Page
