To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall
outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power cord in a
secure location.
Note: Your machine may not match the image. For reference only.

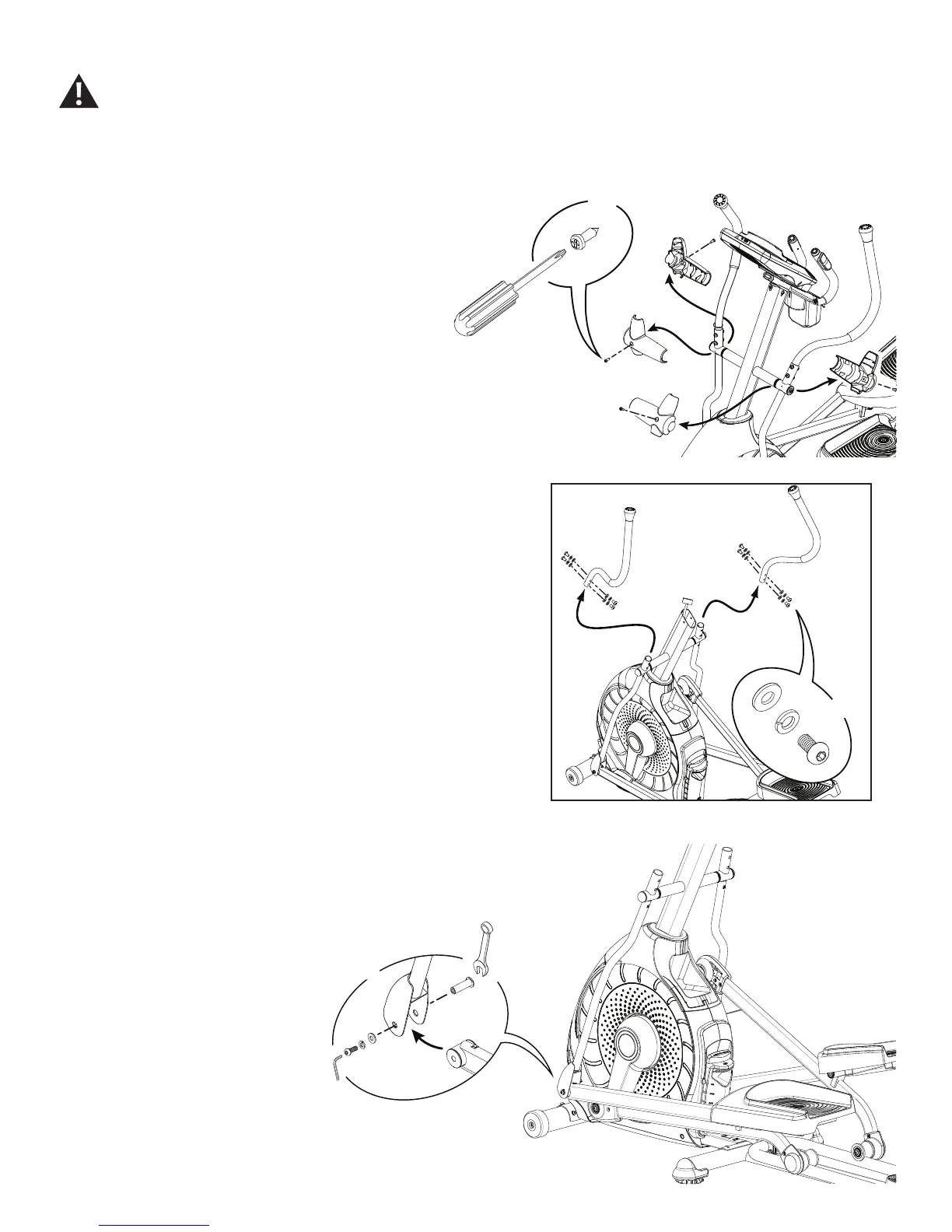

1. 470 / Journey 4.5 only-
loosen and remove the 4 screws from the Handlebar Shrouds. Remove the
Handlebar Shrouds and set them safely aside.
2. Using a 6 mm hex wrench, remove the 8 indicated bolts from the Upper
Handlebar Arms.
3. Remove the Upper Handlebar Arms and set them safely aside.
4. Using a 6 mm hex wrench and a 13mm wrench, remove the 2 indicated
bolts from the Lower Handlebar Arms and Pedals.
X8
#2
X4
6mm
X2
13mm
Console-static handlebar not shown for clarity
