Schwinn 430 - Page 66

66
X2
13 mm
X2
6mm
5. 430 / Journey 4.0 only-

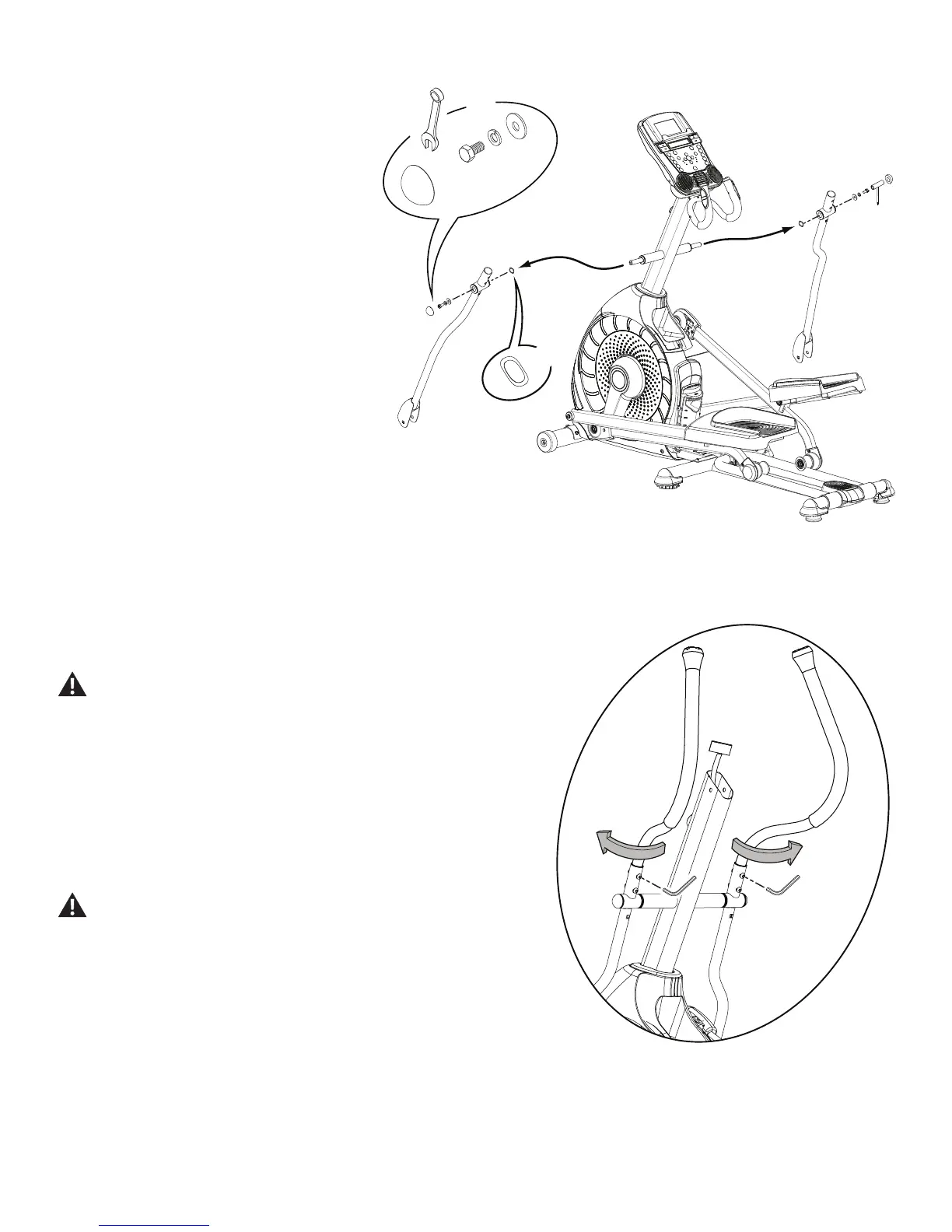

using a small Flathead screwdriver, pry the Caps from
the Lower Handlebar Arms.
6. Using a 13mm wrench and a pair of pliers, remove
the hardware from the Lower Handlebar Arms and the
Arm Pivot. Remove the Handlebar Arms and set them
safely aside.
Note: The hardware on both ends of the Arm Pivot
Rod will need to be held to remove it.
7. Installation is the reverse procedure.
Make sure the Upper Handlebar Arms are secure before
you exercise.
8. Discard the old parts.
9. Inspect your machine to ensure that all hardware is tight and compo-
nents are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
