2 Important Information

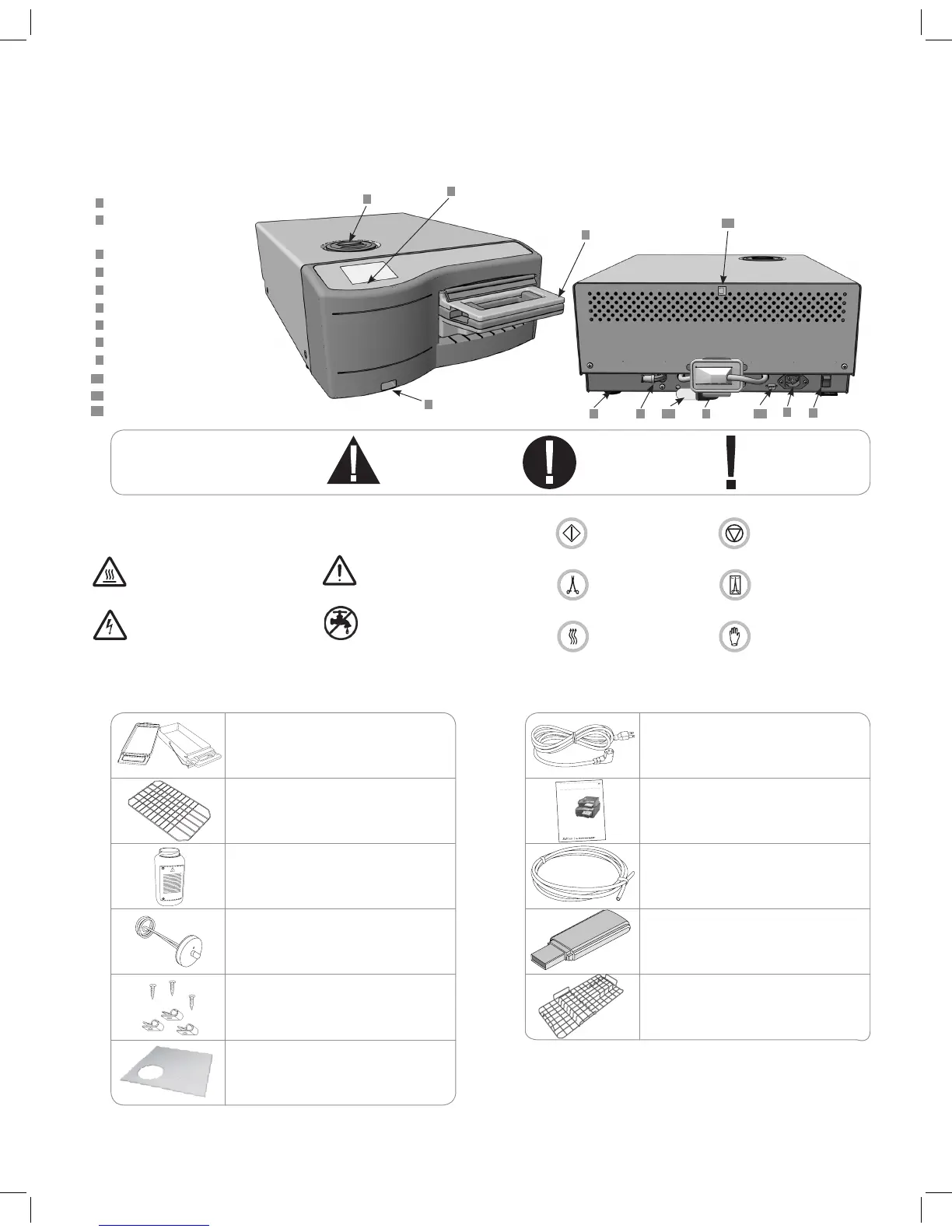

2.3 STATIM 5000 G4 — Unit Overview
The following symbols appear on the unit:
When you receive your STATIM 5000 G4, the items listed below will be included. If any of the items are
missing, contact your dealer immediately.
Cassette Tray and Lid
Unwrapped
Instrument Rack
Waste Bottle
Bottle Lid Fitting
Tube Mounting Hardware
Statmat
Power Cord
Operator’s Manual
Exhaust Tube
USB Memory Stick
Wired Pouch Rack
The following symbols appear
in the margins of this book.
A potential hazard
to the operator.
A situation that
may lead to a
mechanical failure.
Important
information.
1
11
12
10
9
8
7
6
5
4
3
2
LCD Touchscreen
Reservoir cap /
water filter
USB port
Power switch
Power cable port
Leveler feet
Exhaust tube port
Biological filter
Cassette
RS232 port
Ethernet port
Air filter
Caution: Hot Surface and/or
Hot Steam
Caution: Risk of electrical
shock. Disconnect supply
before servicing
Caution: Refer to user
manual for details
Steam distilled water or
VistaPure deionized (do not
use tap water)
START
BUTTON
UNWRAPPED
CYCLE
HEAVY DUTY
UNWRAPPED
CYCLE
STOP
BUTTON
WRAPPED
CYCLE
RUBBER /
PLASTIC CYCLE
1
11
1012 8
6
5
4
2
7
9
3
