SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
12
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Step 1:
Use the tools and follow the steps 1 thru
5 of the “Left Handle Removal” section
(pages 5 thru 7).

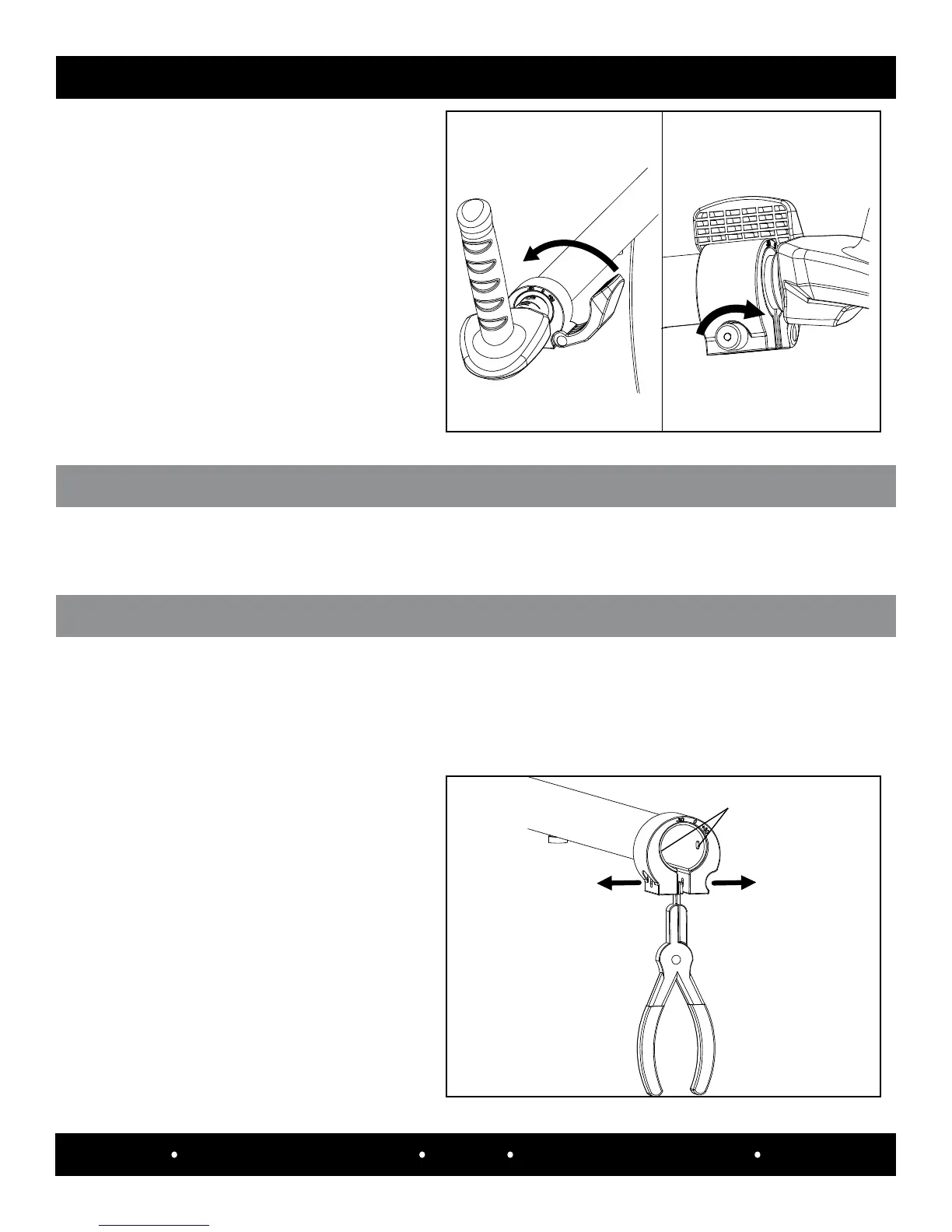

Tighten the thumb nut clockwise, then
clamp the handlebar. The handlebar should
not move, if it does then continue to
unclamp the handle and turn the thumb,
then reclamp until the handlebar does not
move.
Step 9:
ALIGNMENT TABS
SPECIFICATIONS
rIghT hAnDLEBAr rEpLAcEmEnT
SPECIFICATIONS
LEFT AngLE InDIcATor cLAmp rEmovAL
Step 2:
Using a separation tool, place the tool
in between the angle clamp’s (#A5135)
opening and separate, so the alignment
tabs of the clamp are dislodged from the
tube hole opening.
Tools Required: * Angle Clamp Separation Tool
Follow the steps in the “Left Handlebar Replacement” section for the right handlebar (#A5170).
