Use the tools and follow the steps 3 thru 9 of the “Left Handlebar Replacement” section (pages 10 thru 12).
Step 2:

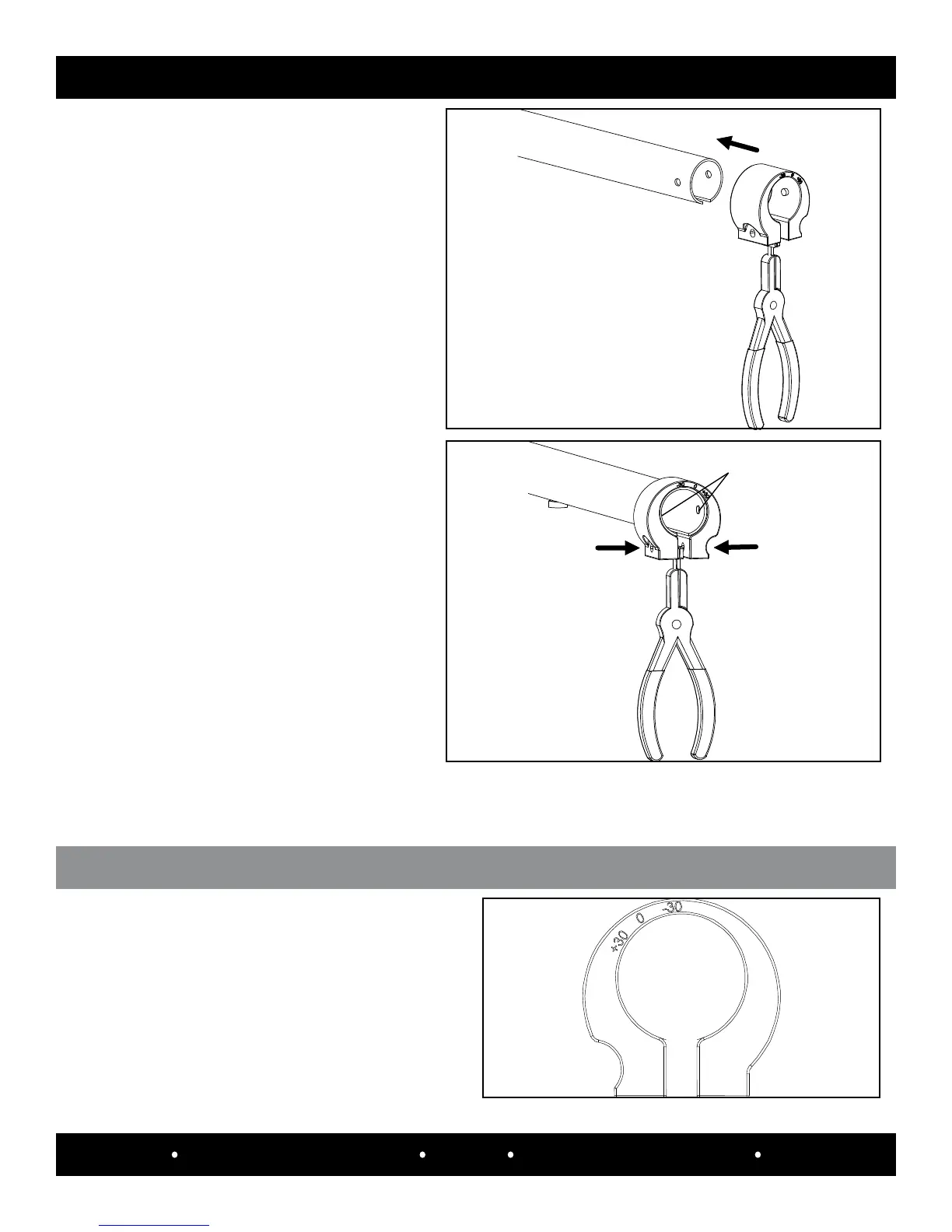

Place the separation tool inside the clamp
opening and spread apart, sliding it onto
the tube.
Step 3:
Spread the clamp far enough so that the
alinging tabs of the clamp will slip into the
hole openings of the tube.
Step 4:
ALIGNMENT TABS
Follow the “Left Angle Indicator Clamp
Replacement” steps for the right side.
Note: When replacing the right side verify the
“+30” is on the left as shown in the diagram.
SPECIFICATIONS
rIghT AngLE InDIcATor cLAmp rEpLAcEmEnT
To Next Page
