SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
17
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
7/32” Allen Hex

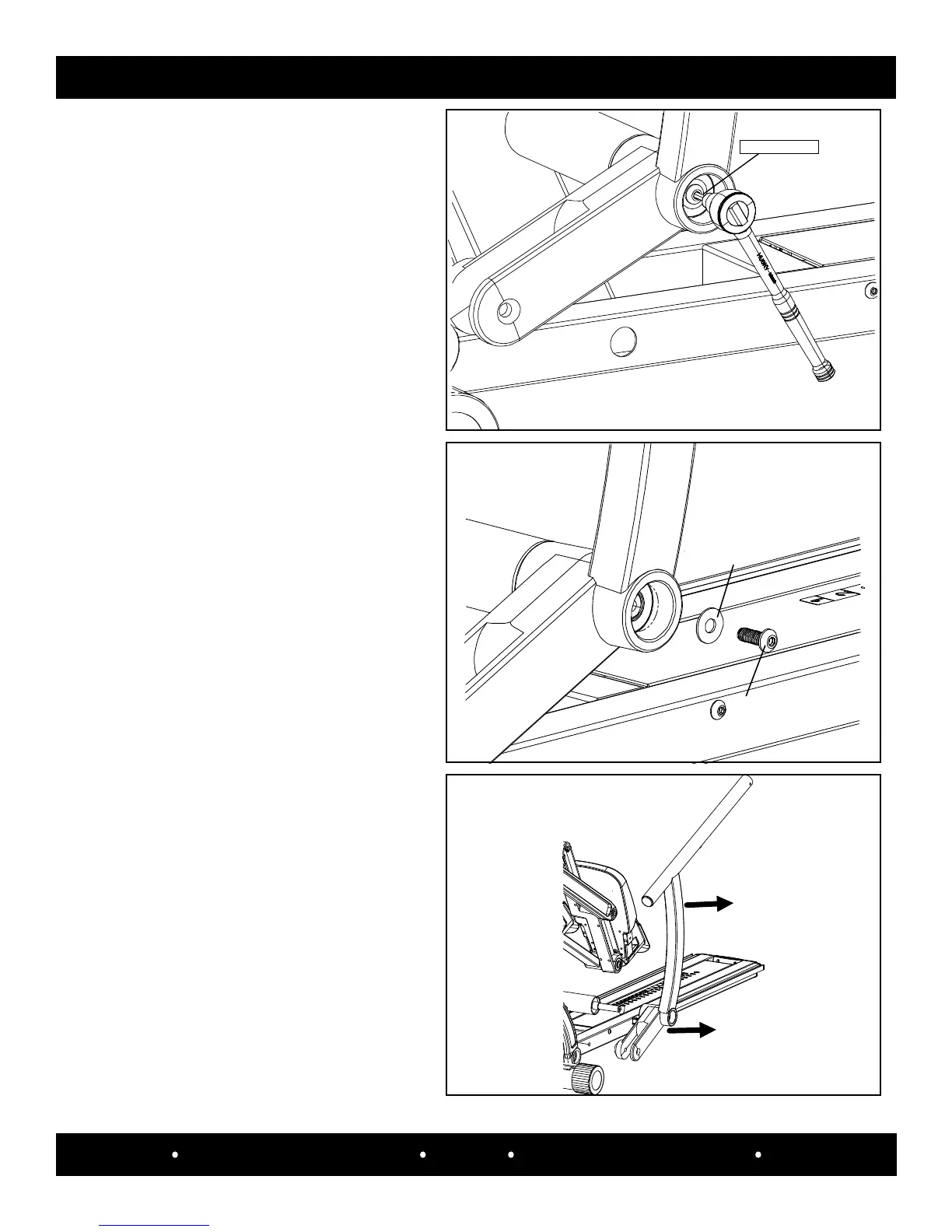

Grab the outer handle assembly (#A5433)
and carefully pull it off of the machine
shaft.
Step 7a:
Use a 7/32” allen hex to remove the
hardware securing the outer handle
weldment to the frame shaft.
Step 7b:
Remove the hardware (a) 3/8” USS
black at washer (#10537-08102) and
(b) 3/8-16 x 1” black socket button head
screw (#10537-08099) .
Step 8:
(A)
(B)
To Next Page
