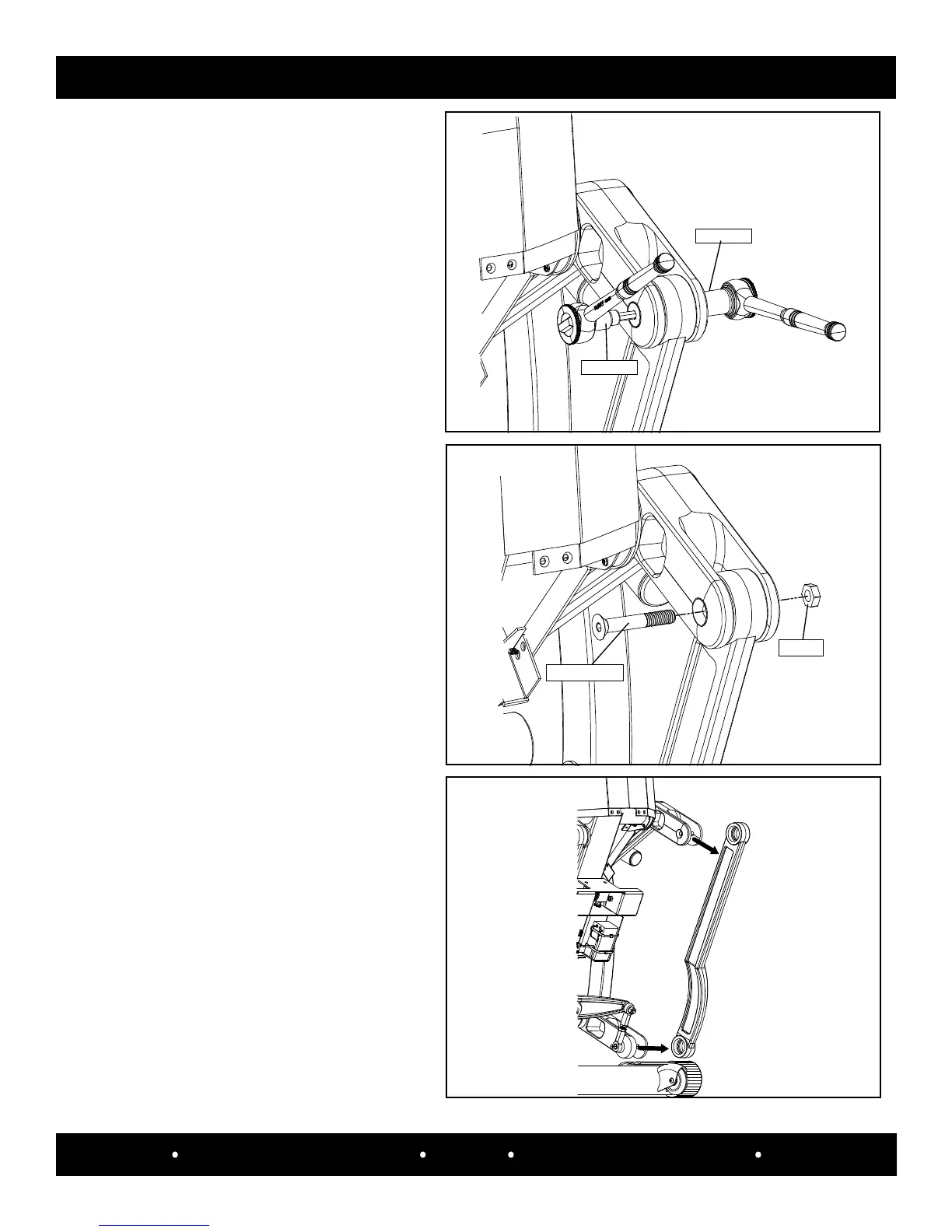

Remove the 7/16-14 x 2 3/4” at head
socket screw (#94333) and the 7/16-14 jam
nut (#36208) .
Flat head Screw
Jam nut
Step 7:
5/8” Socket
1/4” Allen
Step 6:
Place a 1/4” allen hex on the
socket screw and a 5/8” socket on the jam
nut.
34
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
Carefully remove the assembly link
(#A5352) .
Step 8:
To Next Page
