Step 8:
Place the drive belt back onto the brake.
Step 9:
Place the pedal belt back onto the clutch/pulley assembly.
SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
61
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Step 10:
SPECIFICATIONS
LEFT pEDAL STrAp/ BUckLE rEmovAL
* Phillips screwdriver
Tools Required:

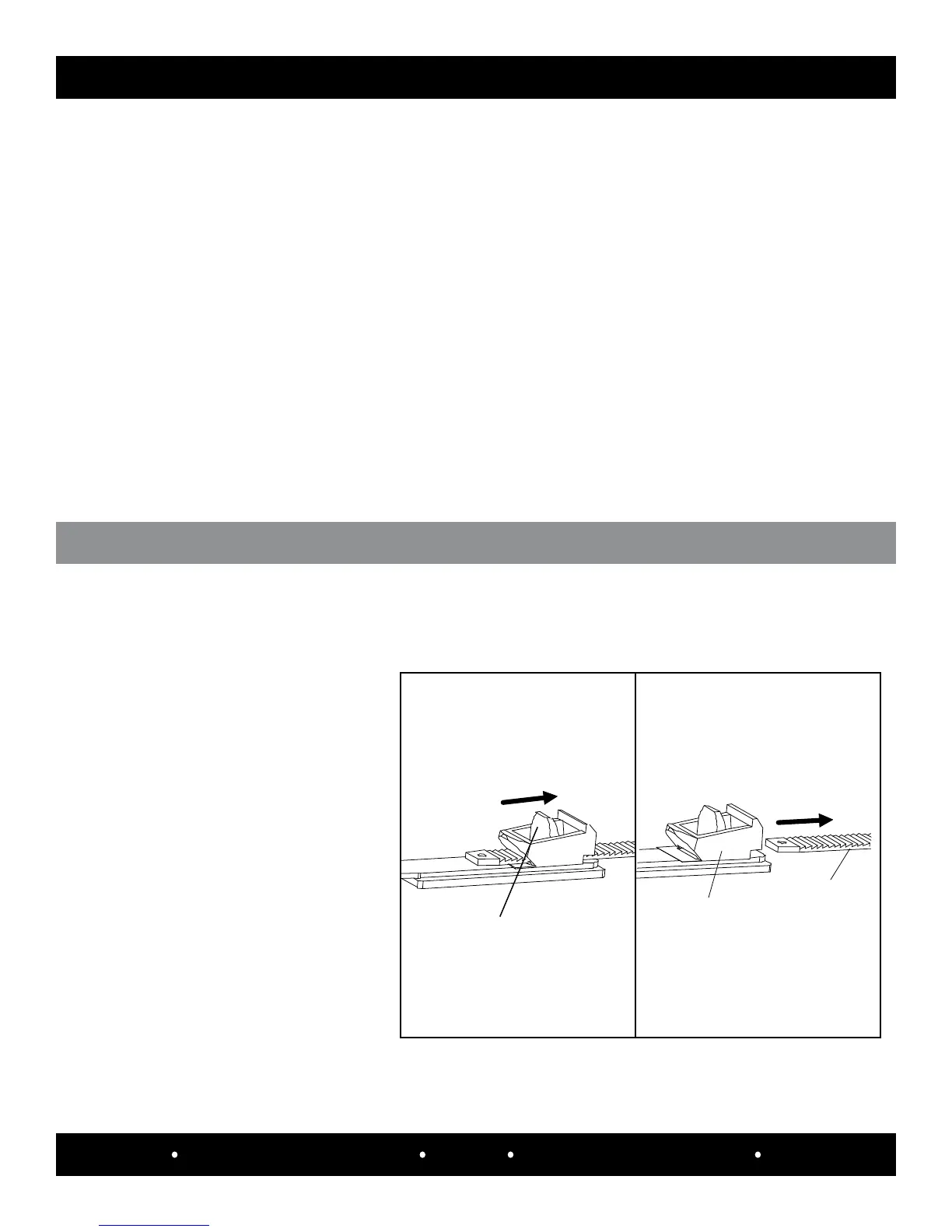

Step 1:
Separate the strap and buckle by pressing
the buckle release tab forward, then pull
the strap away from the buckle.
Push release
tab forward
Strap
Buckle
Reattach the covers and console according to the “Lower/Upper Cover” replacement procedure on page 31.
