Step 3:
Repeat step 2 to remove the pedal strap (#P5470) on the right side of the left foot pedal.
Step 2:

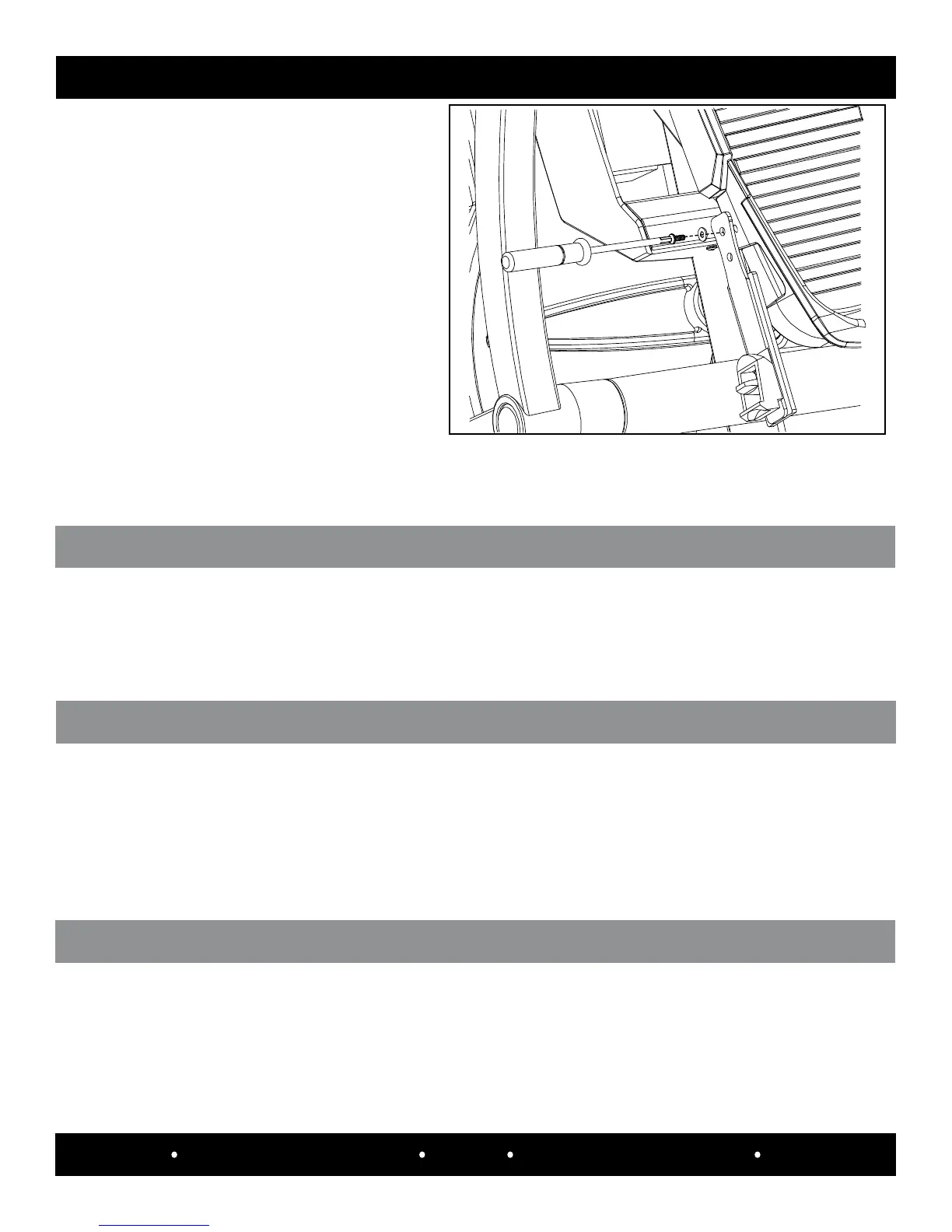

Starting on the left side of the left foot
pedal, use a phillips screwdriver to
remove the #10-24 x 1/2” phillips screw
(#1128957) and #10 at washer (#33074),
then remove the buckle strap (#P5476).
SPECIFICATIONS
LEFT pEDAL STrAp/ BUckLE rEpLAcEmEnT
Step 1:
Repeat step 1 thru 3, but in reverse.
SPECIFICATIONS
rIghT pEDAL STrAp/ BUckLE rEpLAcEmEnT
Step 1:
Repeat step 1 thru 3, but in reverse of the “Left Pedal Strap/Buckle Replacement” section for the right.
Note: The buckle strap should always be attached on the left outside part of the foot pedal
(See step 2 diagram).
SPECIFICATIONS
rIghT pEDAL STrAp/ BUckLE rEmovAL
Step 1:
Repeat steps 1 thru 3 of the “Left Pedal Strap/Buckle Removal” for the right foot pedal.
Note: The buckle strap should always be attached on the right outside part of the foot pedal.
