SCIFIT STEP ONE - Left Foot Pedal

SPECIFICATIONS
LEFT FooT pEDAL rEmovAL
* 3/16” Allen hex with long shaft * Ratchet Tools Required:
SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
63
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT

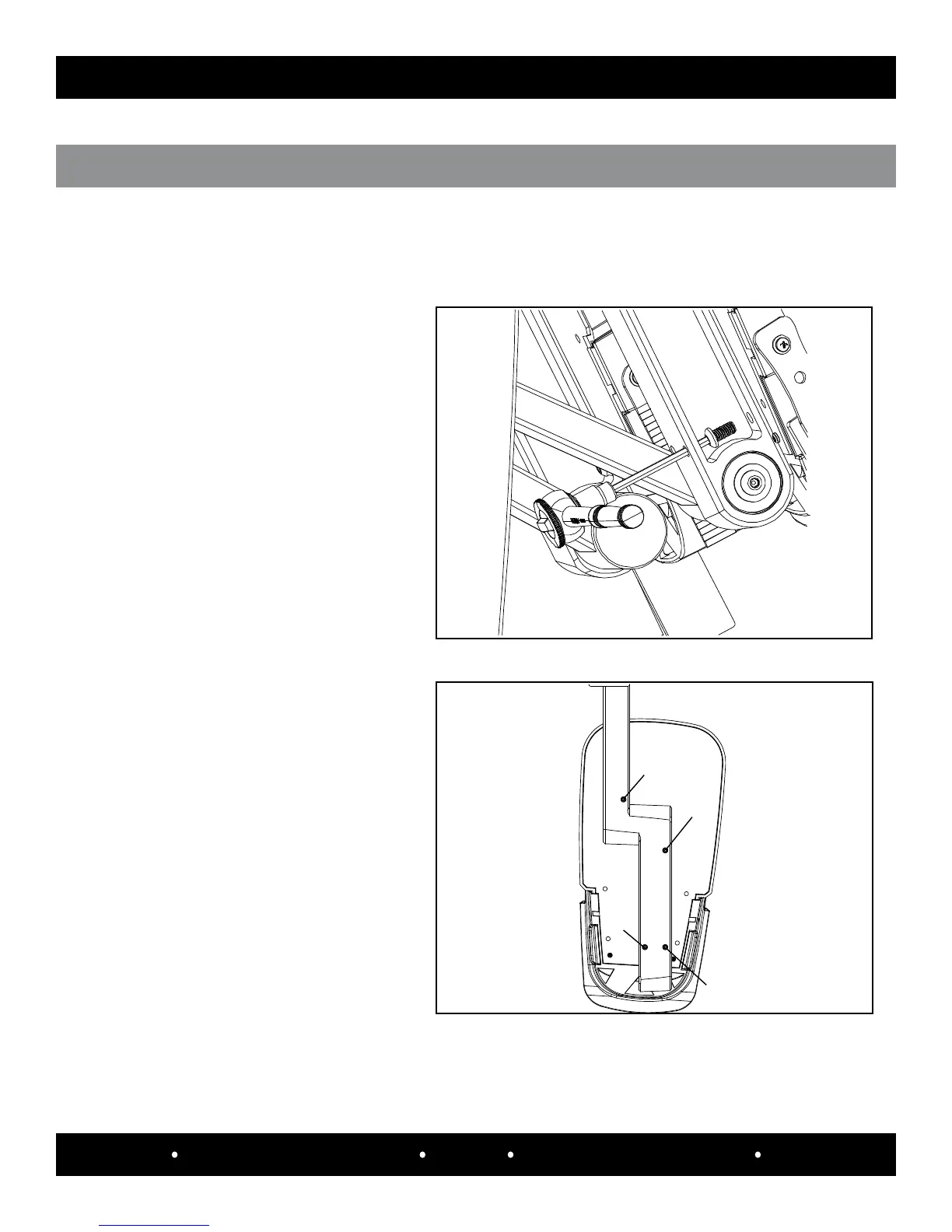

Step 1:
Use a 3/16 allen hex bit with a long shaft
to remove the four 5/16”-18 x 5/8” socket
head screws (#10537-08098) that secure
the foot pedal assembly (#A5390) to the
casting.
1
2
3
4
Screw locations
Underside view
of leftfoot pedal
