ELECTRICAL PARTS REMOVAL/REPLACEMENT
69
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT

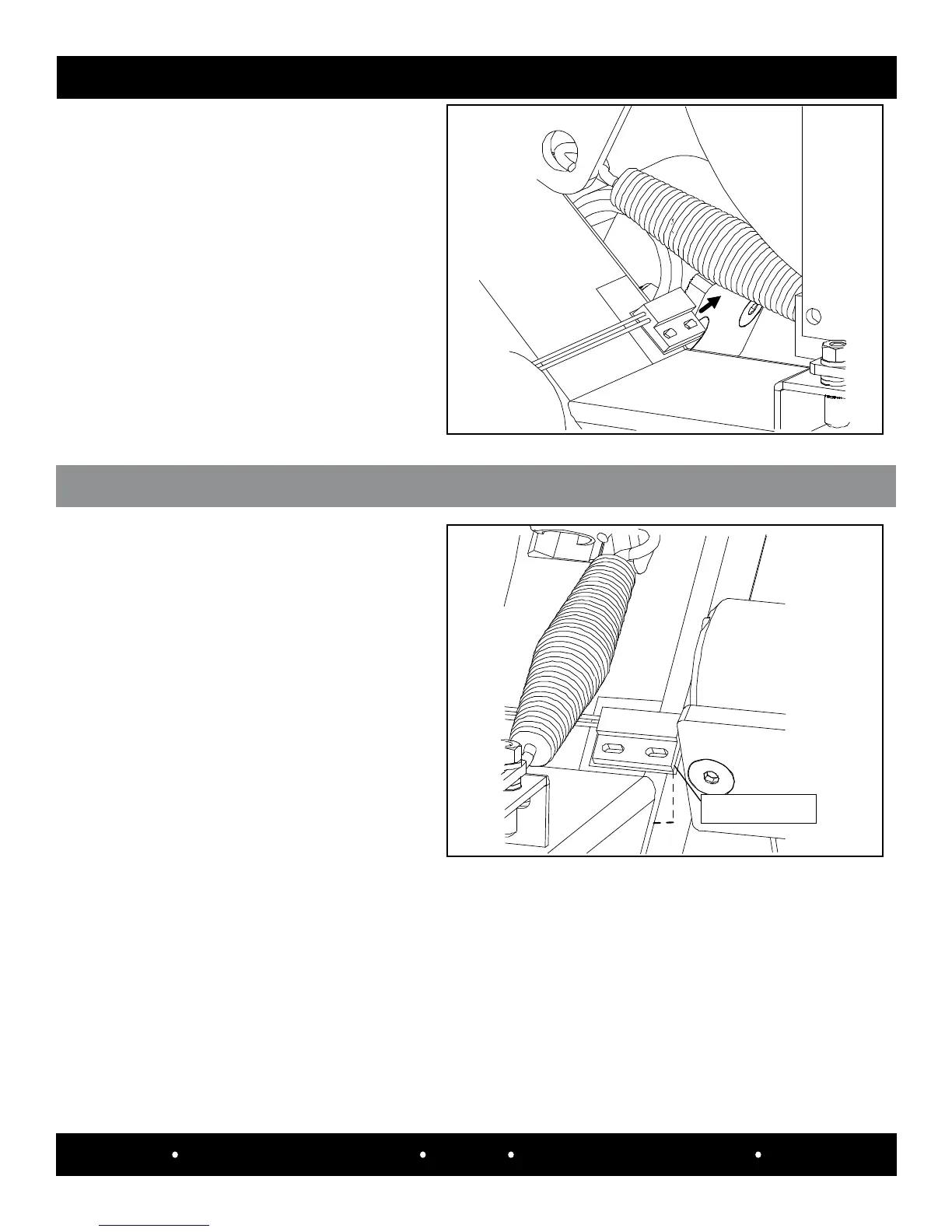

Step 1:
Place the new magnet cable with velcro
onto the location of the previously
removed cable and let it overhang about
1/4” from the edge of the frame tube.
Overlap 1/4” away from
the edge of the frame
Step 4:
Detach the magnet cable from the
securing velcro pieces (#P2754 Hook) and
(#P2755 Loop).
Step 2:
Reconnect the magnet cable to the mid-cable.
SPECIFICATIONS
mAgnET cABLE rEpLAcEmEnT
Step 3:
Reconnect the console and begin a workout to verify the “Step” category on the screen is actually
counting. If not, readjust the magnet cable until a consistant reading is seen on the screen.
Step 4:
Reattach the covers and console according to the “Lower/Upper Cover” replacement procedure on page 31.
