SPECIFICATIONS

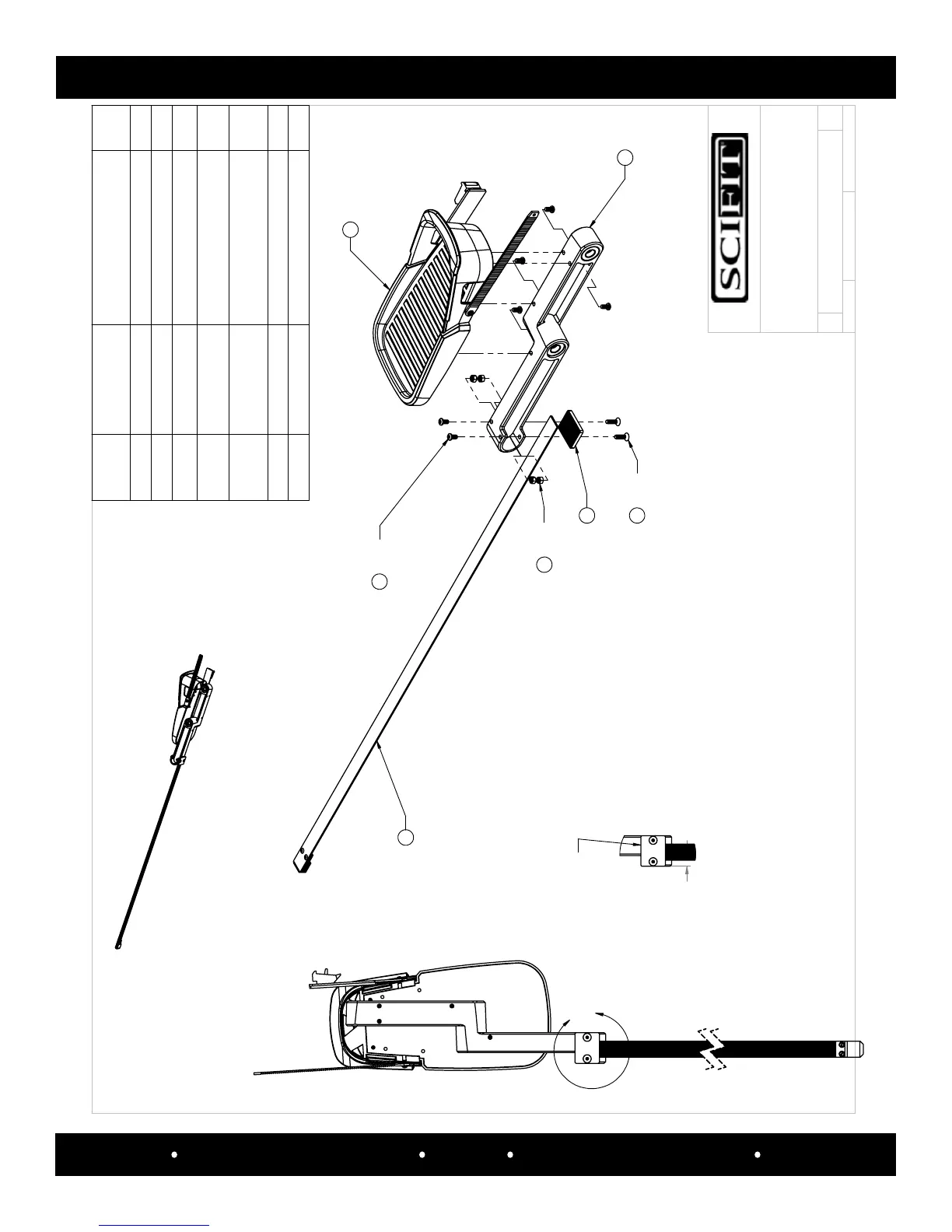

EXPLODED VIEW
90
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
6
1
7
2
5
6X
3
4X
4
2X
A
.50
DETAIL A
SCALE 1 : 8
END OF BELT FLUSH WITH BOTTOM EDGE OF CLAMP
ITEM NO.
PART NUMBER
DESCRIPTION
Defau
lt/QTY
.
1
A5356
ASSEMBLY, ARM
1
2
A5130
CLAMP, BELT, DRIVE,
1
3
10537-08103
5/16-18 G8 Lock Nut, Black
Zinc
4
4
10537-08101
5/16-18 x 1/18 FHSC, Black
Zinc
2
5
10537-08098
5/16-18 x 5/8 BHSC, Black
Zinc
6
6
A5391
ASSY, FOOTPAD, RIGHT,
1
7
A5164
BELT, ASSY,
1
NOT TO SCALE
SIZE
DWG. NO.
A
REV.
WEIGHT:
SCIENTIFIC SOLUTIONS FOR FITNESS
TITLE:
Sheet 10 OF 18
STEPONE
STEPONE SERVICE EXPLODED VIEW
A
