SCIFIT STEP ONE - Page 94

SPECIFICATIONS

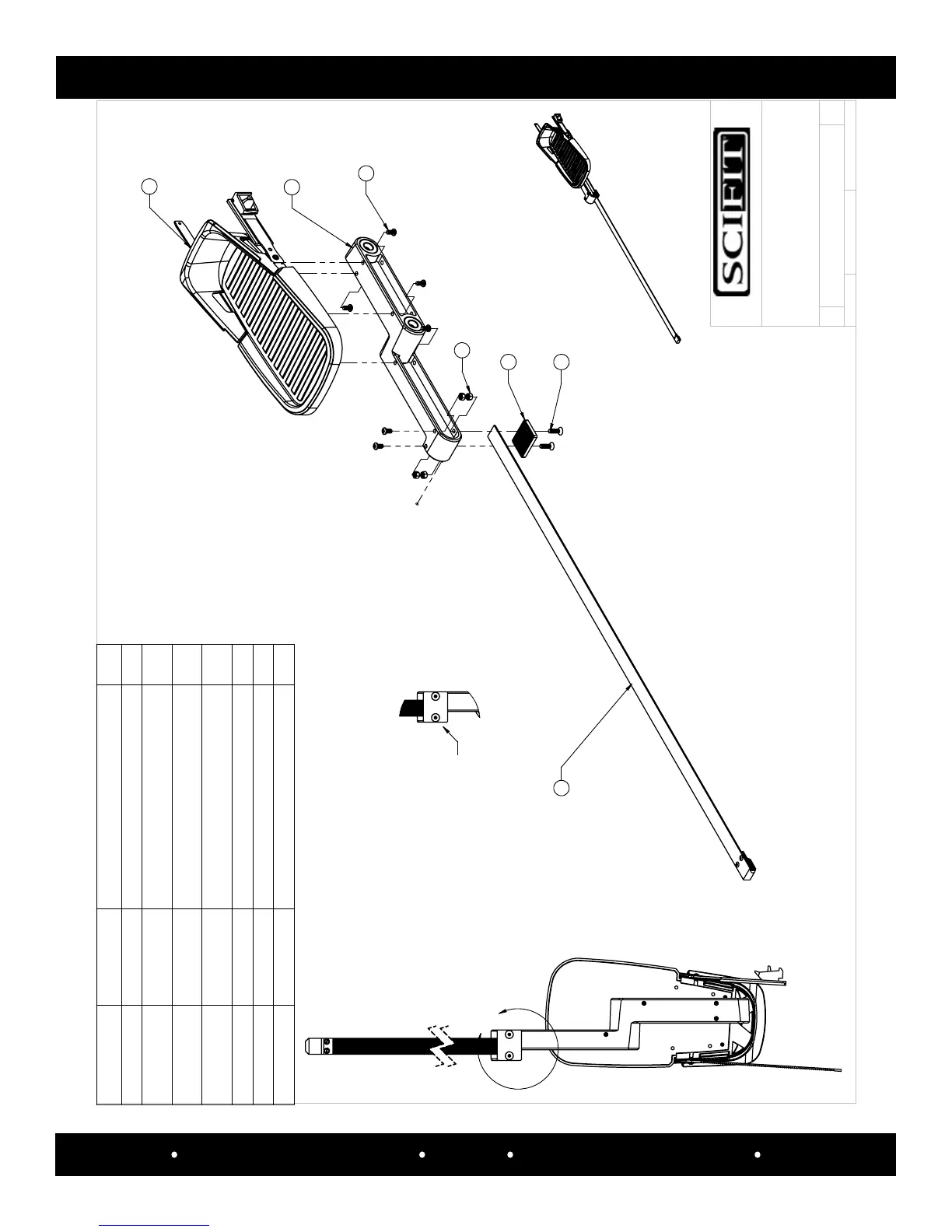

EXPLODED VIEW
91
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
3
2X
2
4X
4
6X
5
7
6
1
A
DETAIL A
SCALE 1 : 8
BELT FLUSH WITH BOTTOM EDGE OF CLAMP
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
A5130
CLAMP, BELT, DRIVE,
1
2
10537-08103
5/16-18 G8 Lock Nut, Black
Zinc
4
3
10537-08101
5/16-18 x 1-1/8 FHSC, Black
Zinc
2
4
10537-08098
5/16-18 x 5/8" BHSC, Black
Zinc
6
5
A5390
ASSY, FOOTPAD, LEFT,
1
6
A5164
BELT, ASSY,
1
7
A5623
ASSY, PEDAL ARM W/MAGNET, LH
1
NOT TO SCALE
SIZE
DWG. NO.
A
REV.
WEIGHT:
SCIENTIFIC SOLUTIONS FOR FITNESS
TITLE:
A
Sheet 11 OF 18
STEPONE
STEPONE SERVICE EXPLODED VIEW
