SCIFIT STEP ONE - Page 95

SPECIFICATIONS

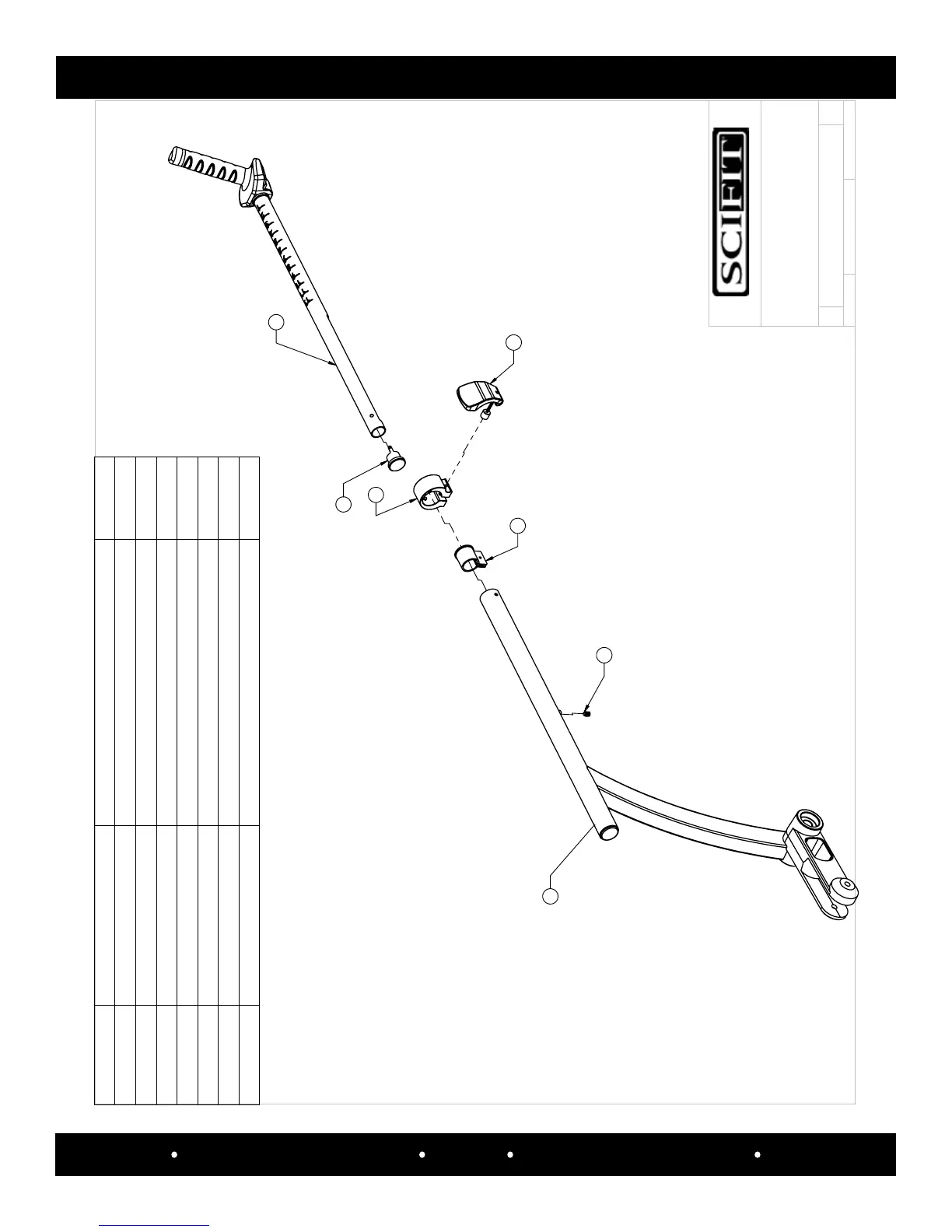

EXPLODED VIEW
92
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
1
2
4
7
6
3
5
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
A5434
ASSY, OUTER HANDLE,
1
2 25903
SET SCREW, DOG POINT,
1
3
A5134
PLUG, HANDLEBAR, INNER
1
4
A5135
SLEEVE, CLAMP,
1
5
A5136
CLAMP, HANDLEBAR,
1
6
A5170
ASSY, HANDLE, OVER-
1
7
A5624
ASSY, CLAMP, HANDLE,
1
NOT TO SCALE
SIZE
DWG. NO.
A
REV.
WEIGHT:
SCIENTIFIC SOLUTIONS FOR FITNESS
TITLE:
A
Sheet 12 OF 18
STEPONE
STEPONE SERVICE EXPLODED VIEW
