Scott Safety ELSA - Assembly Diagram and Parts List

HD-3 HOOD

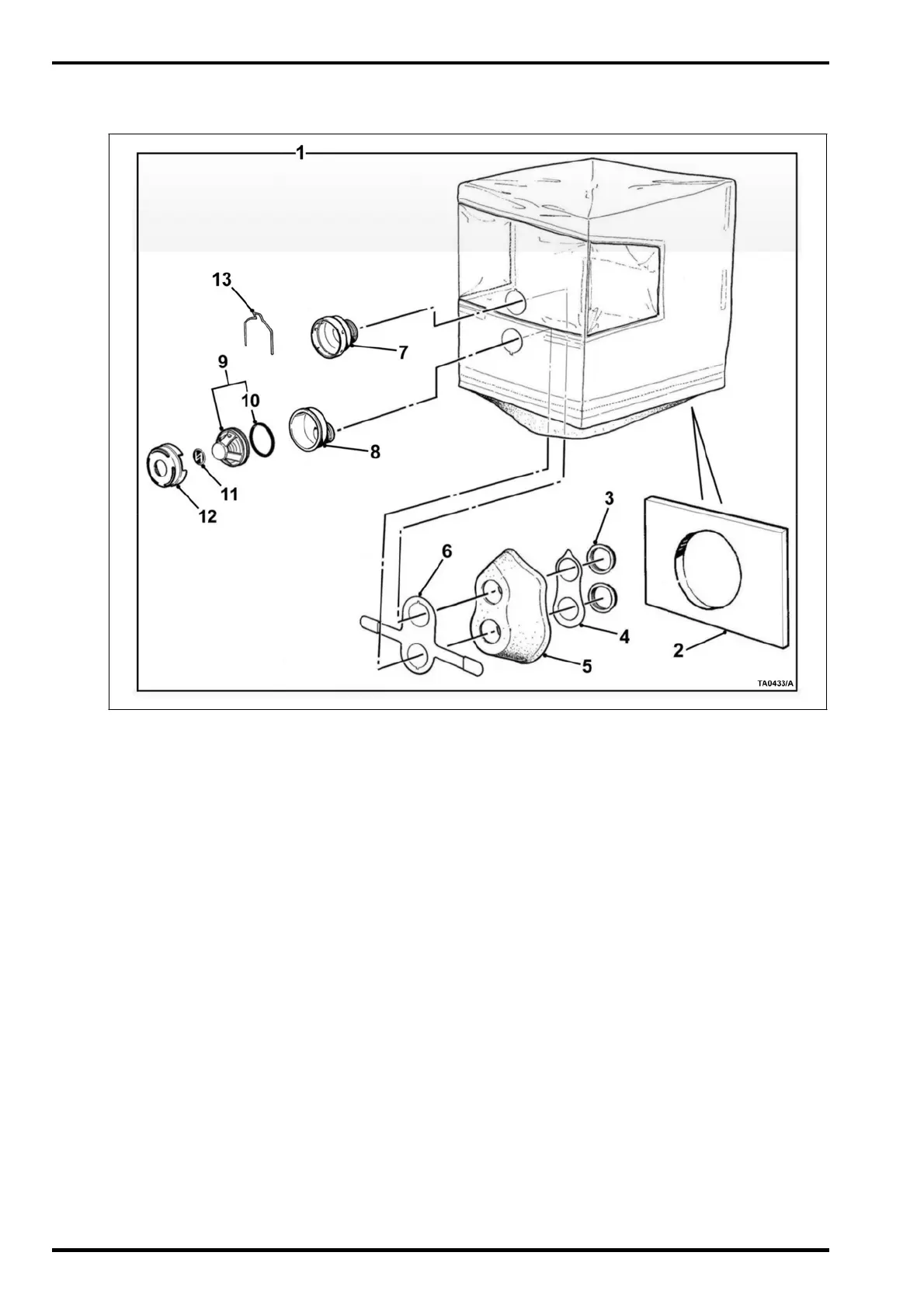

5. ASSEMBLY DIAGRAM AND PARTS LIST
Item Article No. Description Remarks
1
1032984
Hood Assembly
2
-
. Foam Pad
3
-
. Retaining Nut
4
-
. Backing Plate
5
-
. Inner Mask
6
-
. Backing Spring
7
-
. Inlet Fitting
8
-
. Exhale Valve Fitting
9
1032112
. Exhale Valve & O-Ring
10
1027929
.. O-Ring
Pack of 5
11
1025990
. Label
Pack of 5
12
1032524
. Exhale Valve Cover
Pack of 2
13
1017899
. U-Clip
Pack of 5
HD-3 (Page 4) Issue B 10. 2009
