Scott Safety ELSA - Assembling the Test Equipment

FS-2 FLOW-SETTING AND TEST
3. ASSEMBLING THE TEST EQUIPMENT
1. Remove required components (see photograph on page 1 of this Module) from
carrying case and place on a clean, dry, flat work surface.

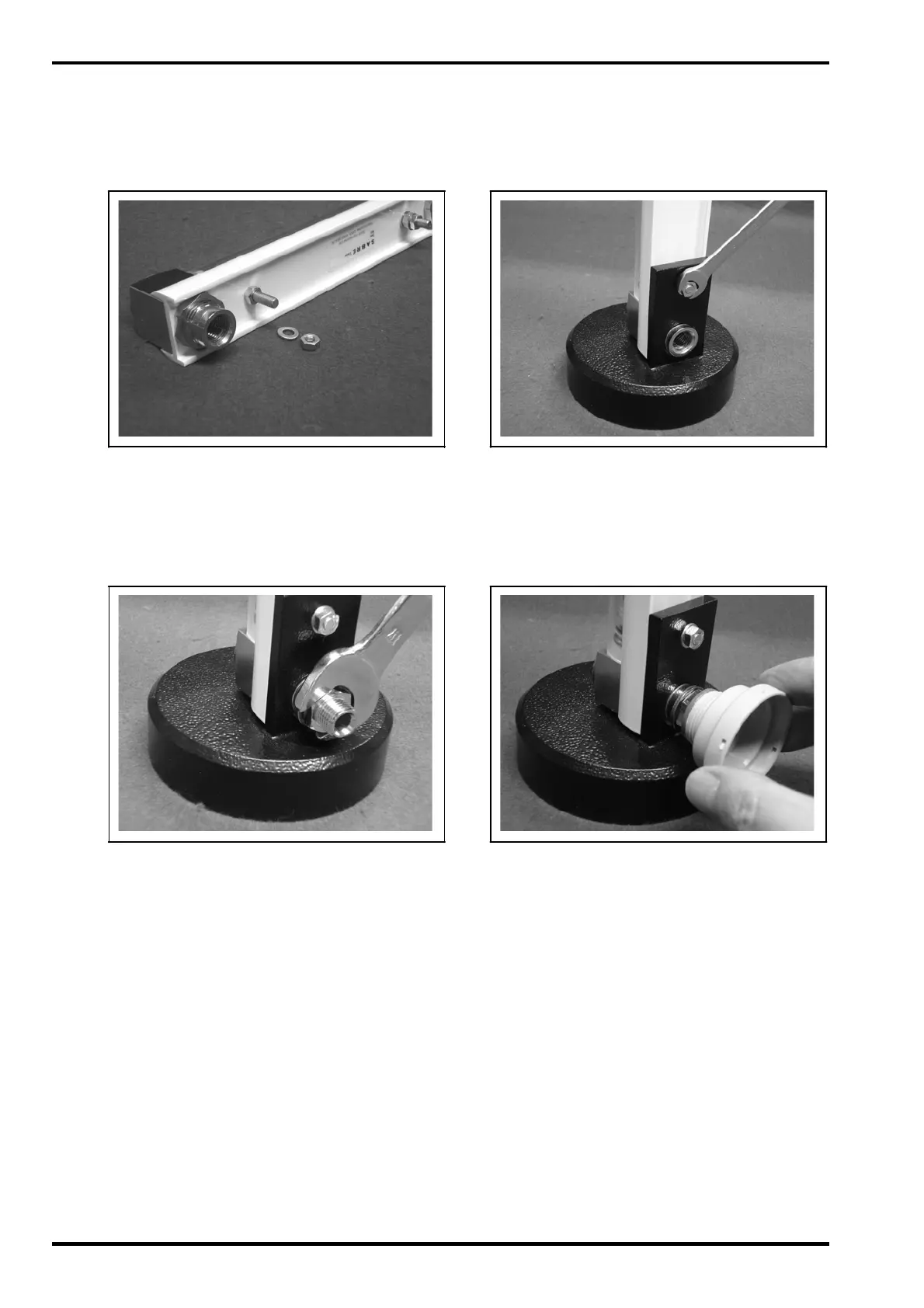

2. Remove fixing nut and washer from lower stud on reverse of flow-meter. Place
fixings aside.
3. Locate flow-meter onto bench stand and secure with washer and nut using 8mm
Spanner. DO NOT over-tighten.
4. Locate bonded seal over adaptor thread and screw adaptor and seal into lower
port on reverse of flow-meter until finger-tight. Secure in position using 17mm
Spanner. DO NOT over-tighten.
5. Attach port for hood connector to adaptor thread until finger-tight. DO NOT
over-tighten.
FS-2 (Page 2) Issue C 12. 2009
