REDUCER/CYLINDER VALVE RCV-2
5.
Locate replacement restrictor (35) into position within contents gauge port,
taking care to ensure that restrictor is seated correctly.
6.
Lightly lubricate replacement O-Ring (36) with Krytox Grease (K) and fit onto
gauge spindle.
7.
Insert contents gauge (34) into reducer body (27) and secure with U-Clip (37).
4.5

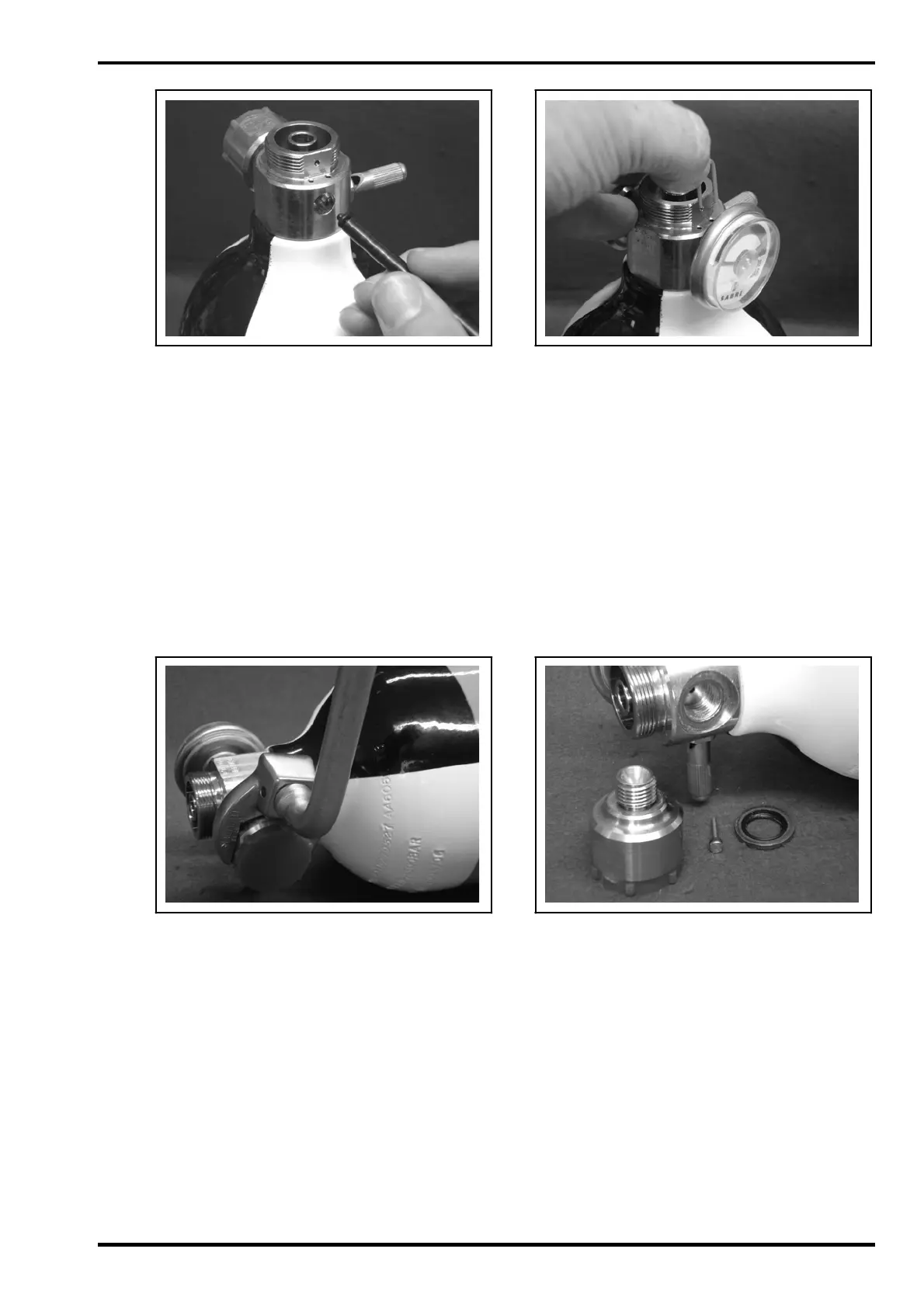

REPLACING THE CHARGING ADAPTOR
Note:
Bracketed numbers in this Section e.g: (4) refer to components depicted in Assembly
Diagrams and Parts Lists 5.1 and 5.2.
1.
Use Crowfoot Spanner (C) with Socket Handle (B) to release charging adaptor
assembly (29). Discard blanking plug (30), charging adaptor body (31), slug and
O-Ring (32) and bonded seal (33).
2.
On replacement charging adaptor assembly (29), lightly lubricate O-Ring on
slug (32) with Krytox Grease (K) and fit into charging adaptor body (31).
Issue D 10. 2009
RCV-2
(Page 9)
