ST144-21 C/Ku-Band TVRO Installation
3-15

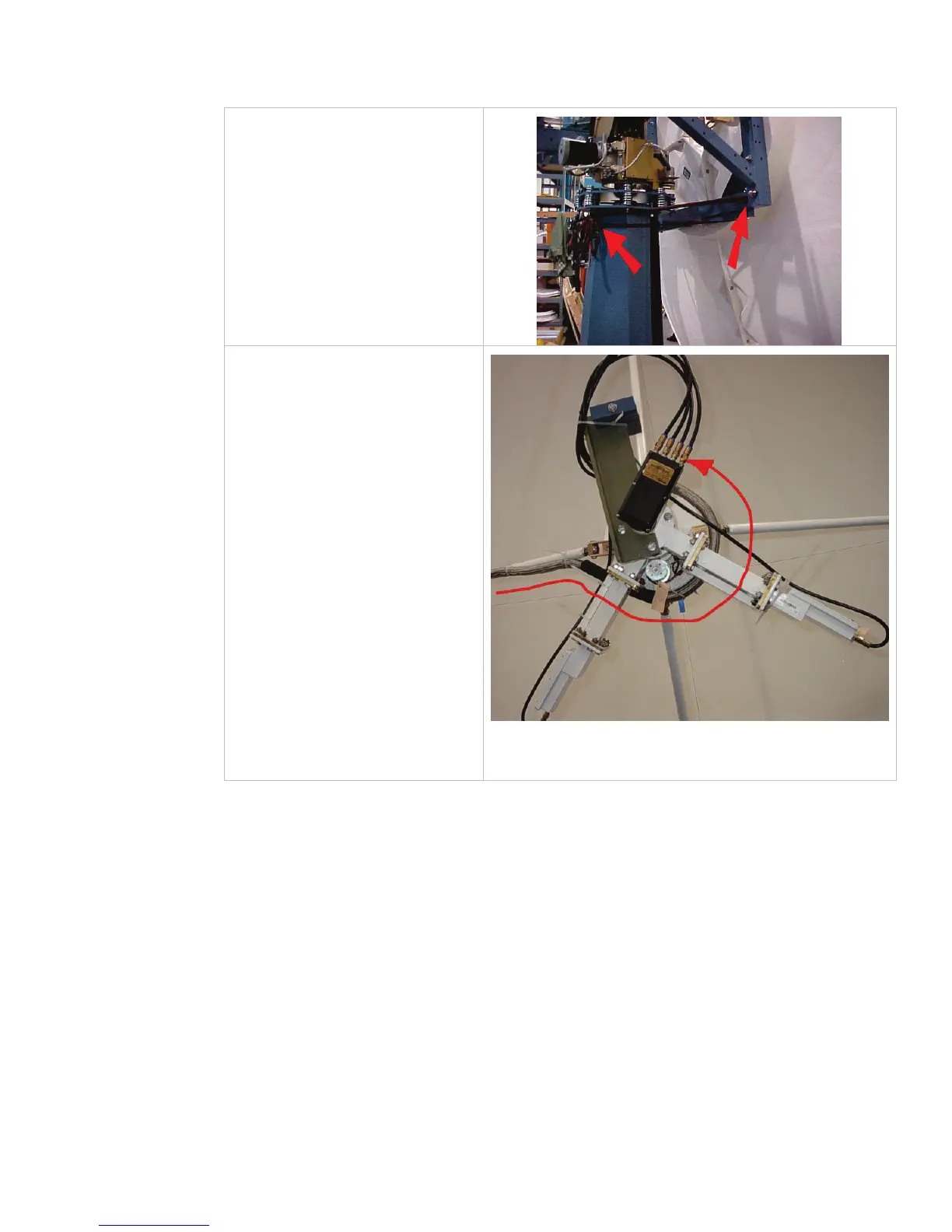

7. Tie the dish down with web
straps to hold it at its lowest
elevation. Tie the straps
through the reflector mount
brace and around the
pedestal.
8. Install the struts on the dish
using the hardware provided
(this will require a ladder to
reach the top strut mounting
hole in the dish). Match the
number sticker on the end of
the strut to the number
sticker near the mounting
hole on the dish. Apply
Loctite to and tighten the
mounting bolts.
9. Install the feed on the struts
using the hardware provided.
Match the number sticker on
the end of the strut to the
number sticker near the
mounting hole on the scalar
plate of the feed. Apply
Loctite to and tighten the
mounting bolts.
10. Loop the reflector harness
and coaxes loosely around
the feed assembly to allow
full polarity rotation of the
feed.
