Installation ST144-21 C/Ku-Band TVRO
3-16

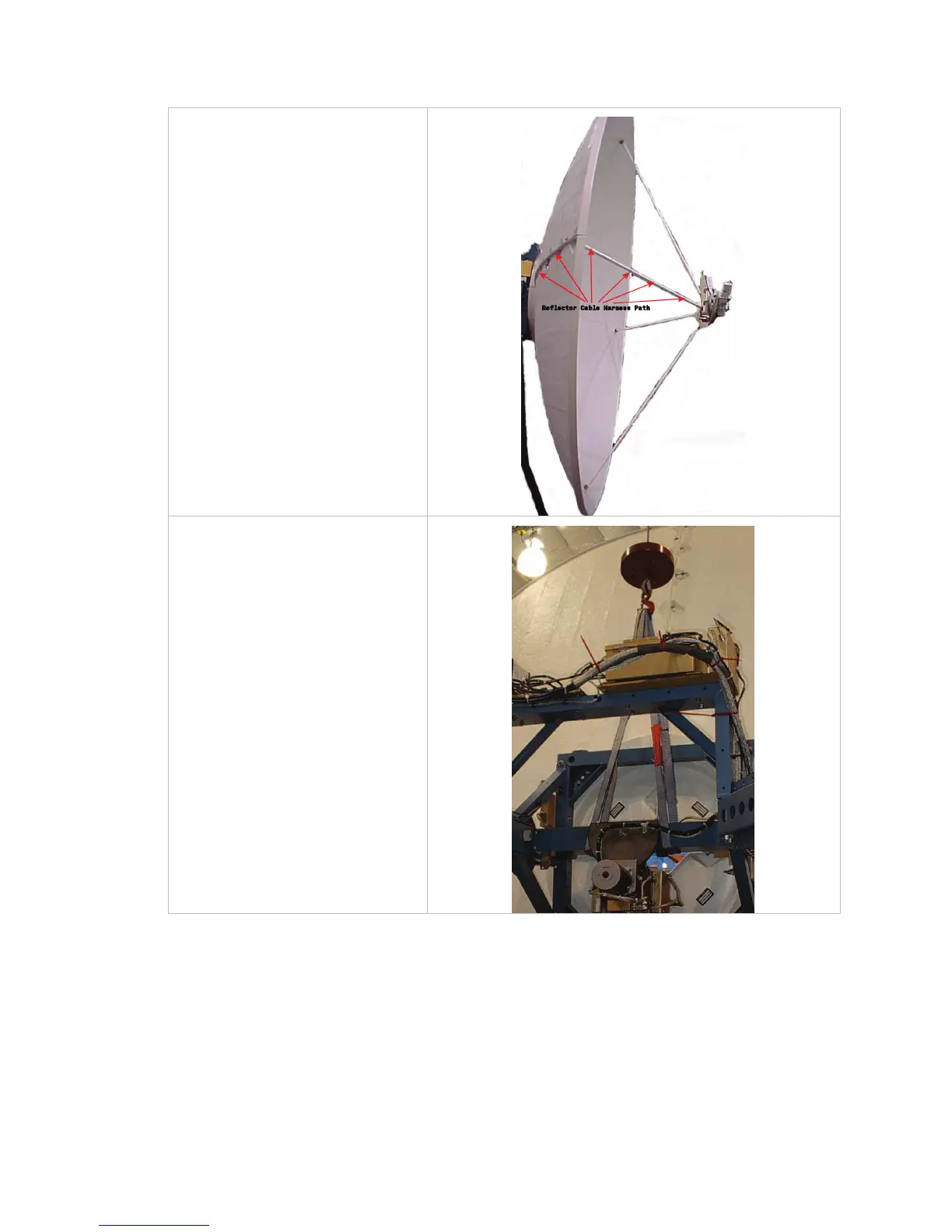

11. Use tie-wraps to attach the
reflector harness and coaxes
along the right feed strut and
the flange bolts on the right
rear of the dish (seen here in
the foreground).
12. Attach the 15 pin connector
on the antenna reflector
harness to the shielded Polang
Aux Relay box.
13. Connect the IF receive coax
cables from the feed to the
pedestal Modem and/or coax
relay/switch panel (according
to the block diagram).
NOTE: Keep the reflector tied
down until the ADE is lifted
aboard and you are ready to
balance the antenna.
14. Loop web straps under the
Cross-Level Beam to prepare
the Pedestal for lift.
