F18J02Y
1

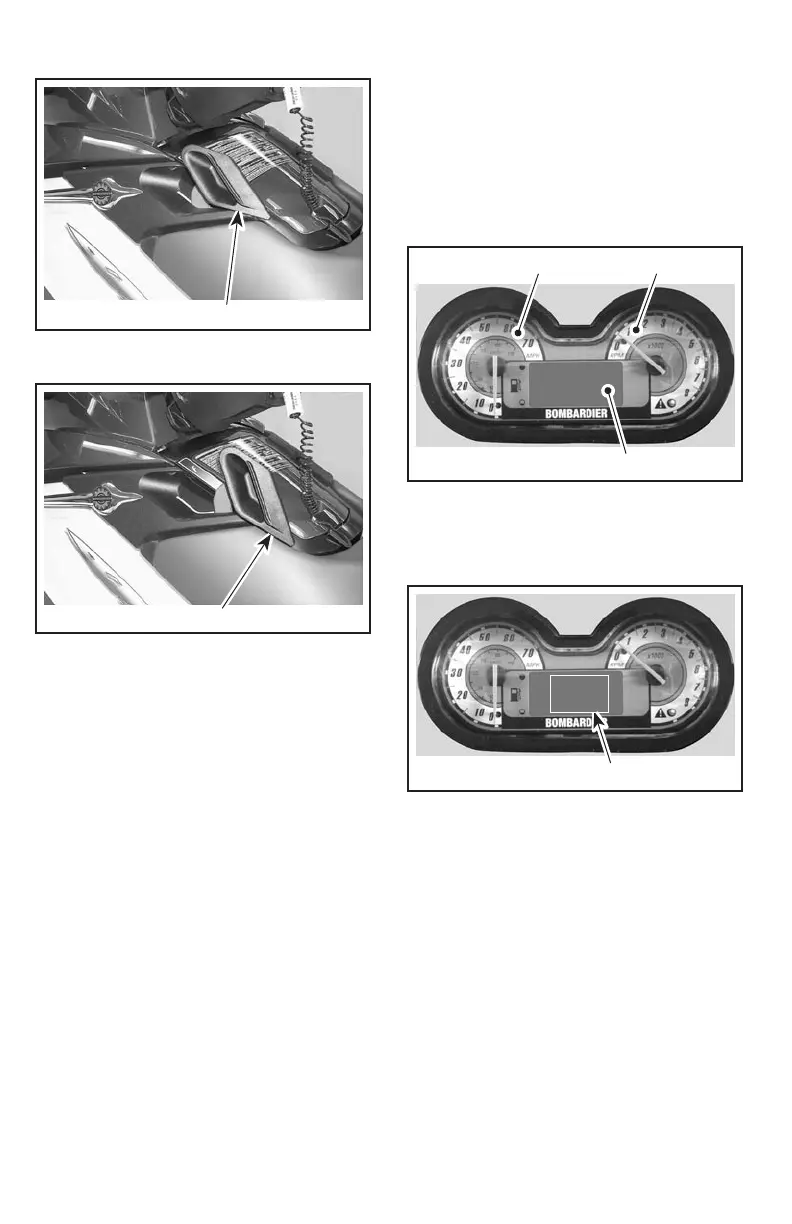

1. Neutral position
F18J03Y
1
1. Reverse position
7) Speedometer
Analog speedometer indicates the
speed of watercraft in miles per hour
(MPH) and kilometers per hour (km/h).
In addition, a digital speedometer can
be displayed in the information center.
See INFORMATION CENTER GAUGE/
BUTTONS below.
The speed sensor mounted on the
transom sends the signal to the
MPEM and the MPEM send it to
the gauge.
8) Tachometer
An analog tachometer indicates the
revolutions per minute (RPM) of the
engine. Multiply by 1000 to obtain the
actual revolutions.
9) Information Center
Gauge/Buttons
This is a multifunction gauge that sup-
plies several real time useful informa-
tion to the driver.
Components Description
F18H08Y
3
1 2
TYPICAL
1. Analog speedometer
2. Analog tachometer
3. Display area
F18H08Z
1
TYPICAL
1. Text and numerical area
36
