35) Battery
All Models except RXP

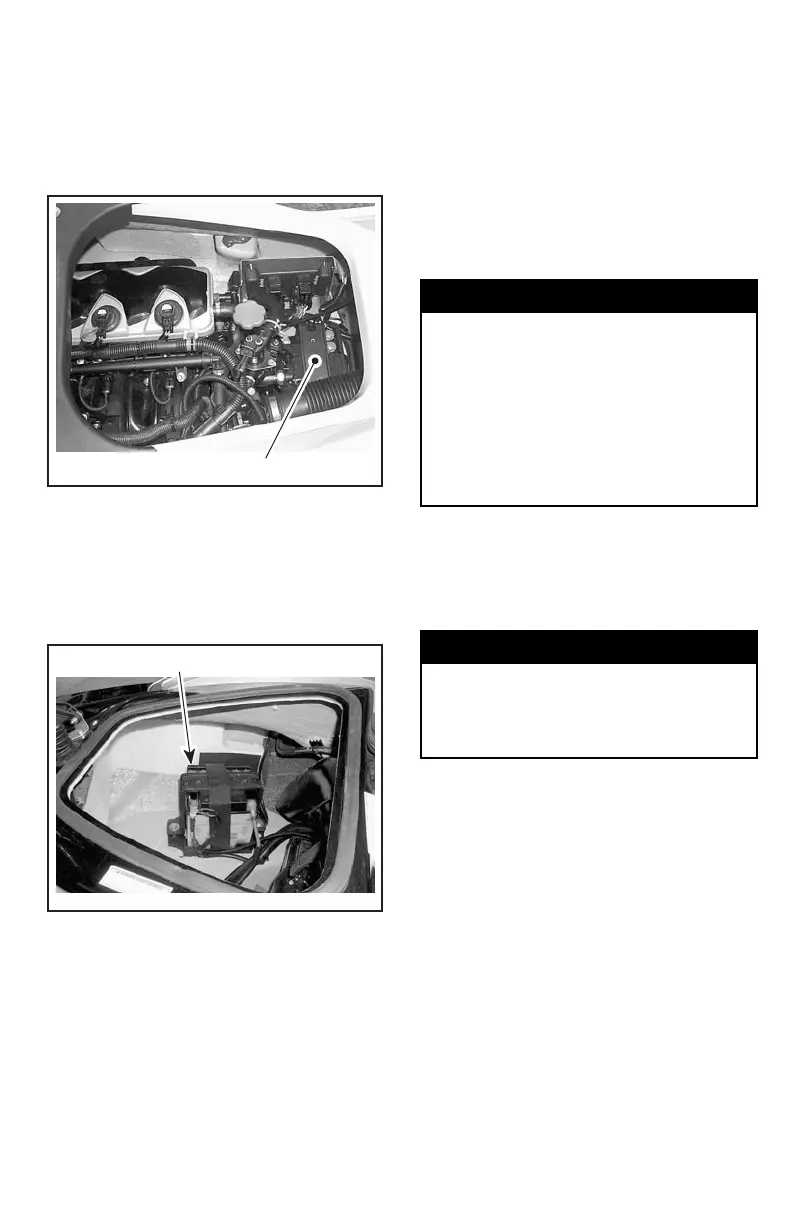

Battery is located under seat in bilge.
Refer to SPECIAL PROCEDURES.
1
F18H0AY
TYPICAL
1. Battery
RXP Models
Fuses are located under basket in front
storage compartment. Refer to SPE-
CIAL PROCEDURES.
F19H02Y
1
1. Battery
36) Side Vanes
Side vanes are part of the Off-Power
Assisted Steering (O.P.A.S.
TM
)sys-
tem.
The side vanes assist the steering sys-
tem.
Models with Sliding Side Vanes
When engine RPM is reduced, the
side vanes are lowered to assist the
steering system. Refer to PRINCI-
PLE OF OPERATION in OPERATING
INSTRUCTIONS section for the de-
scription of the system.
All Models
WARNING
Check handlebar and correspond-
ing side vanes operation before
starting. Never use side vanes
as a supporting point to board
the watercraft or to lift it. Never
turn handlebar while someone is
nearby rear of watercraft. Keep
away from steering moving parts
(nozzle, side vanes, linkage etc.).
37) Engine Oil Dipstick
Located in engine compartment, on
the engine. It indicates the engine oil
level.
WARNING
Certain components in the engine
compartment may be very hot.
Direct contact may result in skin
burn.
_____________________
51
